Lenze EVS9323EP User Manual

Function library
Function blocks

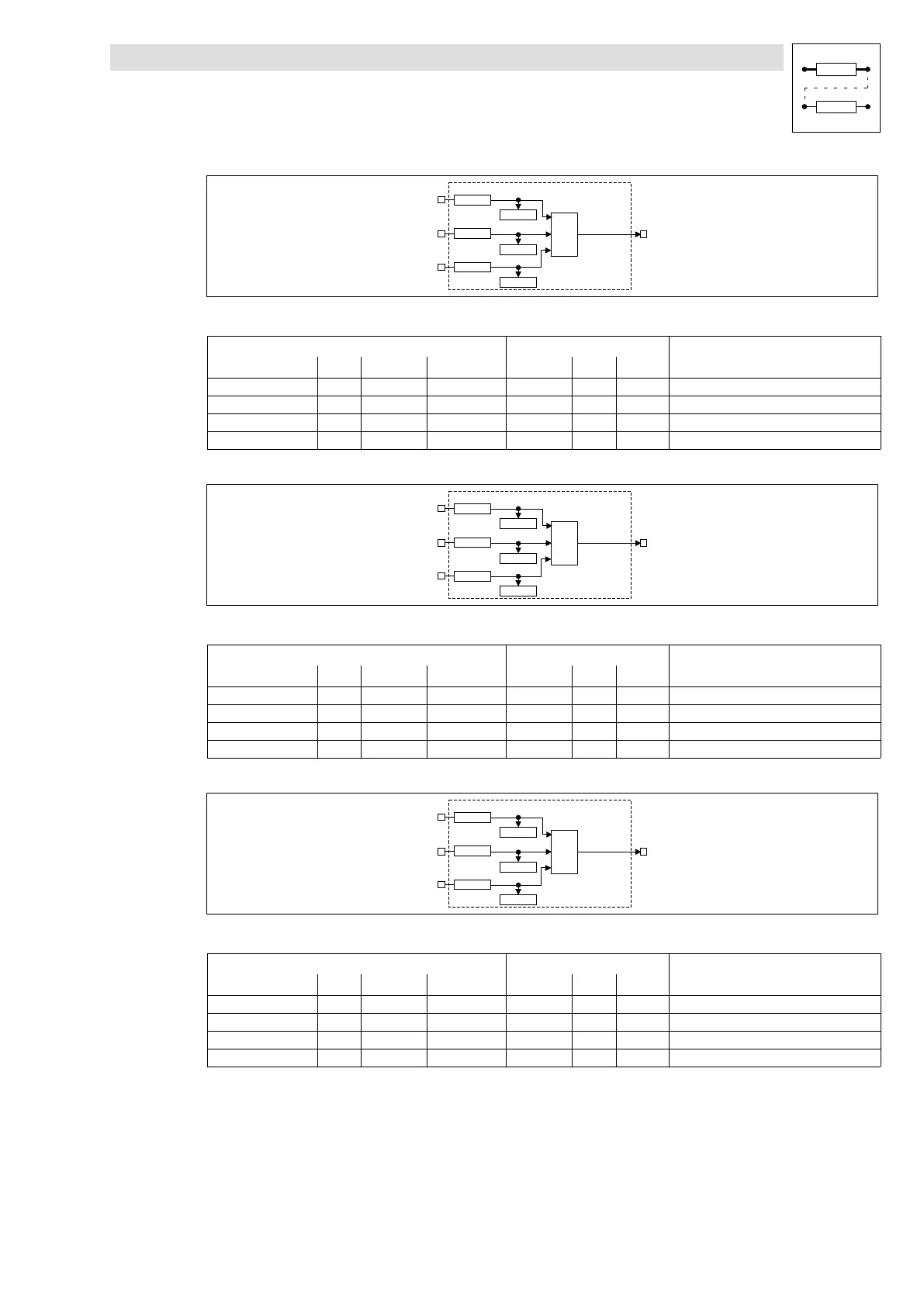

3.5.49 OR operation (OR)
3−231
l
EDSVS9332P−EXT DE 2.0
OR3
1
OR3-IN1
OR3-IN2
OR3-IN3
OR3-OUT
C0835/1
C0835/2
C0835/3
C0834/1
C0834/2
C0834/3
Fig. 3−177 OR operation (OR3)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
OR3−IN1 d C0835/1 bin C0834/1 2 1000 −
OR3−IN2 d C0835/2 bin C0834/2 2 1000 −
OR3−IN3 d C0835/3 bin C0834/3 2 1000 −
OR3−OUT d − − − − − −
OR4
1
OR4-IN1
OR4-IN2
OR4-IN3
OR4-OUT
C0837/1
C0837/2
C0837/3
C0836/1
C0836/2
C0836/3
Fig. 3−178 OR operation (OR4)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
OR4−IN1 d C0837/1 bin C0826/1 2 1000 −
OR4−IN2 d C0837/2 bin C0826/2 2 1000 −
OR4−IN3 d C0837/3 bin C0826/3 2 1000 −
OR4−OUT d − − − − − −
OR5
1
OR5-IN1
OR5-IN2
OR5-IN3
OR5-OUT
C0839/1
C0839/2
C0839/3
C0838/1
C0838/2
C0838/3
Fig. 3−179 OR operation (OR5)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
OR5−IN1 d C0839/1 bin C0828/1 2 1000 −
OR5−IN2 d C0839/2 bin C0828/2 2 1000 −
OR5−IN3 d C0839/3 bin C0828/3 2 1000 −
OR5−OUT d − − − − − −
