Function block library
7-202
SHB9300CRV EN 2.0

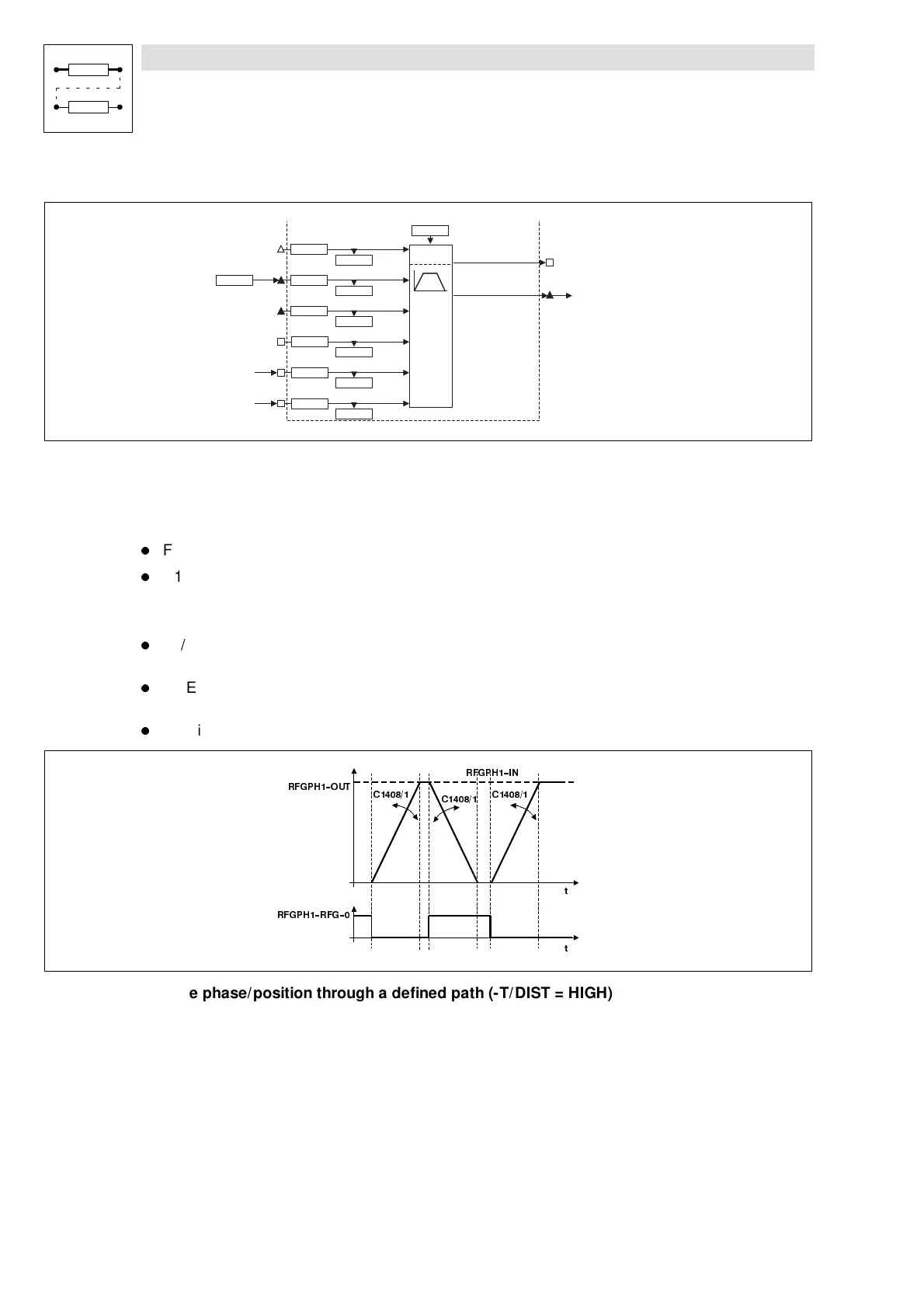

Connection proposal:
RFGPH1-OUT
RFGPH1
C 1408/1
RFGPH1-RFG-0
RFGPH1-IN
RFGPH1-RFG-I=O
CTRL
RFGPH1-DFIN
C 1402/1
C 1400/3
C 1401/3
C 1404/1
C 1403/1
C 1405/1
RFGPH1-DIST
C 1402/2
C 1403/2
RFGPH1-T/DIST
C 1400/2
C 1401/2
RFGPH1-RESET
C 1400/1
C 1401/1
CDATA-XOFFS
FIXED0
C 1476/1
FCO D E
DIGIN1
The inputs not used must not be assigned.
Change phase/position through a defined speed (-T/DIST = LOW)
Inputs for parameter setting:
l
FCODE C1476/1 = 5 m-units (position)
l
C1408/1 = 200.0 rpm
The drive traverses to the target position with a master value speed of 200 rpm.
Control:
l
X5/E1 = HIGH
CDATA-XOFFS is traversed to 5 m-units at n = 200 rpm
l
X5/E1 = LOW
CDATA-XOFFS is traversed to 0 m-units at n = 200 rpm
l
The time required to reach the position results from the physical parameters selected.
W
W
5)*3+5)*
5)*3+,1
5)*3+287
&
&&
Change phase/position through a defined path (-T/DIST = HIGH)
