Configuration
7-279
SHB9300CRV EN 2.0
7.8.1.2 Parameter set transfer
Warning!
The controller is being new initialized because of the parameter set transfer from the PC to the
controller: System configuration and terminal assignments can have changed!
l
Ensure, that your wiring and drive configuration correspond to the settings of the parameter
set.
l
Only use terminal X5/28 or the STOP function of GDC as source for the controller inhibit.
A parameter set transfer is only possible when the controller is inhibited.
With the PC program Global Drive Control complete parameter sets can be transferred from one
controller to another.

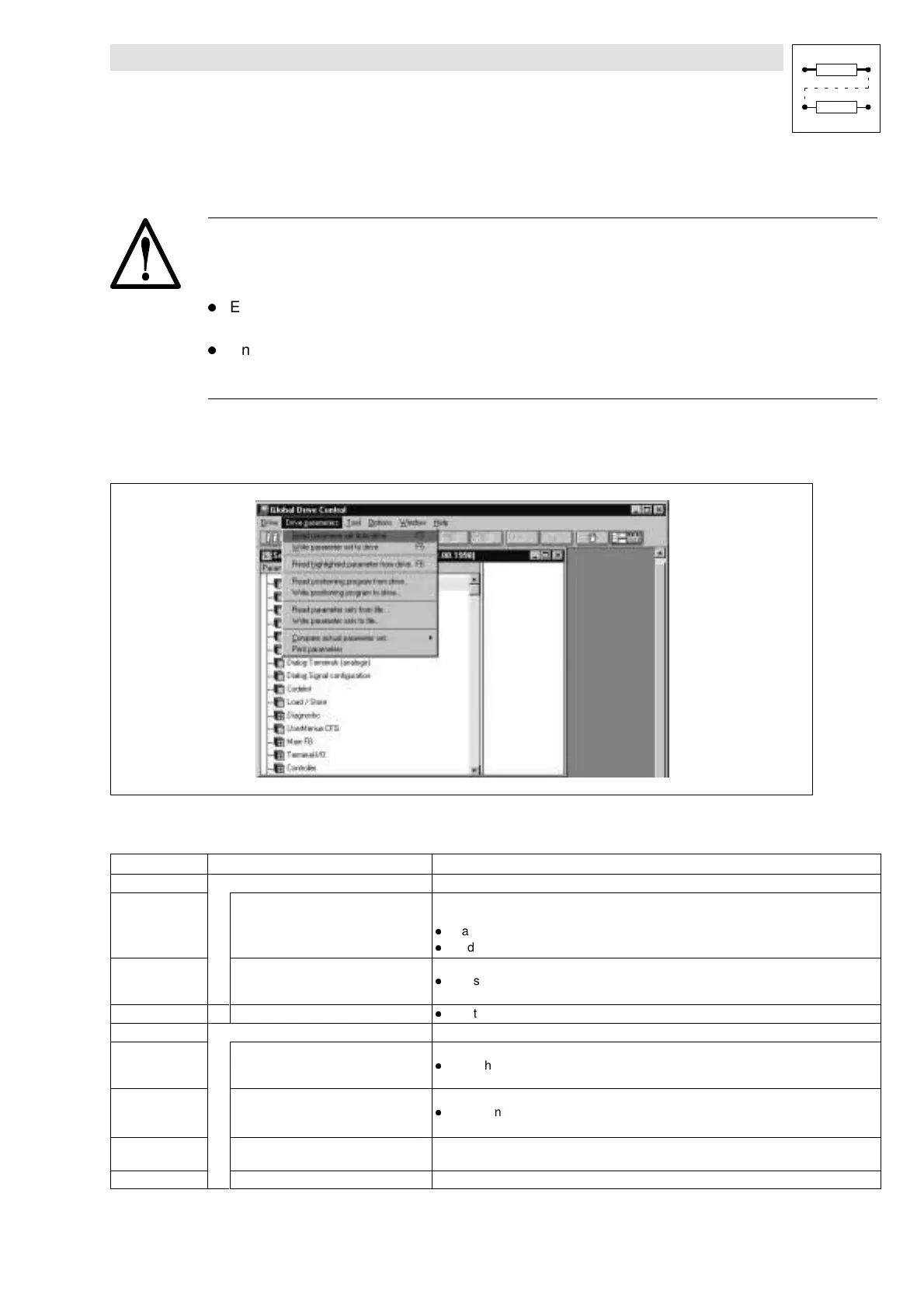

Fig. 7-211 Dialog box “Read parameter set from file”
Step
Command Function
At the PC of the first controller (source):
Select the entry “Read the actual
parameter set from the controller” from
the menu “Control parameters”.
Loads the actual parameter set from the first controller in the PC.
C0002 provides the following possibilities:
l
Loading of factory setting (C0002=0)
l
Loading of customer-specific parameter set (C0002=1)
Select the entry “Write all parameter sets
to file” from the menu “Control
parameters”.
Saves the parameter sets in a file on a hard disk or another data medium.
l
Saves the parameter sets on a diskette.
3.
l
Insert the diskette into the PC’s drive of the second controller.
At the PC of the second controller (target):
4. Select the entry “Read all parameter sets
from file” from the menu “Control
parameters”.
Loads the parameter sets from a file on a hard disk or another data medium.
l
Loads the parameter sets of the first controller from a diskette.
5. Select the entry “Write actual parameter
set to controller” from the menu “Control
parameters”.
Transfers the actual parameter set fromthe PC to the second controller.
l
In the menu “Parameter set management” the data can be saved so that they are protected
against mains failure with C0003=1.
6. Check, whether the wiring and the drive configuration correspond to the settings of the new
parameter set.
7. Deactivate the controller inhibit (terminal X5/28=HIGH).
