Commissioning
5-8

SHB9300CRV EN 2.0

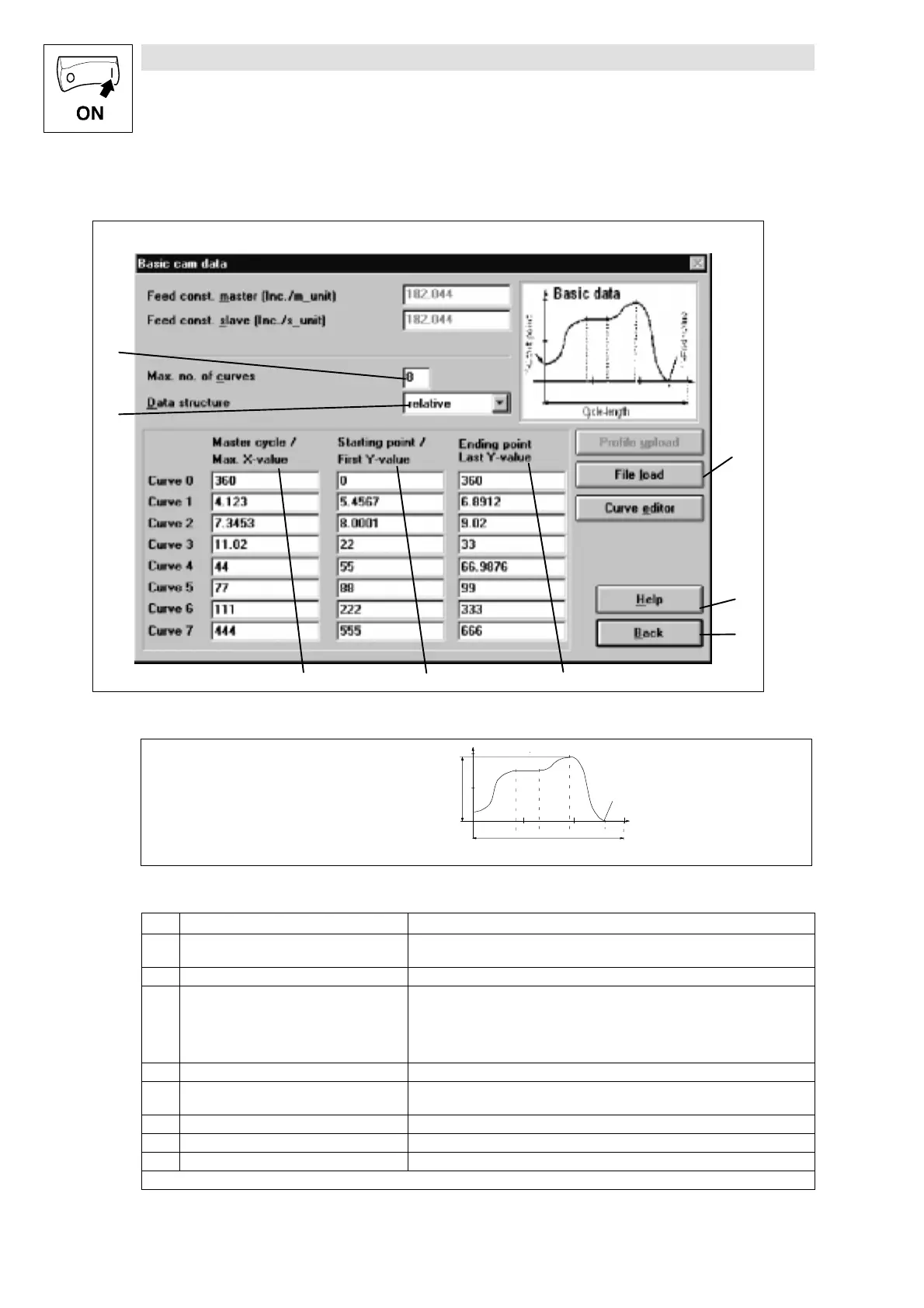

5.6 Basic cam data
1
2
3
4
5
6
7
8
grunddat
Fig. 5-4 Display - basic cam data
Y upper range
value
Motion range
Master value cycle length
Fig. 5-5 Explanation to fig. 5-4
Field
Function Notes
1 Determination of the data model relative data model
absolute data model
2 Number of profiles 1 ... 8
3 Determines the length of a profile in X direction Unit: m_units
STOP
The profile length must be at least 1/4 master encoder revolutions in X
direction (length in X direction > 16384 incr.). .
The incremental profile length is displayed under code C1315/X.
4 Determines the motion range in Ydirection Unit: s_units
5 Determines the upper range value of the profile
in Y direction
Unit: s_units
6 Branches to the dialog ’cam import’ See chapter 5.7.2
7 Starts on-line help
8 Back to the previous dialog
All fields not used are not relevant for commissioning. For further information see on-line help.
