Mechanical installation
Important notes
4
19
Lenze ¯ MA 12.0019 ¯ 6.1
4 Mechanical installation
4.1 Important notes
¯ The transport weights can be found in the shipping documents.
¯ Use lifting devices for the transport!
¯ Before transport
– check that all component parts are safely mounted,
– fasten all transport aids (eye bolts or support plates).
} Danger!
Danger due to toppling or falling loads!
¯ The payload of the hoists and load handling devices must at least
correspond to the weight of the load.
¯ Secure the load handling device so that it won’t slip from its position.
¯ The load must be secured in such a way that it cannot topple or fall
down.
¯ Do not stay under a pending load!
4.2 Transport
( Stop!
Observe load carrying capacity!
Standing beneath floating loads is prohibited!
} Danger!
The motors attached to the gearbox are partially equipped with eyebolts.
They are exclusively determined for mounting/dismounting the motor to
the gearbox and must not be used for the complete geared motor!

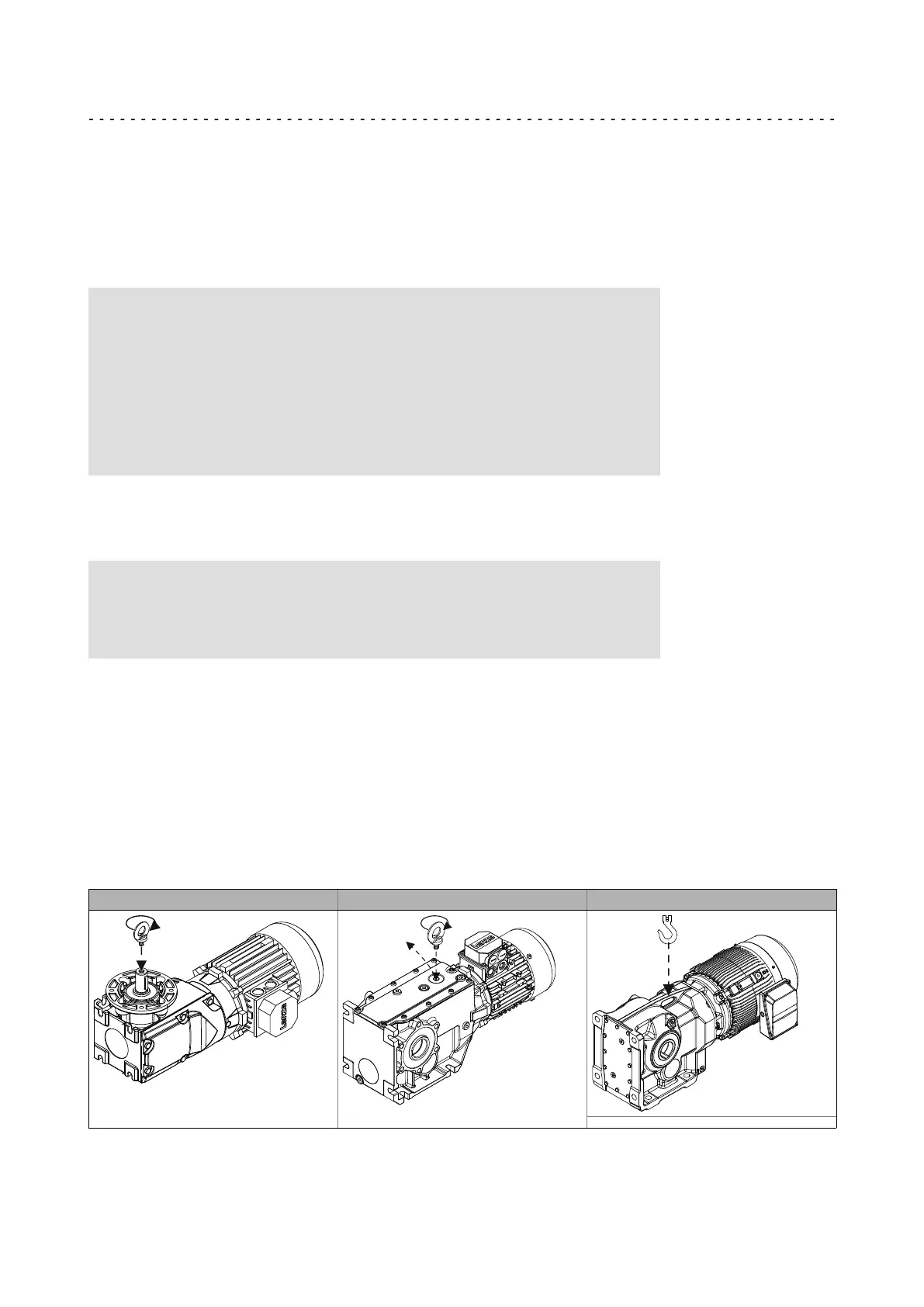

For the transport thread positions, please refer to the illustrations below. As standard,
gearboxes of size G50BB145 ... G50BB243 (g500−B45 ... g500−B4300) feature a transport
thread in the gearbox cover for eye bolts complying with DIN 580. The eye bolt is not
included in the scope of supply!
For the smaller drives with solid shafts, the output shaft thread can be used or the drive
is transported using a securing rope. The rope should be wrapped around the round area
between the motor−gearbox interface.
Transport gearboxes with three−phase AC motor
The gearboces of sizes G50BB280 ... G50BB320 can be lifted at the ear that is cast on to
the housing.
