Lenze G50AB045 - Mounting of Motors to Gearboxes with an Adapter and a Flexible Coupling

Mechanical installation
Mounting of g500 short/servo adapters with clamping connection
Maximum permissible load at the motor adapter
4
28
Lenze ¯ MA 12.0019 ¯ 6.1
Drive size
Distance L
Tab
of
the motor
Gearbox type
IEC NEMA
g500−B8000
G50BB280
g500−
B13000
G50BB313
g500−
B20000
G50BB320
[mm] Maximum permissible force F
M Tab
[N]
H
T
51
A
B
14 115 1540 − −
55 18 145 2220 2210 −
55 − 145 2500 2490 2450
61 21 190 4490 4480 4420
65 25 250 5230 5230 5230
66 28 250 4500 4500 4500
70 − 300 3720 3720 3720
76 32 300 6980 7100 7100
81 36 400 6200 6880 6880
82 − 400 − 11400 11400
4.3.6 Mounting of g500 short/servo adapters with clamping connection
Important notes
¯ The transmission is made in a force−fitting manner via a clamping connection.
Greases, oils and other substances which reduce the friction factor reduce the
torque to be transmitted which is why these should be avoided in the connection.
¯ The motor shaft diameter must be designed with fit k6.
¯ The motor centering diameter must be designed with fit j6.
¯ With regard to smooth running tolerance of the motor shaft, concentricity of the
centering and axial runout of the mounting flange, the motor must fulfil the
requirements according to DIN 42955 R (reference values for smooth running <
0.025 mm; axial runout and concentricity < 0.05 mm).
4
5

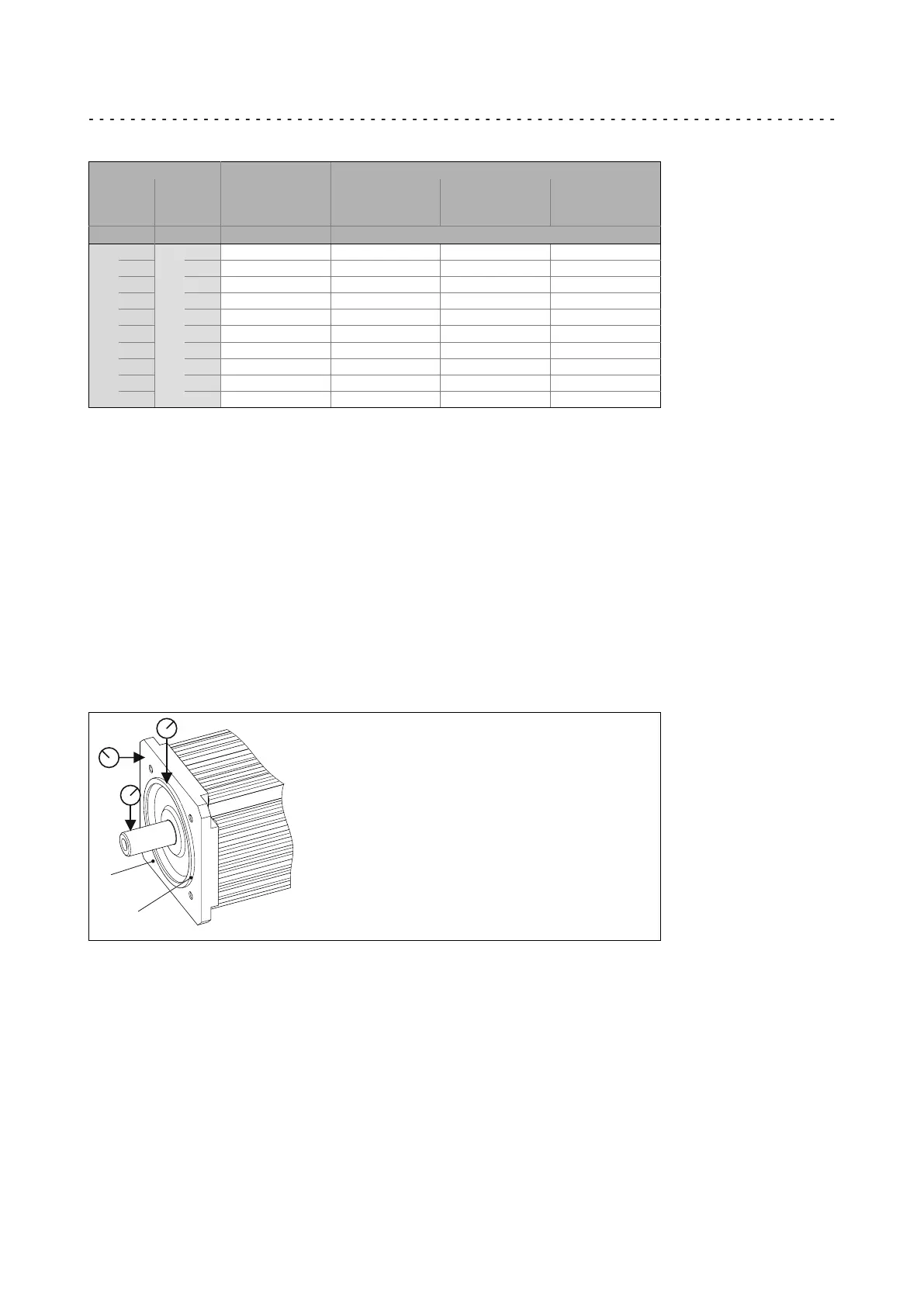

Fig. 4 Measurement of the surfaces of smooth running, axial runout and concentricity
4 Motor flange
5 Centering
