EDS84DMOTPNET EN 2.0 - 11/2011 L 67
Communication manual 8400 motec PROFINET
Diagnostics
Diagnostic data

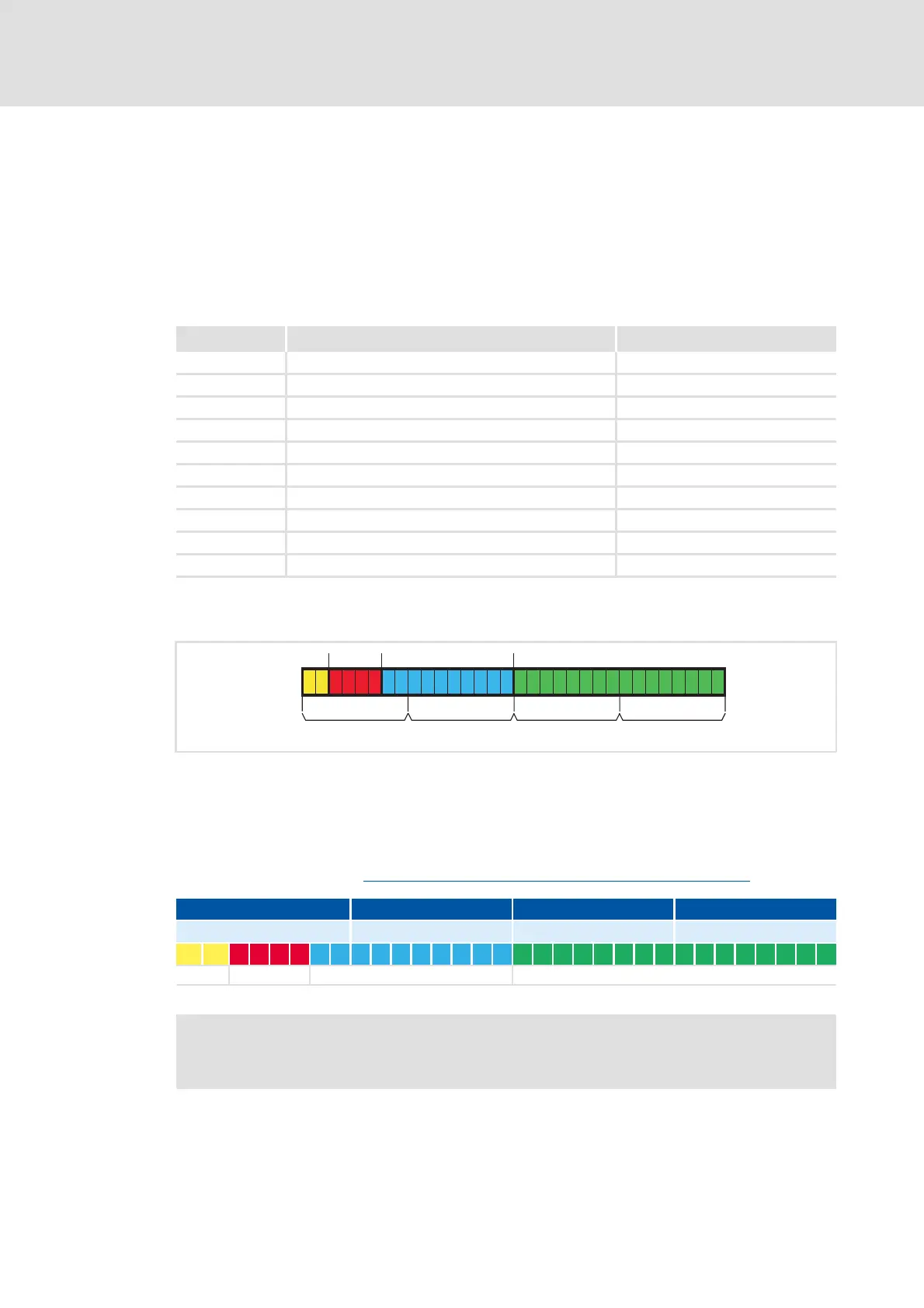

11.3 Diagnostic data
The I/O device sends an alarm message to the I/O controller to signalise the diagnostic
data below.
Errors and warnings in the Inverter Drive 8400 motec are sent to the IO controller as
extended diagnostic messages.
The diagnostic data can be displayed using the hexadecimal representation of the
Siemens S7 engineering tool.
Error code of the Inverter Drive 8400 motec
Bytes 29 ... 32 of the diagnostic message contain the error code.
In the logbook and in code C00165, the error number is shown in the following syntax
in order to facilitate the readability:
[error type].[error subject area no.].[error ID]
Example: error message "PROFINET: Data_Exchange status quit [0x01bc6531]
"
Bytes Meaning Value [hex]
1 ... 6 Diag. block header 0x0010 001C 0100
7 ... 8 Alarm type 0x0001 (diagnosis)
9 ... 12 API 0x0000 0000
13, 14 Slot number 0x0001 / 0x0002
15, 16 Subslot number 0x0001
17 ... 20 Module ID ID according to module
21 ... 24 Submodule ID ID according to module
25, 26 Alarm specifier 0xB000
27, 28 User structure identifier 0x0001
29 ... 32 Error code of the Inverter Drive 8400 motec
Byte 32 Byte 31 Byte 30 Byte 29
0x01 0xbc 0x65 0x31
0 0 0 0 0 0 0 1 1 0 1 1 1 1 0 0 0 1 1 0 0 1 0 1 0 0 1 1 0 0 0 1
Reaction Instance ID Module ID Error ID
Software manual/»Engineer« online help for the "Inverter Drive 8400 motec"
Detailed information on the error codes is provided here.
Byte 32 Byte 31 Byte 30 Byte 29
Bit
162526
31
015
29
30
