Feedback and temperature monitoring connecon

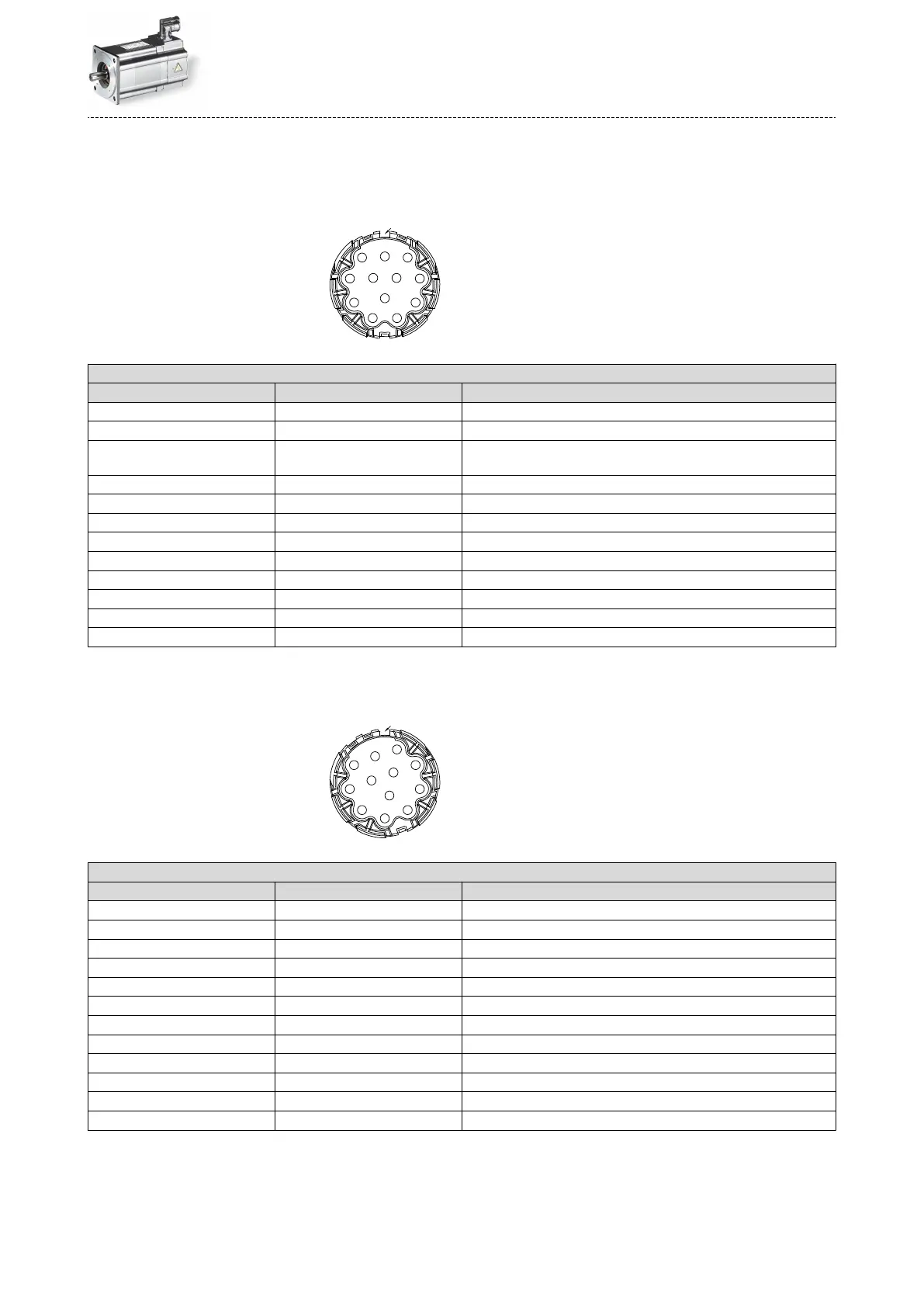

ICN-M23 connector assignment
Resolver
1
2
3
4
5
6
7
8
9
10
11
12
P
Code 0°
ICN M23 for resolvers
Contact Name Meaning
1 +Ref Transformer windings
2 -Ref Transformer windings
3 +VCC ETS
Supply: Electronic nameplate (Only for motors and inverters that support
this funcon)
4 +COS Stator windings cosine
5 -COS Stator windings cosine
6 +SIN Stator windings sine
7 -SIN Stator windings sine
8 Not assigned
9 Not assigned
10 Schirm Encoder housing shield
11 + Temperature monitoring: PT1000
12 - Temperature monitoring: PT1000
ICN-M23 connector assignment
Incremental and SinCos absolute value encoder Hiperface©
1
2
3
4
5
6
7
8
9
10
11
12
P
Code 20°
ICN M23 for incremental and SinCos absolute value encoder Hiperface
Contact Name Meaning
1 B Track B / +SIN
2 A¯ Track A inverse /-COS
3 A Track A / + COS
4 +UB Supply +
5 GND Mass
6 Z¯ Zero track inverse /-RS485
7 Z Zero track / + RS485
8 Not assigned
9 B¯ Track B inverse/-SIN
10 Schirm Encoder housing shield
11 + Temperature monitoring: PT1000
12 - Temperature monitoring: PT1000
Electrical installaon
Motor connecon
Connecon via ICN connector
