Mechanical installation
Plug connection
16
H1_MechINS-verbindung-buchse-motorstecker
Lenze • MA 33.0003 • 5.0
Plug connection
Theconnectorscomplywithvibrationandshockclass3M6asspecifiedinIEC/EN60721-3-3.
This applies to all power, encoder and fan connector boxes.
Stop!
ƒ Cable connector s with screwed connection:
– Always use with the O-rings supplied.
ƒ Cable connectors with a SpeedTec bayonet lock:
– Remove O -ring and dispose of it.

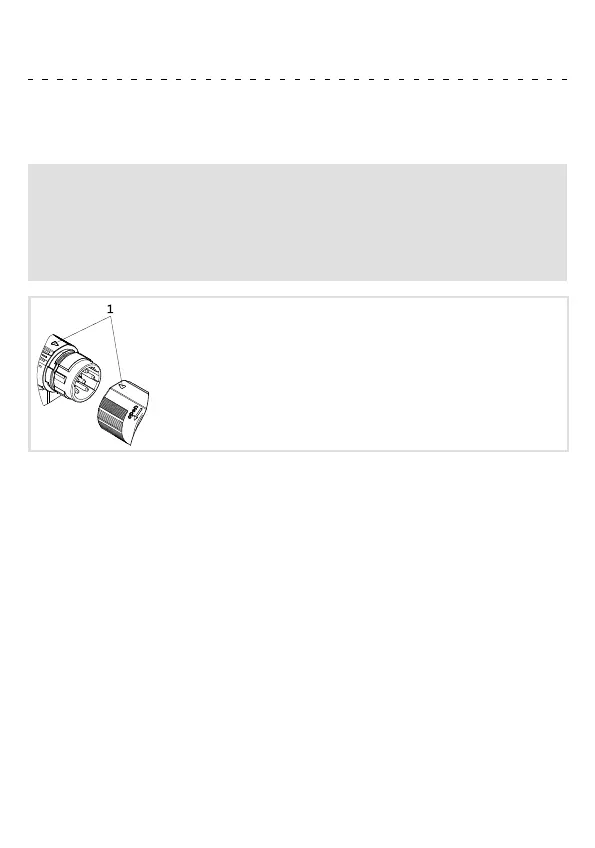

When connecting the cable connector to the motor connector, make sure that the aids to
orientation (pos. 1) are facing each other. Only then trouble-free operation is ensured.
ƒ Tighten the box nut of the cable connectors!
ƒ Never disconnect cable connectors whilst voltage is being applied! Otherwise the
connector may be destroyed! Inhibit the inverter before disconnecting the plugs!
