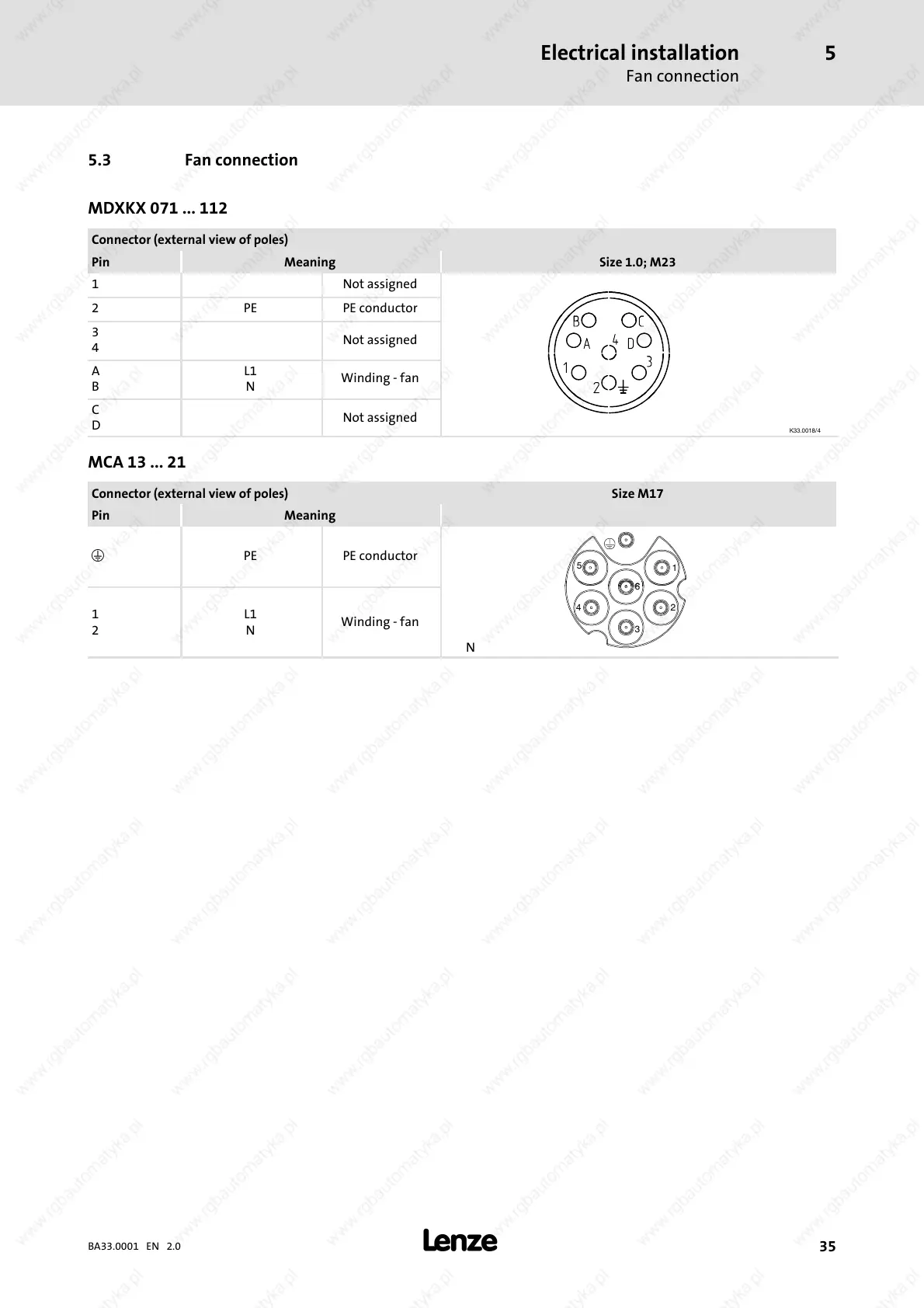

5.3 Fan connection
MDXKX 071 ... 112
Connector (external view of poles)
Pin Meaning Size 1.0; M23
1 Not assigned
2 PE PE conductor
3
4
Not assigned
A
B
L1
N
Winding - fan
C
D
Not assigned
K33.0018/4
MCA 13 ... 21
Connector (external view of poles) Size M17
Pin Meaning
J
PE PE conductor
5
6
1
1
2
L1
N
Winding - fan
6
2
3
4
N
