Installation
Mounting steps
MP 1000(s) DVI / MP 1050(s) DVI
4
32
MA_ELx0xx DE/EN/FR/ES/IT 2.0
4.4 Mounting steps
4.4.1 MP 1000(s) DVI / MP 1050(s) DVI
How to perform the installation:
1. Cut the mounting cutout into the control board ( 31).
2. Check that the gasket under the front panel is located correctly.
3. Place the device in the mounting cutout and secure it against
falling−down with one hand.
4. Fit all screw clamp fixings as explained below:

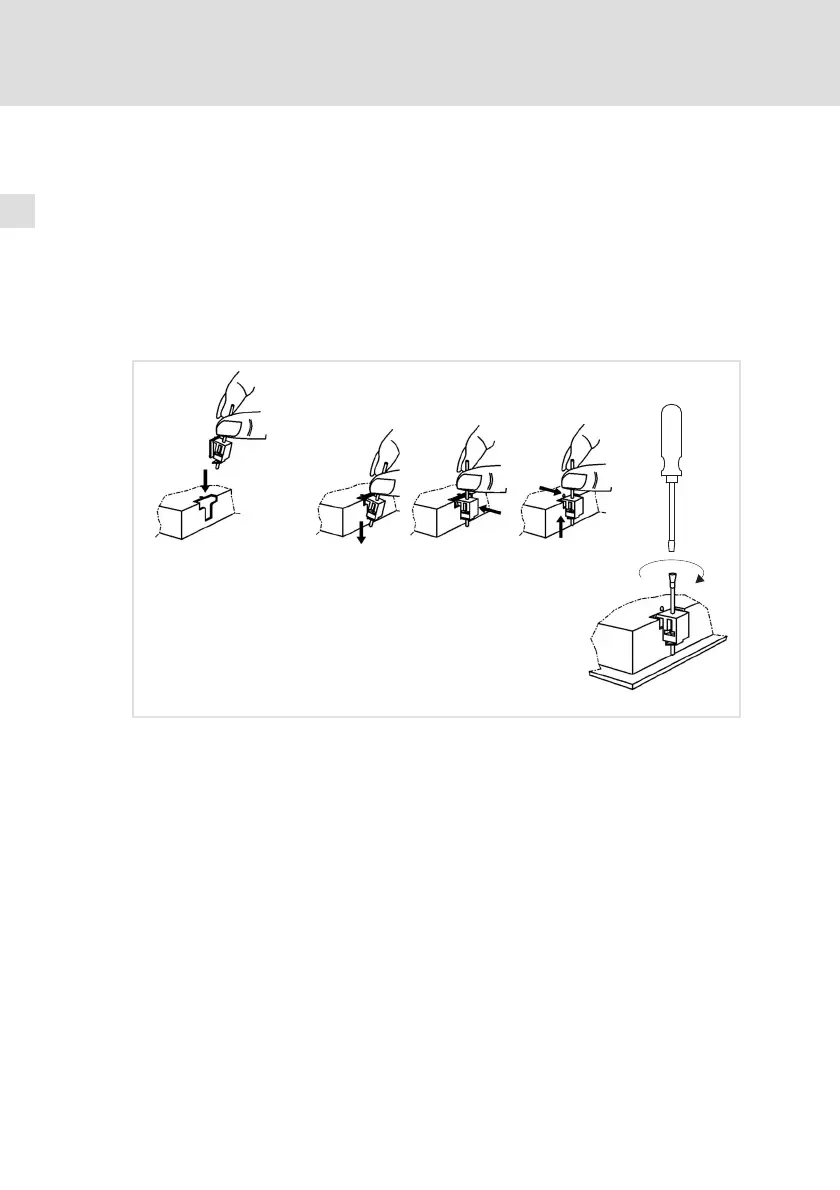

ELx7xx−011
– Insert the screw clamp fixing into the slot in the housing of the device
(see above figure).
– Press the screw clamp fixing downwards, tilt it towards the housing
and check that it has firmly snapped into place.
– Tighten the screw clamp fixing hand−tight with a screwdriver.
5. Check that the device is securely located in the mounting cutout and that
the front panel gasket is located correctly.
– If necessary, realign the device/gasket.
– If the gasket is not located correctly, protection class IP65 is not
achieved on the front of the device!
