The Optional Remote 3rd Hole Slide — Part No. 030571
Mounting Instructions
Parts List
1. Drilll a 9/32" hole in the upper handle assembly as shown
in the sketch on the opposite page.

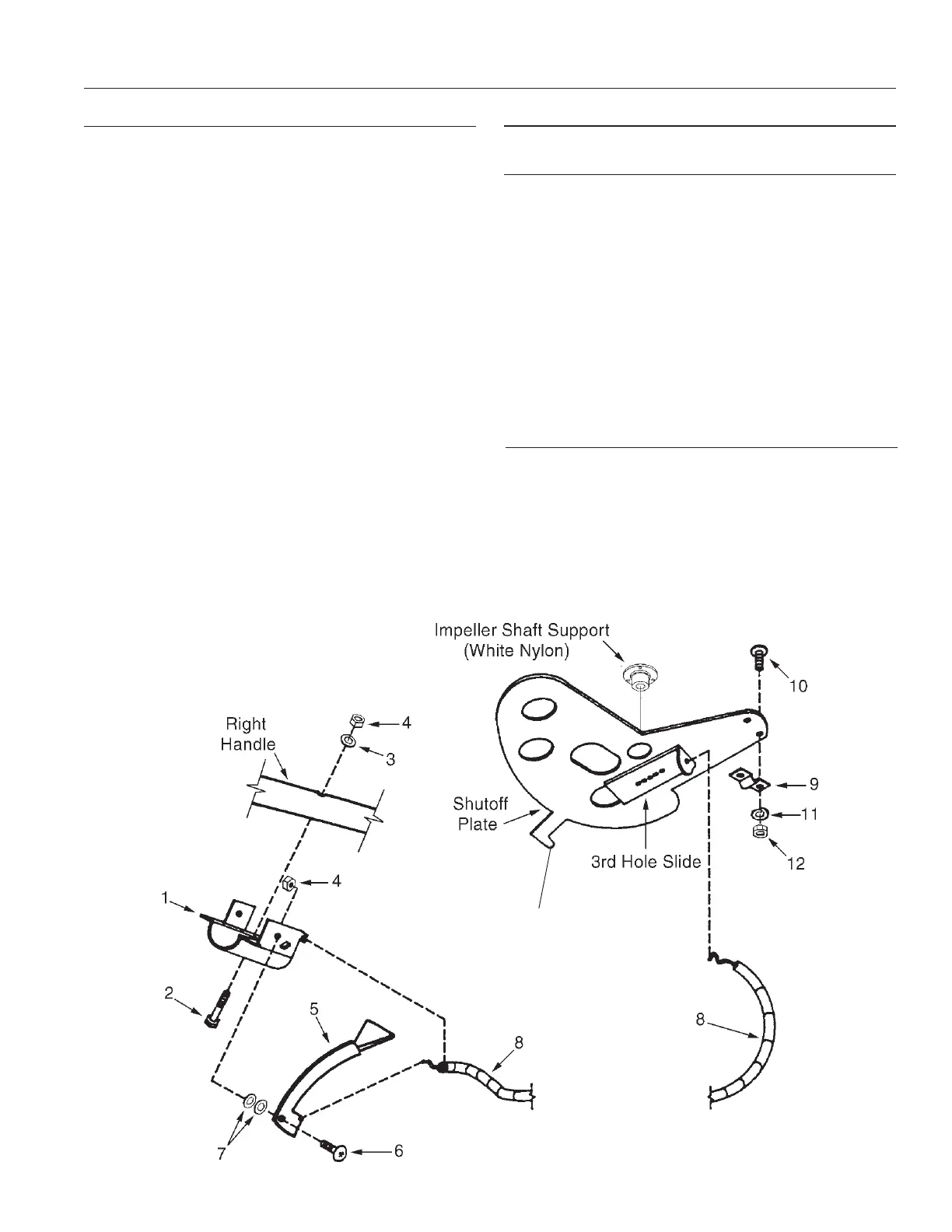

2. Mount the dual lever bracket (Ref. 1) to the right handle
using one machine screw (Ref. 2), one flat washer (Ref. 3)
and one hex nut (Ref. 4) as shown below.
3. Mount the dual remote lever (Ref. 5) to the dual lever
bracket (Ref. 1) using one machine screw (Ref. 6), two
nylon flat washers (Ref. 7) and one hex nut (Ref. 4) as
shown below.
4. Slide the control cable (Ref. 8) through the hole in the
dual ..........................................................................
remote lever and the cable housing into the fork of the
dual lever bracket and pinch the forks around the cable
groove.
5. With the dual remote lever pushed all the way forward
attach the other end of the control cable to the hole in the
3rd hole slide. Push the slide fully closed and mount the
cable housing to the shut off plate using the cable clamp
(Ref. 9), two machine screws (Ref. 10), two 1ock washers
(Ref. 11) and two hex nuts (Ref. 12) as shown below.
6. Work the dual remote lever back and forth to be sure that
you are getting the full open and full closed positions of
the 3rd hole slide. If not, loosen the cable clamp and
adjust the cable.
Ref. Item No.
No. No. Description Used
1 030418 Bracket, Dual Lever ........................................ 1
2 060047 Machine Screw............................................... 1
3 060033 Flat Washer 1/4 .............................................. 1
4 060036 Hex Nut, 1/4-20 Nylock ................................. 2
5 030416 Lever, Dual Remote ....................................... 1
6 060057 Machine Screw............................................... 1
7 018628 Flat Washer, 1/4 Nylon .................................. 2
8 030450 Control Cable .................................................1
9 020511 Cable Clamp ................................................. 1
10 031686 Machine Screw............................................... 2
11 060083 Lock Washer #8............................................. 2
12 060056 Hex Nut, #8-32 ............................................... 2
13 060054 Shut Off Plate Assembly ................................. 1
020491 Remote Shut Off Plate .................................... 1
020492 Slide Lever ..................................................... 1
