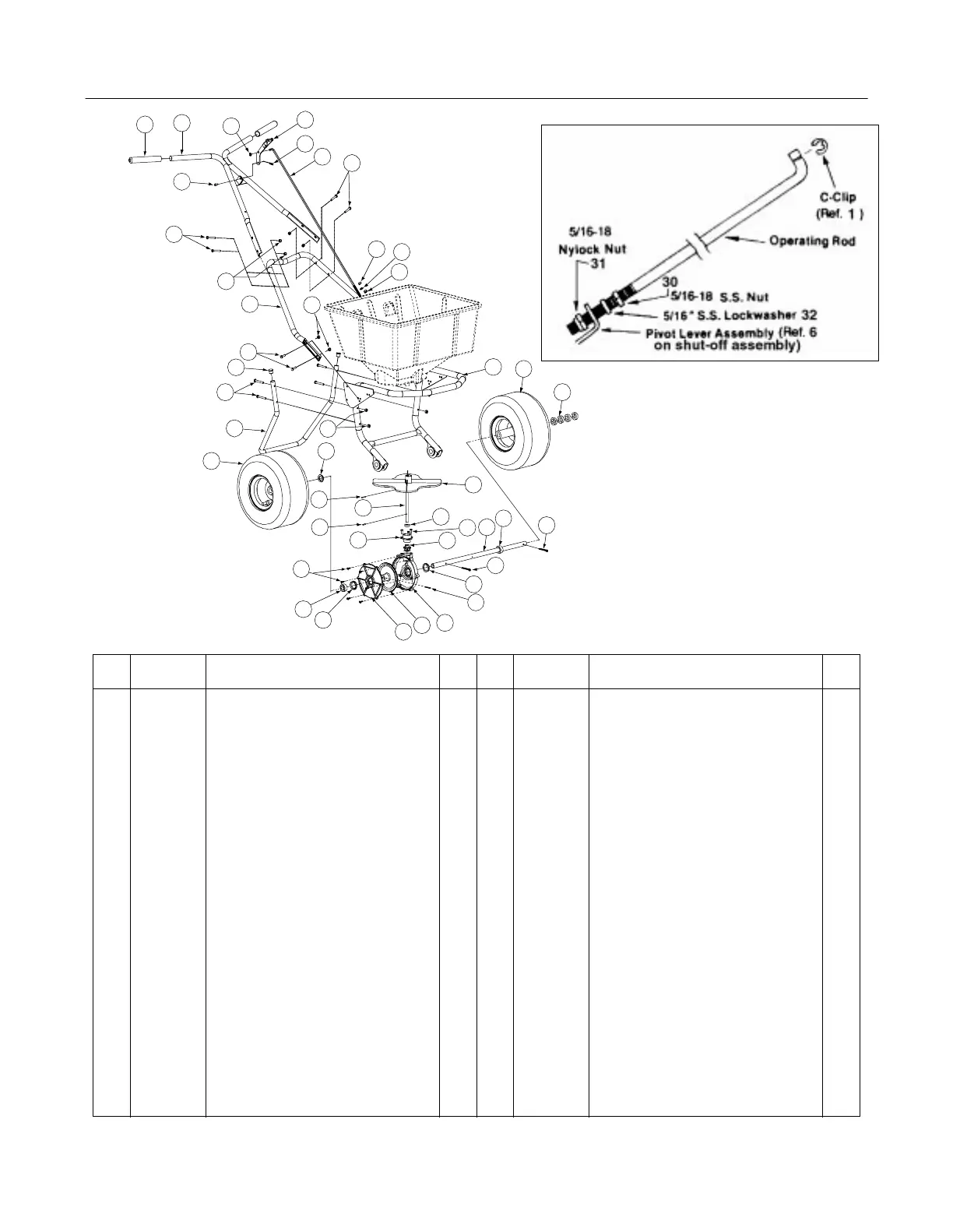

80LB Frame Assembly - Figure 2 and Parts List
Ref.
No.
Part
No. Description Qty.
Ref.
No
Part
No Description Qty.
1 010171 Retainer Clip “C” 1 22 705552 Hex Cap Screw, 1/4-20 x 2 4
2 018901 Drive Wheel 1 23 060031 Clevis Pin, 1/4 x 1/2 1
3 019790 Plastic Idler Wheel 1 24 060032 Cotter PIn, 3/32 x 1 1
4 030317 Impeller 1 25 -- -- --
5 030382 Impeller Shaft 1 26 060034 Operating Lever, Rubber Handle
Assembly
1
6 030383 Axle 1 27 060036 Lock Nut Nylon Insert, 1/4-20 12
7 030384 Gearset Oil Seal 1 28 031167 Hex Cap Screw, 14-20 x 1.5 4
8 030385 Gearset Seal 2 29 060069 Roller Pin, 1/8 x 7/8 1
9 030415 Tap Screw 3 30 060071 Hex Lock Nut, 5/16 1
10 030446 Handle Grip 2 31 060072 Nut, Nylon Insert, 5/16-18 1
11 030591 Gearset Housing 1 32 060073 Lock Washer, 5/16 1
12 030592 Gearset Cover 1 33 060080 Plastic Plug, Epoxy 2
13 030593 Gearset Cap 1 020913 Plastic Plug, SS 2
14 030594 Gearset Bevel Gear 1 34 060017 Flat Washer, 1.25 x .776 x .062 SS 4
15 030595 Gearbox Pinion Gear 1 35 700129 Washer Hex Screw 6
16 031168 Hex Cap Screw, 1/4-20 x .75 4 36 704875 Handle Assembly, SS 1
705637 Handle Assembly, Epoxy 1
17 060012 Cotter Pin, 3/16 x 1-3/4 2 37 704876 Lower Handle, SS 1
705640 Lower Handle, Epoxy 1
18 060014 Collar Axle w/set screw Assembly 2 38 704878 Support Leg, SS 1
705643 Support Leg, Epoxy 1
19 060017 Flat Washer, .06, .776, 1.25 6 39 706035 Operating Rod Lever 1
20 060019 Roller Pin, 5/32 x 1-1 1 40 706129
Frame/Bearing Assembly, SS
1
21 060022 Roller Pin, 1/8 x 5/8 1 706128
Frame/Bearing Assembly, Epoxy
1
10
23
37
33
38
2
19
4
7
15
9
40
29
21
5
13
18
35
8
34
3
6
17
17
8
20
11
14
12
18
27
22
16
27
28
36
1
26
39
24
31
32
30
27
28
Operating Lever
Rod Assembly
(Ref. 39)
To Next Page
