4

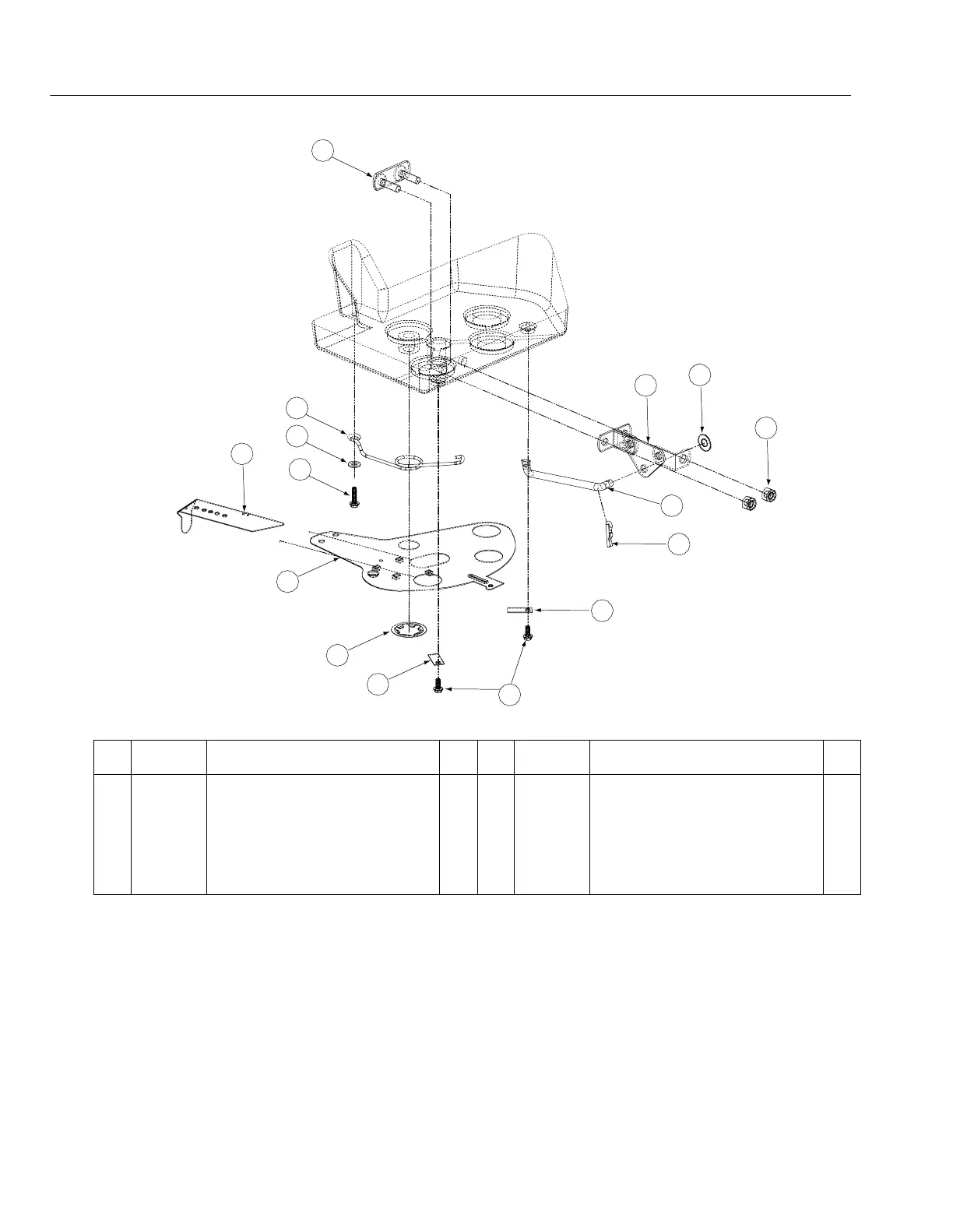

Shut-Off Assembly - Figure 3 and Parts List
Ref.
No.
Part
No. Description Qty.
Ref.
No
Part
No Description Qty.
1 020491 Shut-off Plate Remote 1 8 704186 Spring Clip 1
2 020492 Slide Lever 1 9 704539 Two Hole Weldment Plate 1
3 060032 Cotter Pin, .072 x 1.12 Lg 1 10 704955 Plate Shut-off Clip 2
4 060033 Flat Washer, 1/4” 1 11 704956 Plate Shut-off Spring 1
5 060036 Nylock Nut, 1/4-20 2 12 705630 Flat Washer 1
6 060060 Pivot Lever Assembly 1 13 705631 Index Washer Hex Screw, 8 x 3/8 2
7 060061 Pivot Lever Rod 1 14 705632 Index Washer Hex Screw, 8 x 5/8 1
9
11
12
14
2
1
8
10
13
10
7
3
6
4
5
To Next Page
