Leslie 2101 - Stereo Separation with Stationary-Units

































































































































































































































































ROT
BASS
LEVEL
HORN
LEVEL
POWER
FROM
Leslie #2101/2102

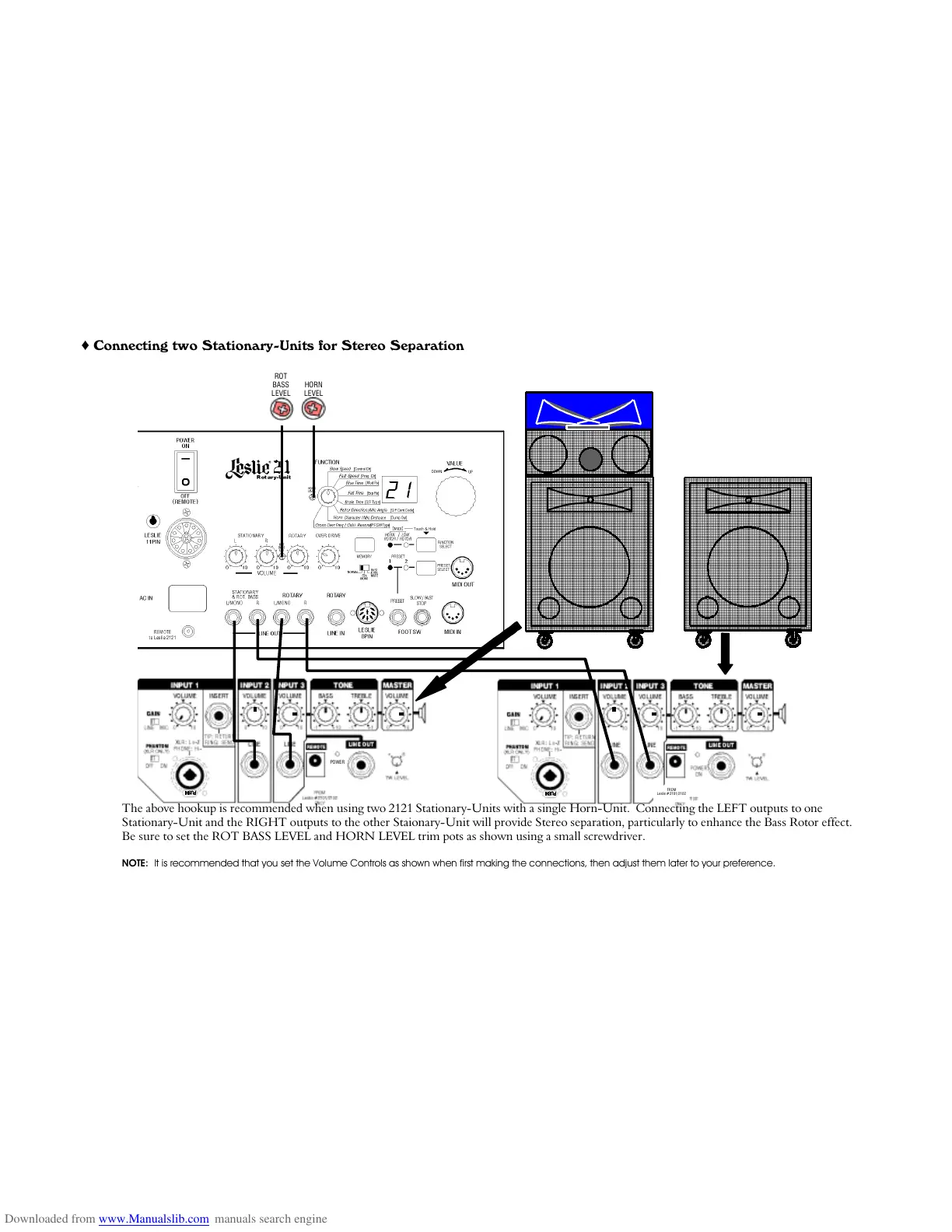

Ë Connecting two Stationary-Units for Stereo Separation
The above hookup is recommended when using two 2121 Stationary-Units with a single Horn-Unit. Connecting the LEFT outputs to one
Stationary-Unit and the RIGHT outputs to the other Staionary-Unit will provide Stereo separation, particularly to enhance the Bass Rotor effect.
Be sure to set the ROT BASS LEVEL and HORN LEVEL trim pots as shown using a small screwdriver.
NOTE: It is recommended that you set the Volume Controls as shown when first making the connections, then adjust them later to your preference.
