13.2 Interference emission
The device corresponds to CISPR 11/ EN 55011 Group 1 and Class B.
Groups
• Group 1: All devices that do not belong to Group 2 (lab equipment, devices for industrial process
measurement and control)
• Group 2: All devices that intentionally generate HF energy for material processing / modification
(microwave and induction ovens, electric welding equipment)
Classes
• Class A: Industrial systems in which the 230V supply network is provided by means of a separate
transformer (from medium voltage)
• Class B: Commercial, industrial locations and residential areas that are supplied by the public 230V
network (low-voltage network) or are connected to it
13.3 Dimensions

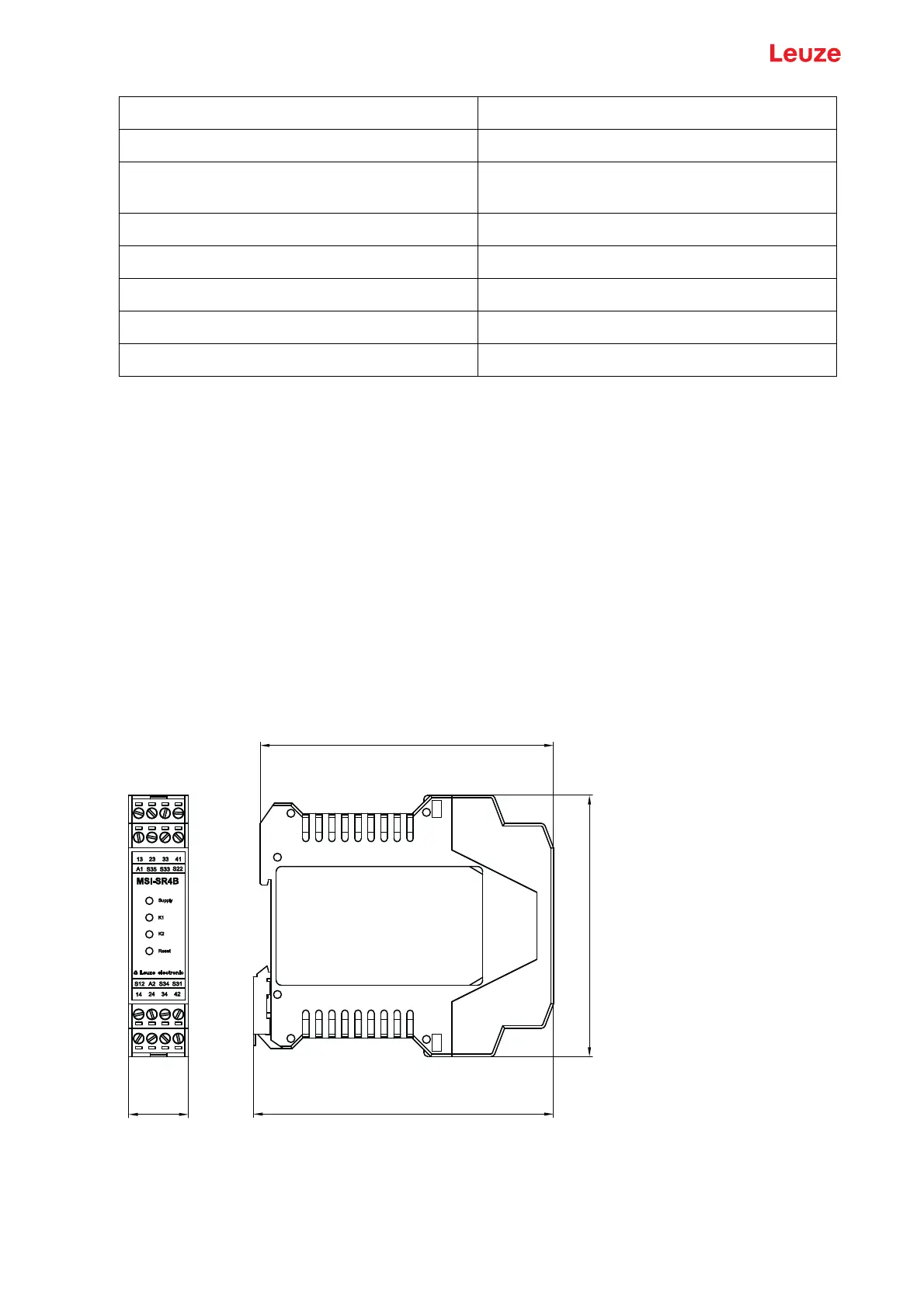

Figure 13.1: Dimensions MSI-SR4B-01
Overvoltage category acc. to VDE 0110 part 1 III for rating voltage 300 V AC
Degree of contamination 2
Degree of protection Housing IP 40
Terminals IP 20
Permissible wire gauge screw terminals 0.2…2.5 mm
2
(AWG 24-12)
Permissible wire gauge spring-cage terminals 0.2…1.5 mm
2
(AWG 24-16)
Maximum tightening torque 0.52 Nm
Dimensions (H x W x D) see chapter 13.3 "Dimensions"
Weight 170 g
99.0
114.1
111. 5
22.5
