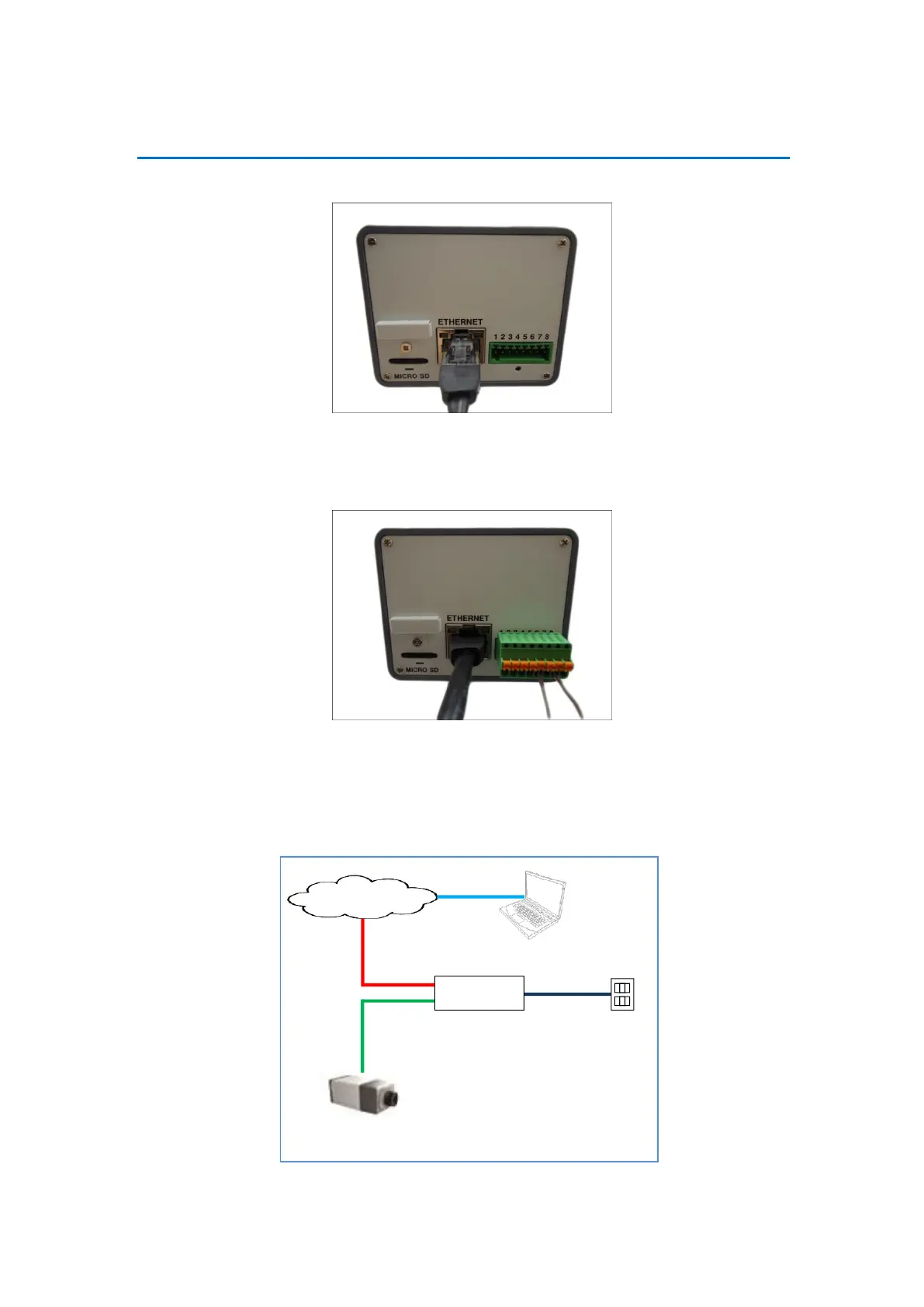

Step 5: Connect the Cable(s)
1. Connect the network cable to the Ethernet port of the camera.
2. If necessary, connect audio input/output or DI/DO devices to the camera. See How to
Connect DI/DO and Audio Devices (Optional) on page 10 for more information.
3. Connect the other end of the network cable to a switch or injector. Then, connect the switch
or injector to a network, PC and a power source. See Power-over-Ethernet (PoE) connection
example below.
Network
AC Power
Source
PoE Injector /
PoE Switch
Power Cable
Ethernet Cable
Ethernet Cable
(Data + Power)
Ethernet Cable
(Data)
Camera
