LevelOne FCS-3054 - Page 20

Hardware Manual
20

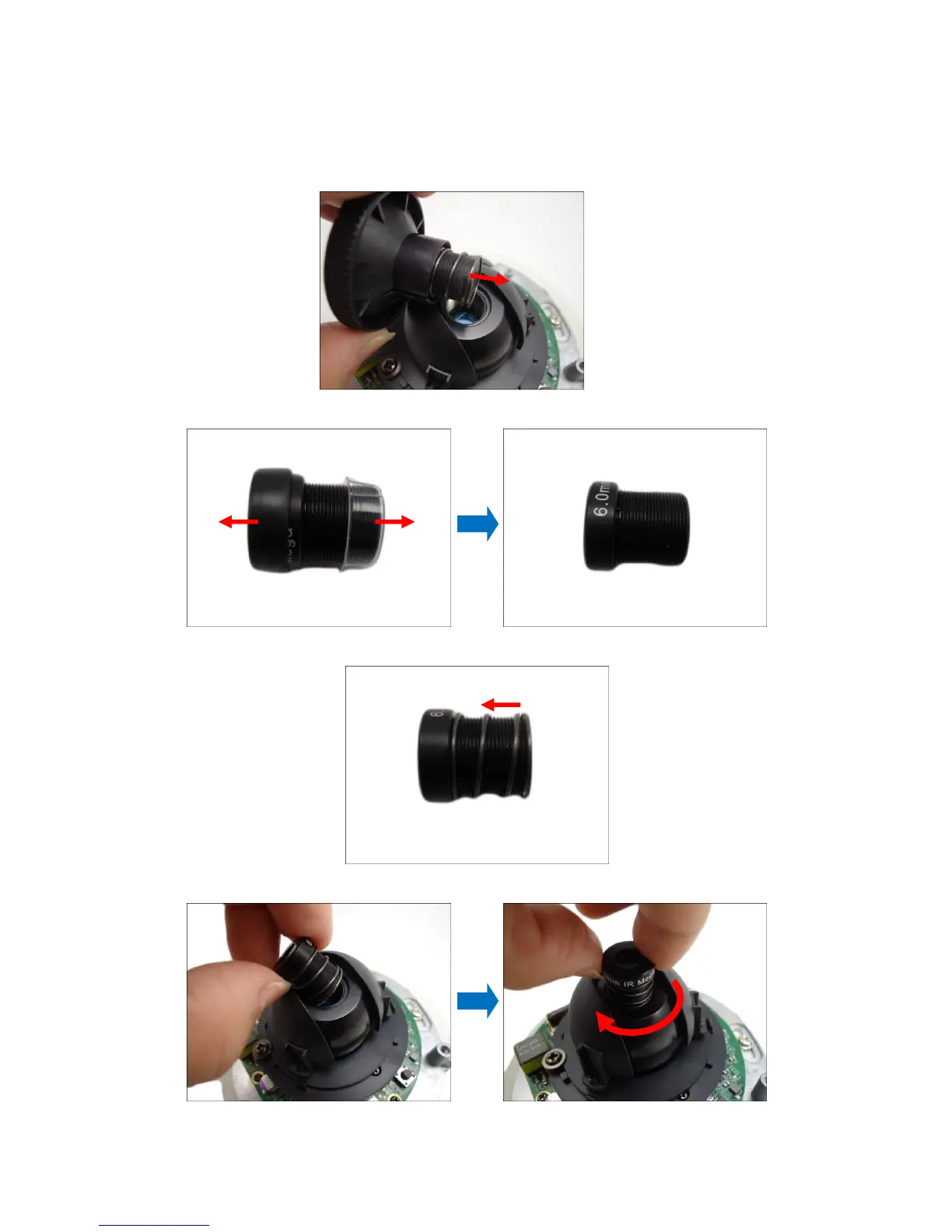

3. When the lens comes off, remove the spring and remove the bundled lens from the lens
focus tuner.
4. Remove the transparent plastic from the replacement lens.
5. Attach the spring to the replacement lens.
6. Continuously rotate the replacement lens to attach it to the camera.
