Hardware Manual
19
How to Replace the Lens (for FCS-3065 only)
For wider viewing angle, the bundled lens can be replaced with the optional IR-compatible lens.
Contact your sales agent to purchase.
To replace the lens, follow the procedures below:

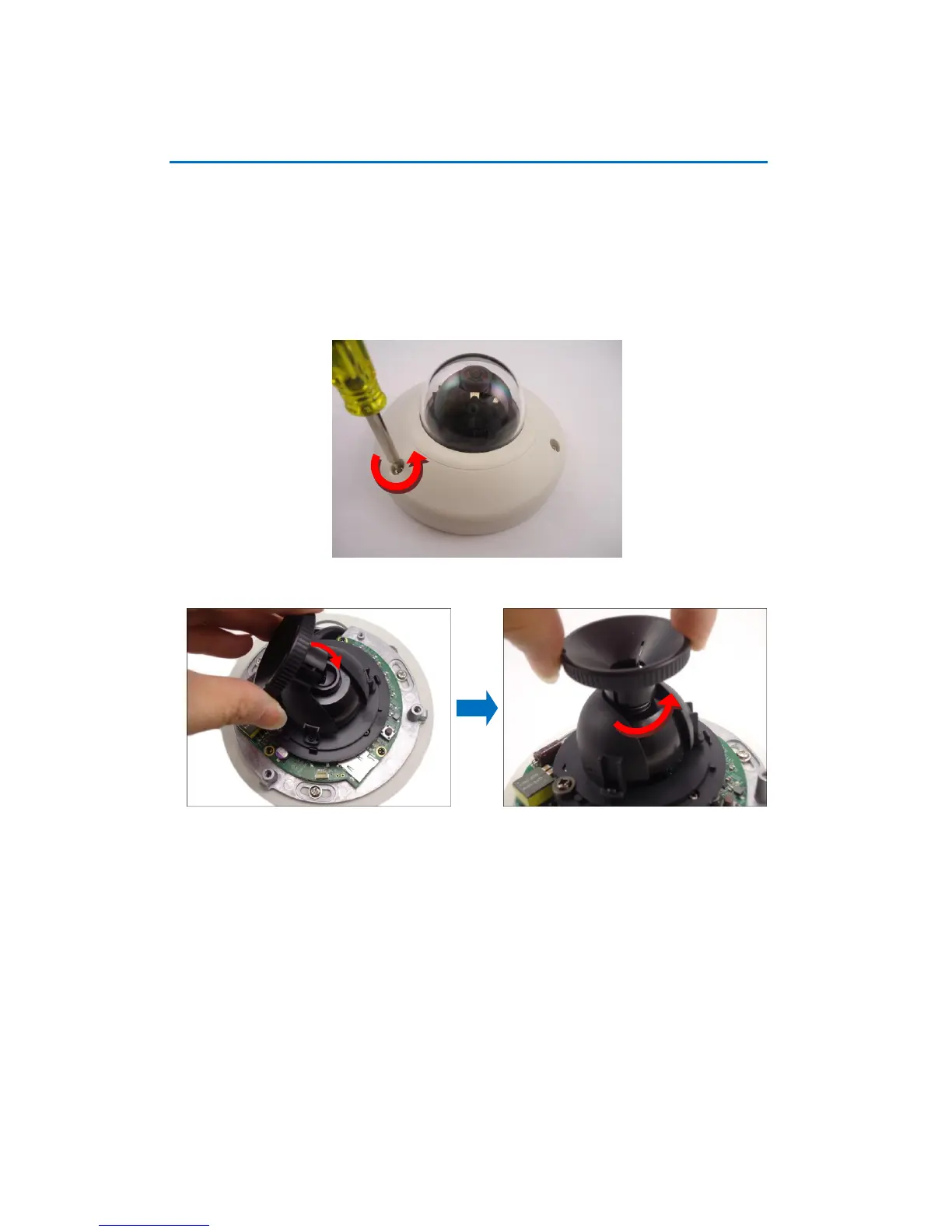

1. Using the bundled hex screwdriver, loosen the three (3) screws to open the dome cover.
2. Attach the lens focus tuner to the lens and continuously rotate until the lens comes off.
