Pin Name Specification
N.C. No Connector
485B RS485- 3.3V
485A RS485+ 3.3V
AC24V Power in AC 24V AC 24V ± 5%
AC24V Power in AC 24V AC 24V ± 5%
GND Ground
DI Digital Iutput OPEN/Short-to-GND, isolation 2kV
DO Digital Output Max. 40VDC, max. 400mA, isolation 2kV
+12V Power +12V 12VDC ± 10%, max. 0.4A

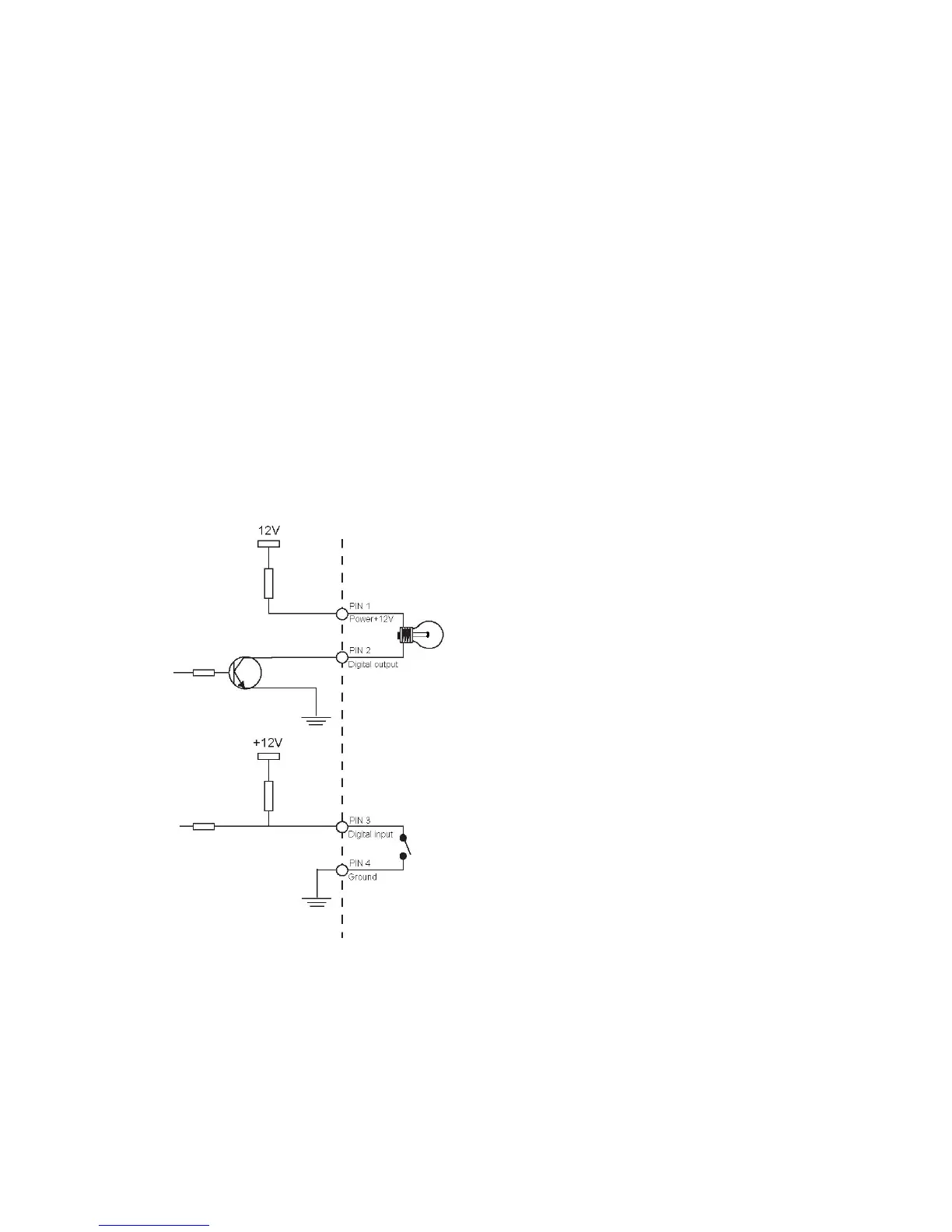

DI/DO Diagram
Refer to the following illustration for connection method.
Status LED
The LED indicates the status of the Network Camera.
Status LED Description
Blinking red (two short, one
long)
1. Power is being supplied to the Network
Camera
2. Restore, or reboot the Network Camera
