4.2 RJ-45 PIN SPECIFICATION

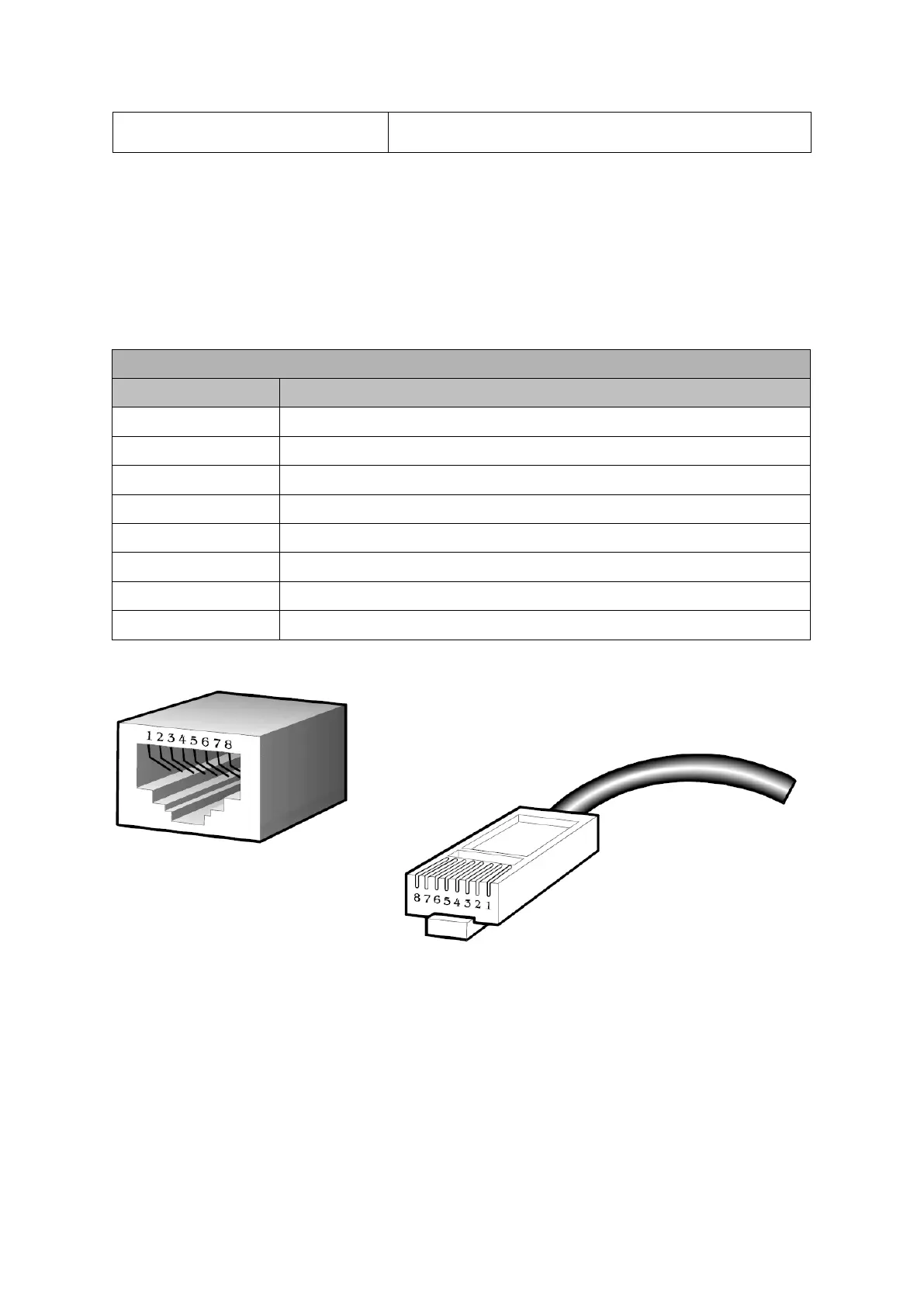

The following diagram and tables show the standard RJ-45 receptacle/connector and their pin
assignments.
RJ-45 Connector pin assignment
Contact
Media Direct Interface Signal
1
TX_D1+
2
TX_D1-
3
RX_D2+
4
BI_D3+
5
BI_D3-
6
RX_D2-
7
BI_D4+
8
BI_D4-
Standard RJ-45 receptacle/connector
