5
GSW-5150
48-Port Fast Ethernet +3-Port Gigabit
2.3 Mounting the SFP module
The front panel of the GSW-5150 consists of a SFP module, which support The
Hot Plug- And- Draw. Should xed the SFP into SFP pluggable when use the SFP
module.The switch could identify and Cong the SFP module automatically.
2.4 Power on
GSW-5150 Switch is powered by AC power supply. Powering on the Switch, it will
automatically initialize and its LED indicators should respond as follows:
1)
All of the LED indicators will ash momentarily for one second, which represent
a resetting of the system.
2) The power LED indicator will remain ON.
Chapter 3: Identifying External Components
This Chapter describes the front panel, rear panel and LED indicators of the
Switch.
3.1 Front Panel
The front panel of the GSW-5150 consists of switch LED indicators, 48
10/100Mbps RJ-45 ports ,2 10/100/1000Mbps RJ-45 ports and 1 SFP module.

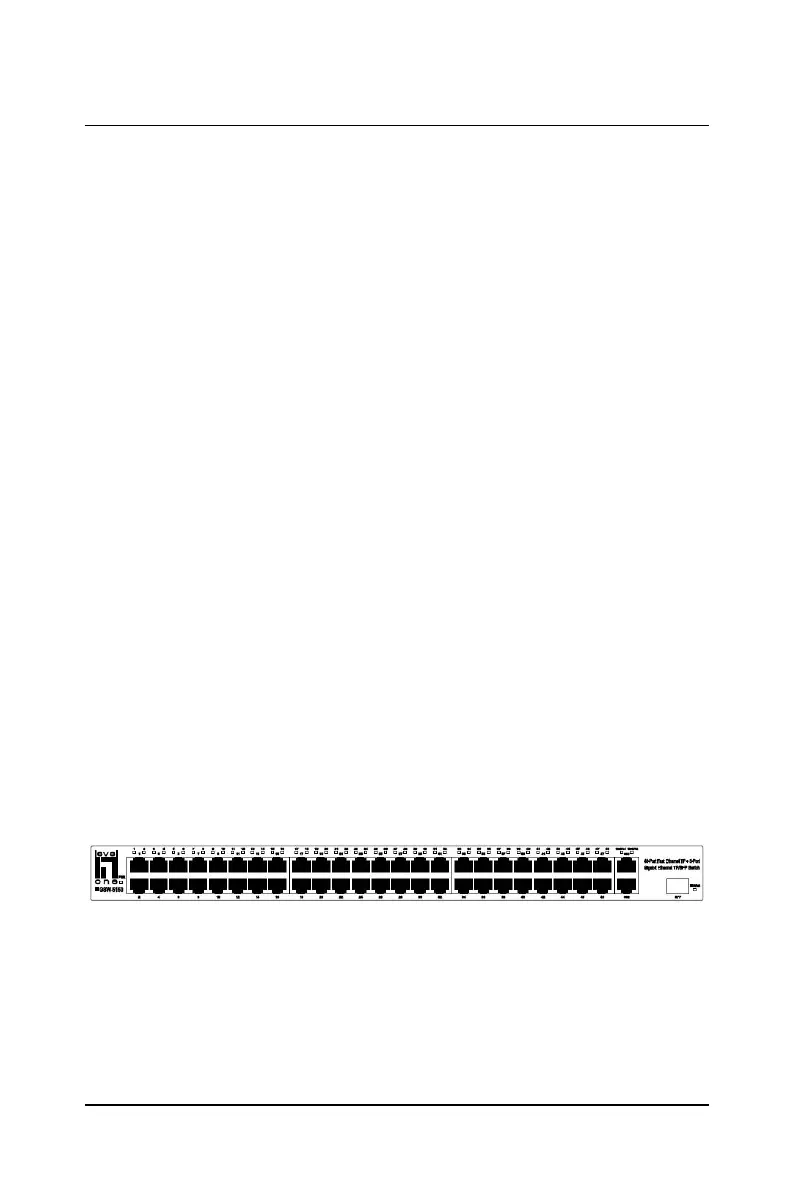

Figure 3-1 GSW-5150 Switch Front Panel sketch
