LevelOne WAB-6010 - Interface Description

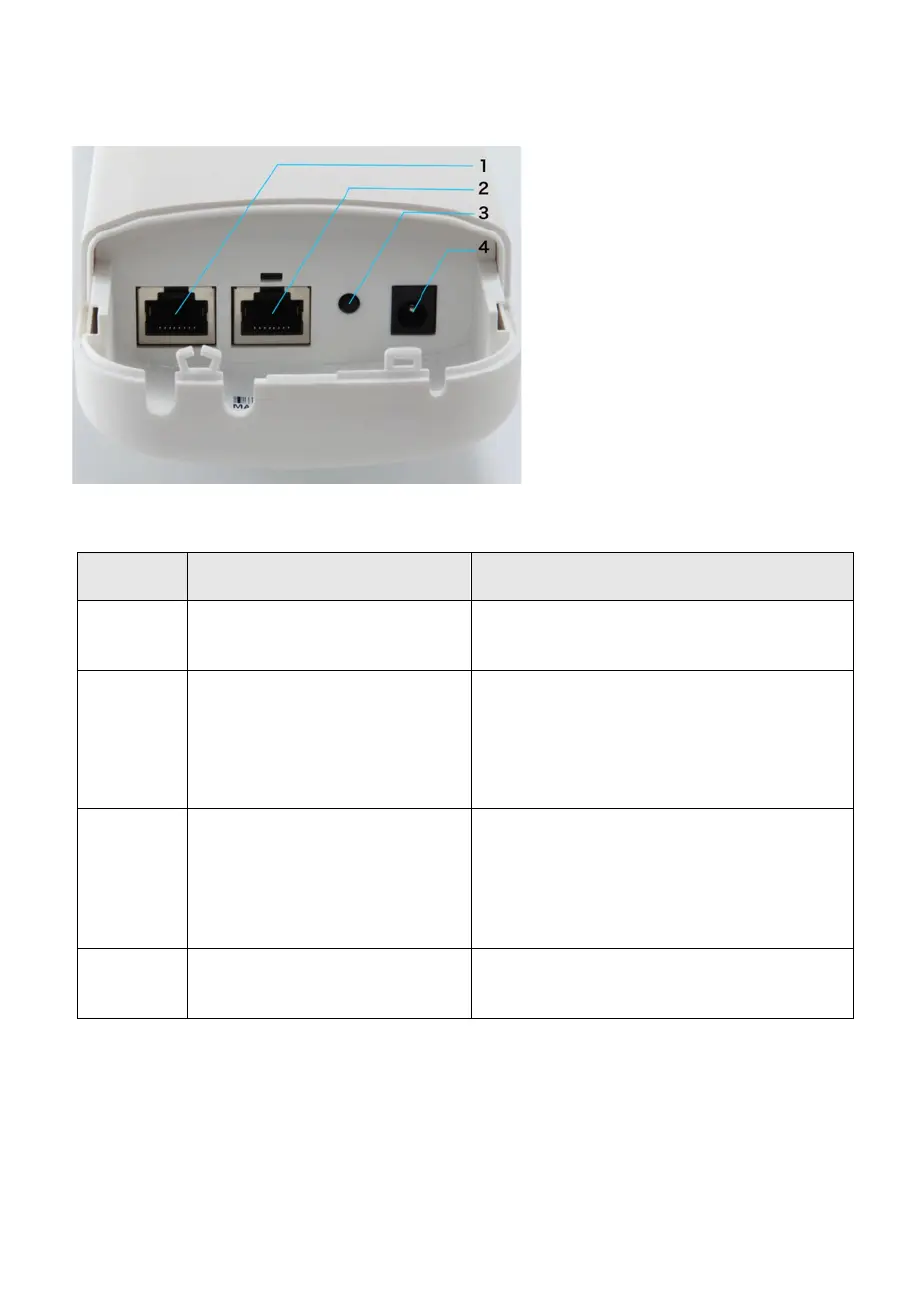

Interface Description
Marked
number
Interface / Button
Description
1
LAN port
(10/100Mbps RJ45 port)
The LAN port is used to connect to
network devices, such as a switch
or PC / NB
2
WAN/P OE port
(10/100Mbps RJ45 port)
The WAN/POE port is used to
connect to network devices, such as
a POE switch OR POE adapter to
power the device. ( POE Power
adapter unit is to be ordered
separately)
3
Reset to Default
WAB-6010 powered on, press the
Reset button for 10 seconds until
the Signal Strength LED blink faster
than ever. The AP will restart itself
and reset the device to factory
default settings.
4
DC
12V/1A DC input injector (Power
adapter unit is to be ordered
separately)
