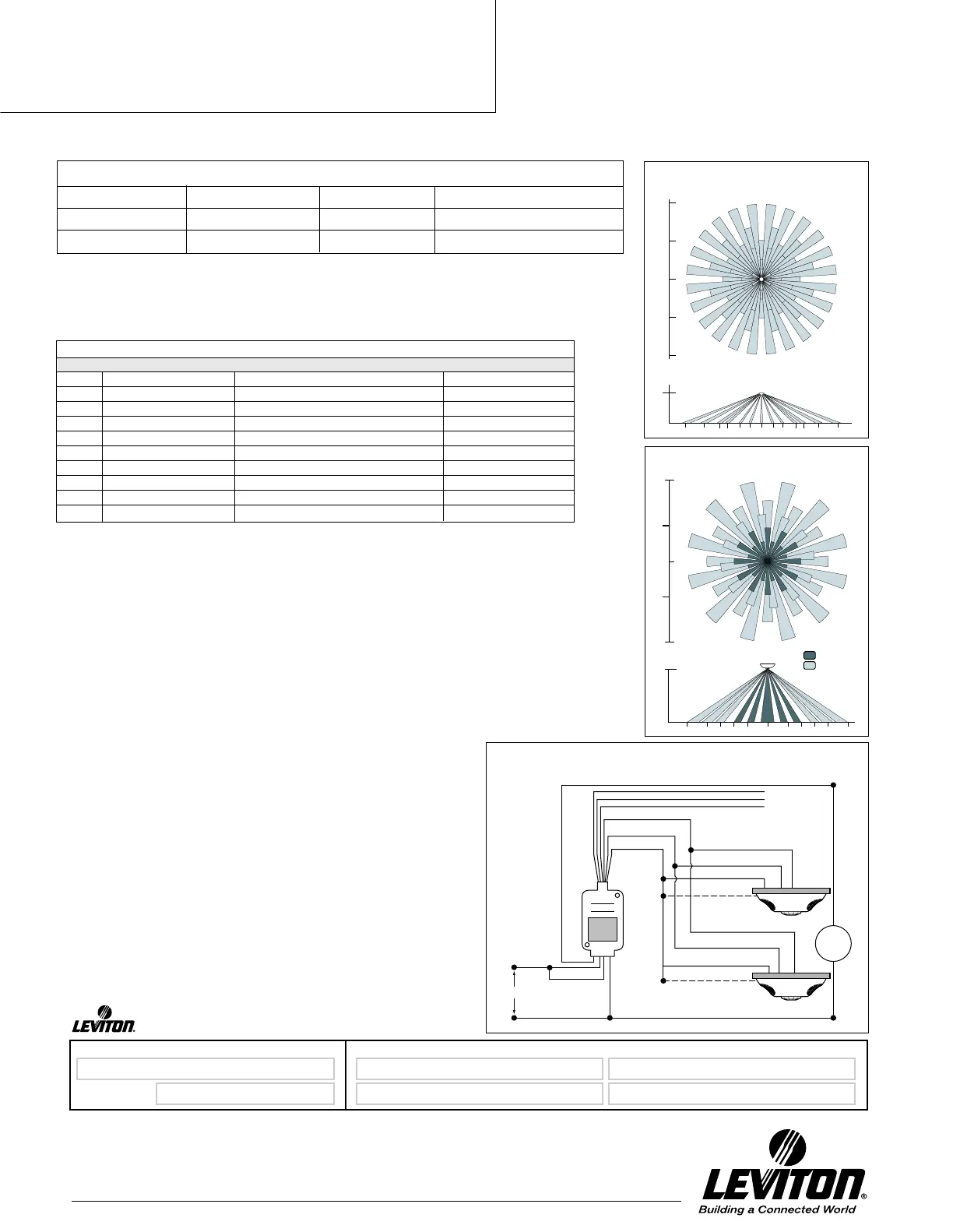

Leviton OSC20-MOW - Infrared Sensor Controls; Models and Controls; Specifications and Wiring

OSC04-IOW
OSC15-IOW
.........................
CONTROLS
PIR (Infrared Sensitivity): High to low.
Timer Adjustment (Manual): 30s - 30 min. - Factory set 10 min.
PC (Photocell Adjustment): 20 to 3,000 Lux - Factory set 3,000 Lux (Disable photocell)
Load
Sensor
OSPxx Series Power Pack
Black White
Neutral (White)
Hot
Black
Blue
Blue
Black
White
Red
Black
Blue* (occupancy)
Red
Black
Blue* (occupancy)
Gray*
(photocell
+ occupancy)
Gray*
(photocell
+ occupancy)
Red (24VDC)
Black
Blue
(control)
NC-Brown
Common-Green
NO-Brown/White
To HVAC System
120/277/347
VAC60Hz
Line
PHYSICAL WIRING
RANGES
PRODUCT SPECIFICATIONS
Models
Part Number Lens Type Coverage Additional Features
OSC04-IOW High Density 450 sq. ft. Photocell
OSC15-IOW Extended Range 1500 sq. ft Photocell
Minor Motion, IR
Major Motion, IR
0
12
5
5
12
0
SIDE VIEW
TOP VIEW
7
7
12
12 5
9
5
3
3
9
8
Field of View (in feet)
OSC04
2
Leviton Mfg. Co., Inc.
59-25 Little Neck Pkwy • Little Neck, NY 11362-2591 • Tech Line: 1-800-824-3005 • Fax: 1-800-832-9538
Visit our Website at: www.leviton.com
JOB NAME:
JOB NUMBER:
CATALOG NUMBERS:
SPECIFICATION SUBMITTAL
Product
Specifications
G-6987A/C4-tp
DIP switch settings
Switch Switch Functions Switch Settings
Bank A OFF ON
A1 N/A — —
A2 N/A — —
A3 Manual Mode Auto Adapting Enabled Auto Adapting Disabled
A4 Walk-Thru Disable Walk-Thru Enabled Walk-Thru Disabled
Bank B
B1 Override to On Auto Mode Lights forced On
B2 Override to Off Auto Mode Lights forced Off
B3 Test Mode OFF¡ON¡OFF Enter/Exit Test Mode
B4 LED Disable LEDS Enabled LEDS Disabled
INDICATOR
Red LED Lamp: Infrared motion.
SPECIFICATIONS
Construction: Housing -- Rugged, high-impact,
injection molded plastic. Color coded leads are 6” long (16.24
cm).
Size & Weight: 4.5” dia., 1.5” height; 5 oz.
(114 mm dia., 38 mm height; 142 g).
Power Requirements: 24 VDC, 20mA from the
OSPxx-series power pack.
Output: 24 VDC active high logic control signal with short circuit
protection.
Operating Environment: 32°F to 104°F (0°C to 40°C); 0% to
95% relative humidity, non-condensing. For indoor use only.
Warranty: 5 yrs.
0
0
20
10
10
20
SIDE VIEW
TOP VIEW
Field of View (in feet)
20
11
11
15
15 5.65.6
9
9
33
20
8
0
OSC15
*When the photocell function is not being used, connect the Blue Occupancy Sensor lead to the
Blue Power Pack lead. When using the Photocell function, connect the Gray Occupancy Sensor lead
to the Blue Power pack lead–Do not use the Blue Occupancy Sensor lead for the photocell function.
