Levitronix BFS-i06 User Manual

User Manual for BFS-i06
www.levitronix.com
PL-3502-00, Rev04, DCO# 24-054
This document and its content is confidential and the property of Levitronix
®
and shall not be reproduced, distributed,
disclosed or used for manufacturing or sale of Levitronix
®
products without the expressed written consent of Levitronix
®
.
6
2.2 System Configuration
2.2.1 Standard System Configuration

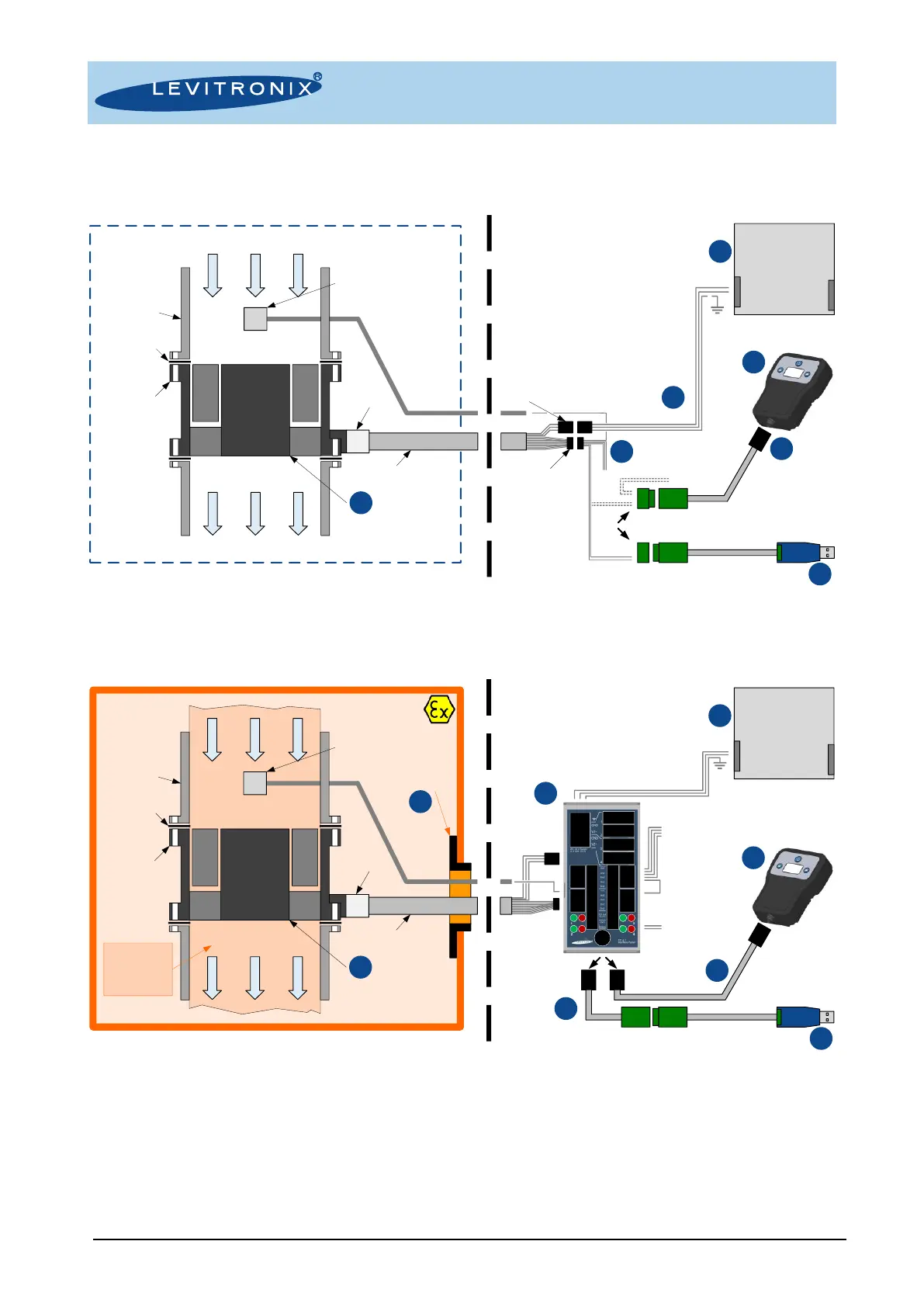

Figure 3: Standard system configuration (left) and connection with open wire adaptors (right)
Note: Connection options (right of dashed line) are interchangeable with Figure 4
2.2.2 System Configuration ATEX / IECEx
Figure 4: ATEX / IECEx system configuration (left) and connection with interface panel (right)
Note: Connection options (right of dashed line) are interchangeable with Figure 3
Integrated
Motor and
Electronics
Gas
In
Gas
Out
Mounting
Flange
Tubing
Flow or Pressure Sensor
(optional, not included)
Cable
Bushing
Gasket
(not included)
Impeller
MagLev Fan
Motor Cable
Chemical Resistance
and IP-67 Space
1
Signal Cable
8
User Panel
5
RS485 / USB Converter 6
PC Connection:
- System configuration
- Firmware update
- Monitoring
AC/DC
Power Supply
DC
Out
AC
In
3
Screw type connector for open
wires included in cable packages
Adaptor Cable
Power
2b
RS485:
Connect either User Panel,
PC or fieldbus
Signal Interface
- 2 Digital Inputs
- 2 Digital Outputs
- 2 Analog Inputs
- 1 Analog Output
- RS485 Interface
DC Supply
- +VDC
- GND
- Earth
Adaptor Cable
Signal
5 to 24 VDC
2a
Integrated
Motor and
Electronics
Gas
In
Gas
Out
Mounting
Flange
Tubing
Flow or Pressure Sensor
(optional, not included)
Cable
Bushing
Gasket
(not included)
Impeller
MagLev Fan
Motor Cable
Ex conform cable
sealing system
Ex Location
Outside of Fan:
Zone 1/21 or
Zone 2/22 or
Non-Classified
Chemical Resistance
and IP-67 Space
Ex Location
Inside of Fan:
Zone 1/21 or
Zone 2/22
1
4 x PLC Connection
2 x Analog Input
1 x Analog Output
2 x Digital Input
RS485 interface
for fieldbus
Signal Cable
7
Signal Cable
9
Easy coupling of
multiple fans for
serial or parallel
operation
User Panel
5
RS485 / USB Converter 6
PC Connection:
- System configuration
- Firmware update
- Monitoring
AC/DC
Power Supply
DC
Out
AC
In
3
4
Interface Panel
Easy and quick wiring of
up to 4 fans
10
Fan
1
PLC Interface
Supply
Fan
2
Fan
3
Fan
4
PLC Interface
Fan 1
Fan 2
Fan 3
Fan 4
COM
