INSTALLING THERMOSTAT WITH A C WIRE (CONT.)
3. Connect the wires

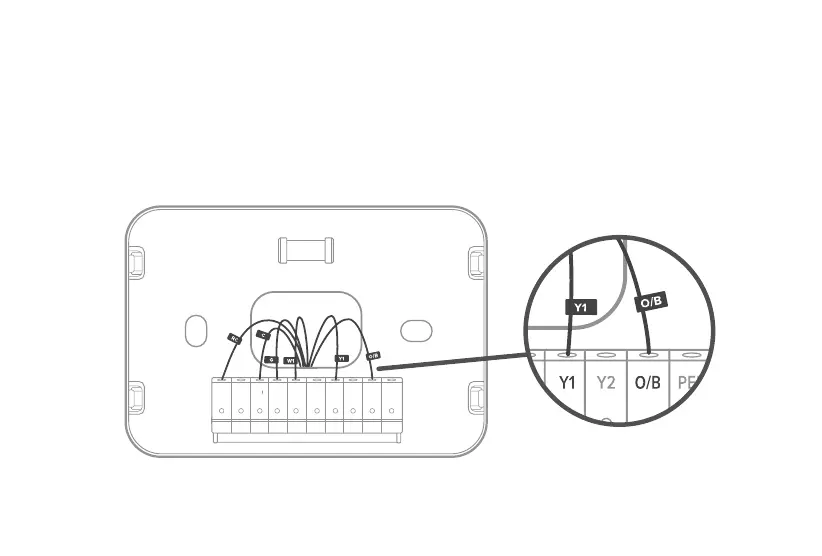

Connect the wires to the corresponding terminals on the backplate (see Wiring Diagrams, page 36). [Figure 2.3]
When you are finished, take a picture.
You may need to refer to the connections in this photo while setting up the thermostat.
Figure 2.3
Rc Rh W1 W2 Y1 Y2 O/B PEK
CG
CG
