Wiring Diagrams

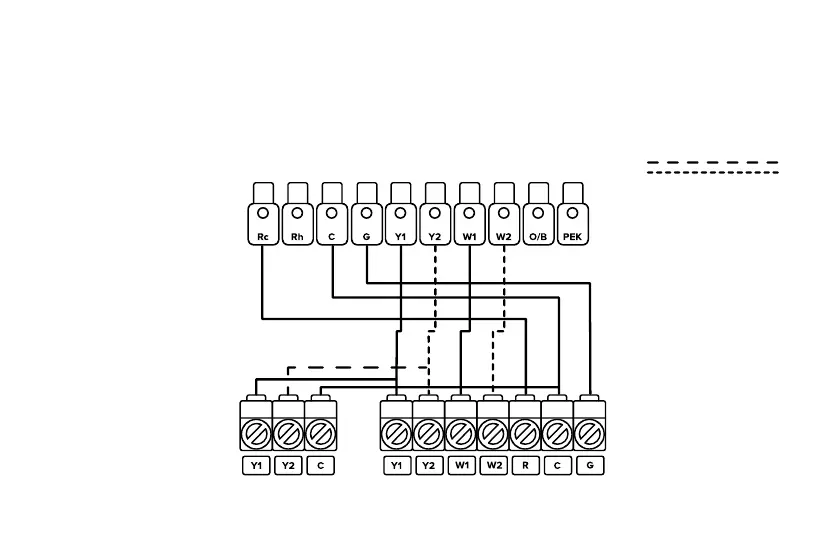

Conventional Heating/Cooling System - C Wire
The following are wiring diagrams for common HVAC systems. You may
be able to use these for reference when installing your thermostat.
Thermostat
Air Conditioner
HVAC
Furnace
For 2-Stage Heating/Cooling
Systems (If Applicable)
