Levoit VortexIQ 40 User Manual

13
Figure 3.1
Figure 3.2
Figure 3.3
CLEANING
Cleaning the Vacuum Body
Cleaning the Dust Bin &
Metal Filter
1. Turn the vacuum o.
2. Wipe the vacuum body down with a
damp cloth.
3. Allow the vacuum body to completely dry
before using.
1. Make sure the vacuum is o and the dust
bin is completely empty before cleaning
(see Emptying the Dust Bin, page 12).

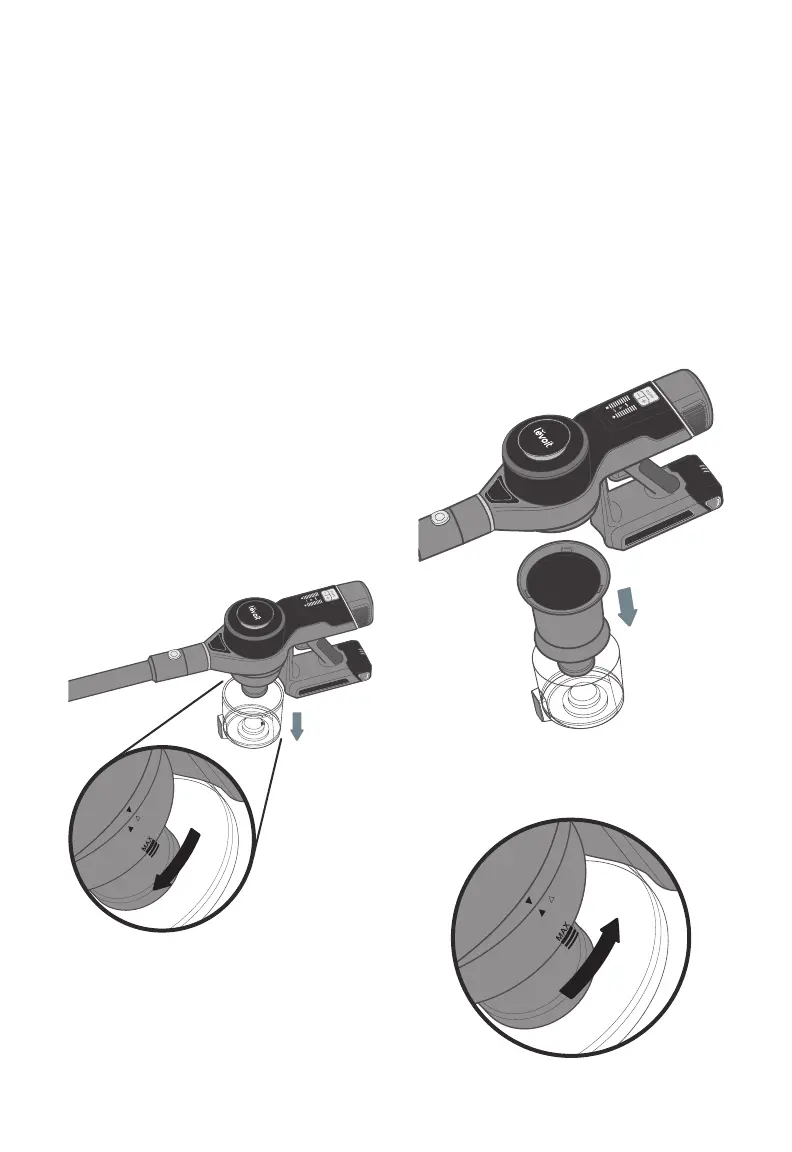

2. Rotate the dust bin clockwise to remove
it [Figure 3.1]. Empty out any remaining
dust and debris.
Note: Do not allow water to enter the
internal parts or motor of the vacuum.
Note: Do not allow water to enter the
internal parts or motor of the vacuum.
3. Rotate the metal filter clockwise to
remove it [Figure 3.2].
4. Rinse the dust bin and metal filter
with water and allow them to dry.
Make sure the parts are completely
dry before using.
5. Reattach the metal filter and dust bin to
the vacuum body [Figure 3.3].

Levoit VortexIQ 40 Specifications

General

Brush shape	Rectangular
Product type	Stick vacuum
Dust capacity	0.6 L
Product color	Gray
Dust container type	Bagless
Removable handheld vacuum	Yes
Cleaning type	Dry
Vacuum air filtering	HEPA
Dirt separating method	Cyclonic
Air filtration stages quantity	4
Motor power	400 W
Power source	Battery
Charging time	5 h
Suction power	130 AW
Battery voltage	25.9 V
AC input voltage	100 - 240 V
Battery capacity	2500 Ah
AC input frequency	50 - 60 Hz
Maximum input power	- W
Vacuum brushes included	Dusting brush

Weight and Dimensions

Depth	230 mm
Width	250 mm
Height	1170 mm
Weight	3200 g
