3. Installation
3.3 Locating receiver
WARNING! Disconnect or isolate
the battery before installation.
In both windlass and thruster installations,
it is recommended that the wireless control
system is not the sole control medium for
each product. The windlass should also
have deck/rocker switches installed as per
windlass installation manual. The thruster
should also have at least one TT control
panel installed as per Thruster installation
manual.

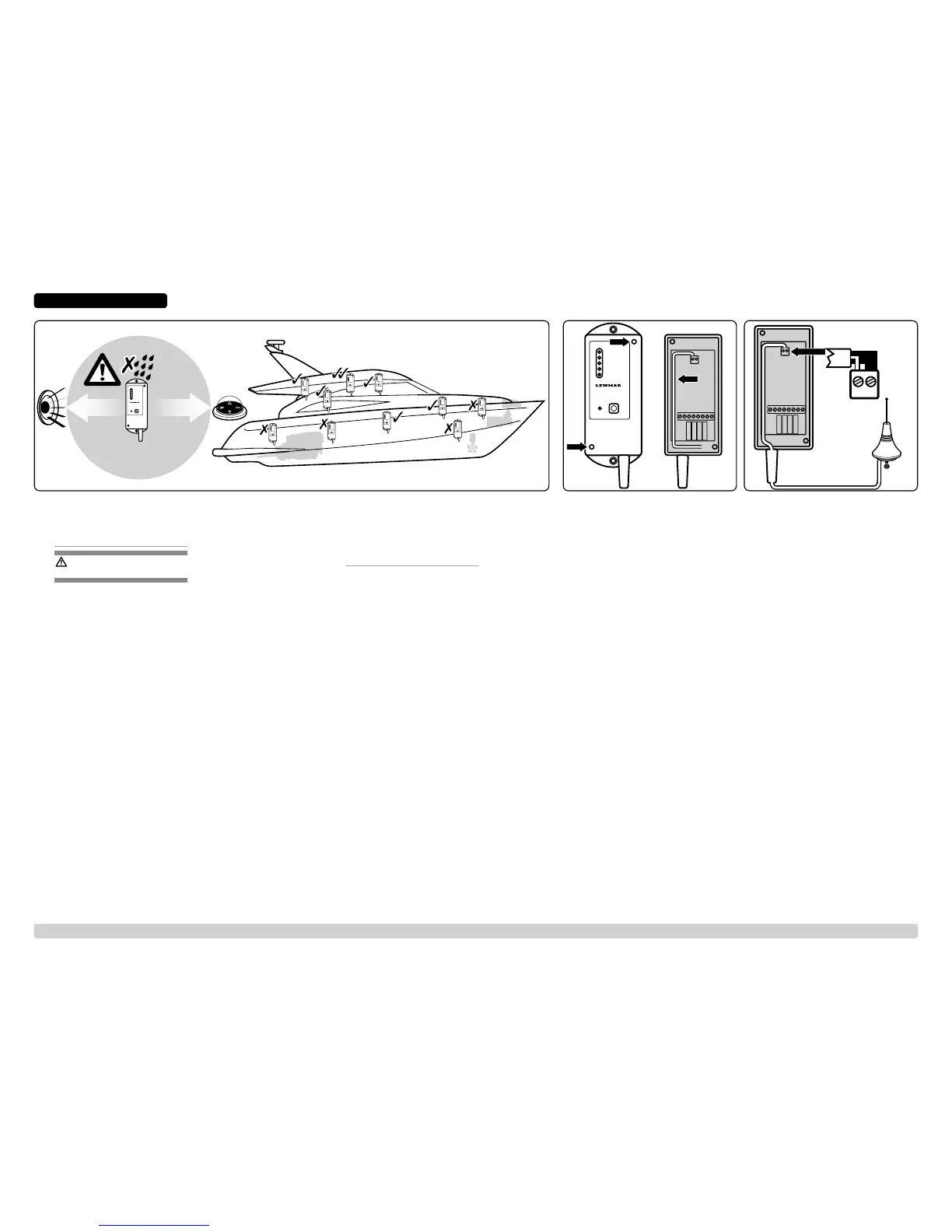

1. Position the receiver with the
following precautions:
• In a dry, accessible location.
• As high up in the vessel as possible.
• As far as possible from large
metal masses, electrical motors or
windlass.
• At least 1m (3ft) away from
electrical wiring, navigational and
radio equipment.
3.4 Connecting the optional
external antenna
• Position the antenna in a suitable
location on the vessel with the same
precautions as the receiver.
1. Open the receiver and remove the
internal antenna from the terminal
board.
2. Run the cable in the same space as
the internal antenna and connect to
terminal box:
• Cable radio signal wire to ANT.
• Cable shield to GND.
