Lewmar 3 - Installation; Basic Requirements for Installation; Wireless Remote Kit Components

3.1 Basic requirements
Each installation requires:
TRANSMITTER AND RECEIVER
The following tools:
• Power drill with 2mm (
5
/
64
”) drill
• Pozidriv screwdriver
WIRING
• Crimping Pliers/Wire Stripper
• Suitable electrical cable and crimp
terminals

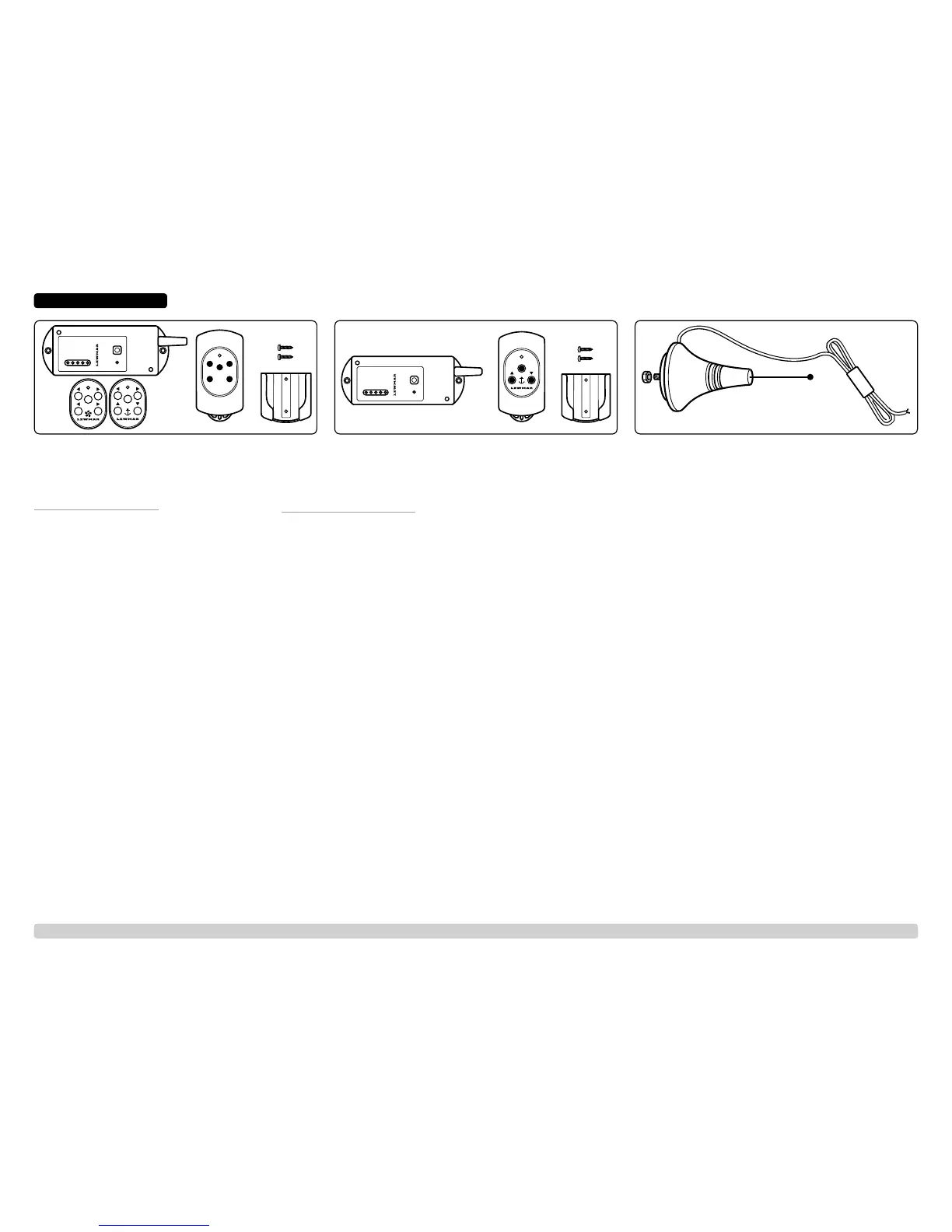

3.2 Components
• NOTE: Wireless remote will only work
with Lewmar products fi tted with a
contactor.
1. 68000968 - 5 button wireless
remote kit
• 4 channel radio control unit supplied
pre-programmed to the receiver
unit.
• Transmitter supplied with 2 x 1.5V
AAA alkaline batteries.
• Adhesive labels for thruster or
windlass function.
• Support kit for transmitter.
• 2 x 3.5 x 13mm screws.
• Instruction manual.
2. 68000967 - 3 button wireless
remote kit
• 2 channel radio control unit supplied
pre-programmed to the receiver
unit.
• Transmitter supplied with 2 x 1.5V
AAA alkaline batteries.
• Support kit for transmitter.
• 2 x 3.5 x 13mm screws.
• Instruction manual.
3. Remote antenna kit
• 68000969 - Antenna with 10m
cable.
Spare Transmitters
• 3 buttons - 68001005
• 5 buttons - 68001006
3. Installation
LINE OUT 1 OUT 2 OUT 3 OUT 4
WINDLASS/THRUSTER RECEIVER 433.92 MHz
PROG.
ON
ON
3.2-1
LINE OUT 1 OUT 2 OUT 3 OUT 4
WINDLASS/THRUSTER RECEIVER 433.92 MHz
PROG.
ON
3.2-2 3.2-3
