Lewmar EVO 45 - Electric Performance Graphs

18
Cutout (500 kg)
(A) Line Speed (m/min)
(C) Load (kg)
(B) Current (Amp)
OCEAN 40 + EVO™ 40 - 12V
Cutout (500 kg)
(A) Line Speed (m/min)
(C) Load (kg)
(B) Current (Amp)
OCEAN 40 + EVO™ 40 - 24V
Cutout (800 kg)
(A) Line Speed (m/min)
(C) Load (kg)
(B) Current (Amp)
OCEAN 46 + EVO™ 45 - 12V
Cutout (800 kg)
(A) Line Speed (m/min)
(C) Load (kg)
(B) Current (Amp)
OCEAN 46 + EVO™ 45 - 24V
Cutout (1250 kg)
(A) Line Speed (m/min)
(C) Load (kg)
(B) Current (Amp)
OCEAN 50 - 12V & 24V
Cutout (1000 kg)
(A)
Line Speed (m/min)
(C) Load (kg)
(B) Current (Amp)
OCEAN 48 + EVO™ 50 - 12V & 24V
GB
6.3 Electric performance

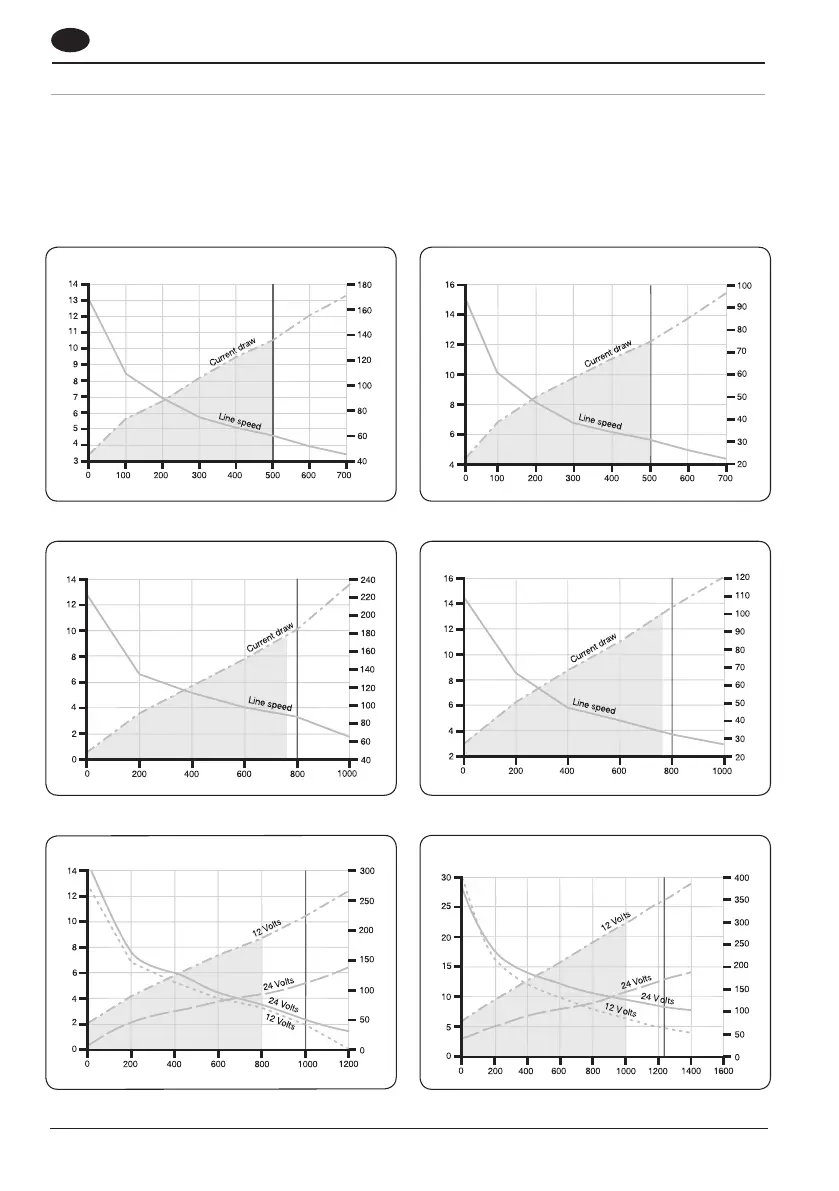

The following graphs show line speed and amperage draw relative to the load applied. Each control box will cut
out at a set current relative to maximum load.
(A) Line speed (m/min)
(B) Current (Amp)
(C) Load (kg)
