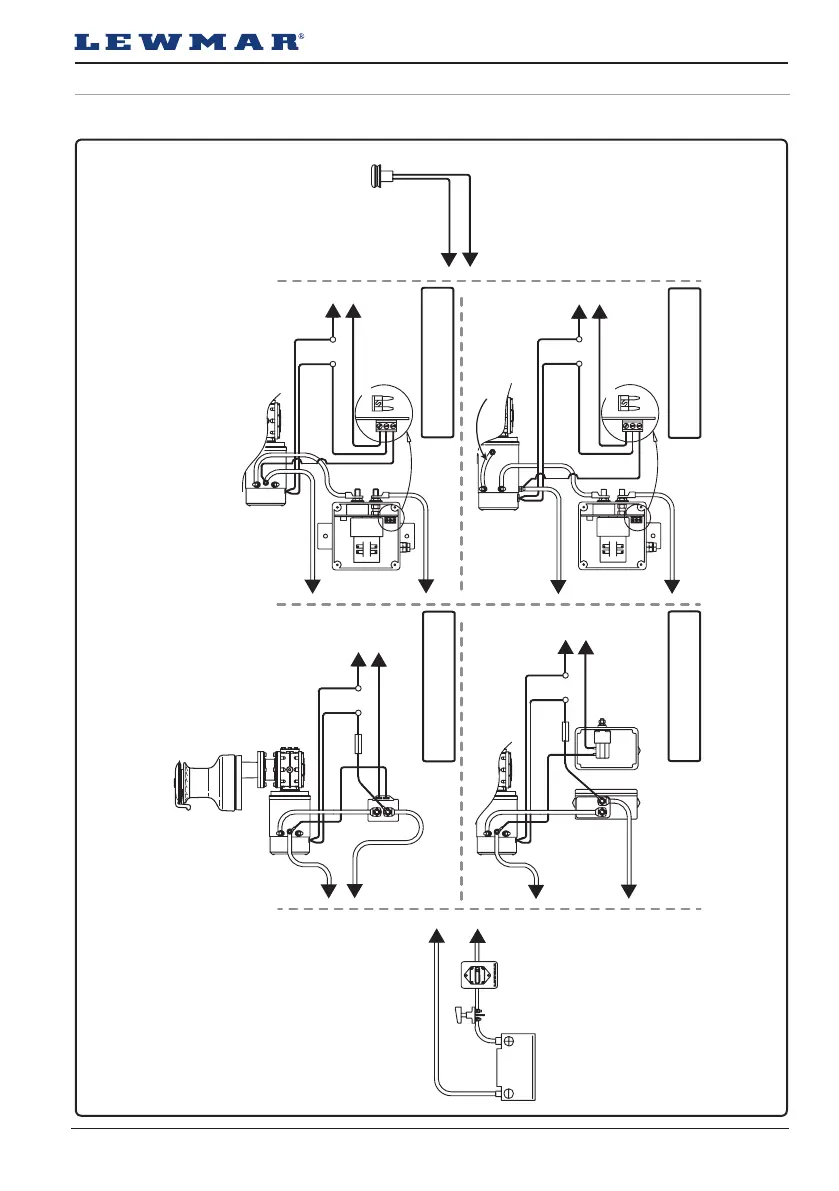

Lewmar EVO 45 - Wiring Diagram

Lewmar OCEAN & EVO® Electric/Hydraulic Winches ref B2303 Iss.14 | 13
3
4
Electric Deck
Switch
Thermal
Switch
3
4
Fused 3A
Contactor Box 12V - 18000301 24V - 18000302
Thermal
Switch
Fuse
3A
Contactor 12V - 68000933 24V - 68000934
Fuse
3A
Thermal
Switch
Battery
Isolator
Circuit Breaker
(see manual)
Battery
12/24VDC
D1
D2
A2
D1
D2
A2
D1 D2 A2
1
2
3
4
3
4
1
2
1
2
1
2
MOTOR +
BATT +
MOTOR +
BAT T +
Thermal
Switch
A1
F2
A2
F1
Cable link - Use same size & type as main cables, if not fitted.
40-50 EVO
®
WINCH
‘E’ SERIES CONTACTOR ONLY
40-50 EVO
®
WINCH
ELS CONTROL BOX
40-50 EVO
®
WINCH
‘E’ SERIES CONTACTOR BOX
55-65 EVO
®
WINCH
ELS CONTROL BOX
1
3
4
2
Fused 3A
4.10 Wiring diagram 40-65
Switch wire thickness: 1.5 mm2 (16 AWG)
