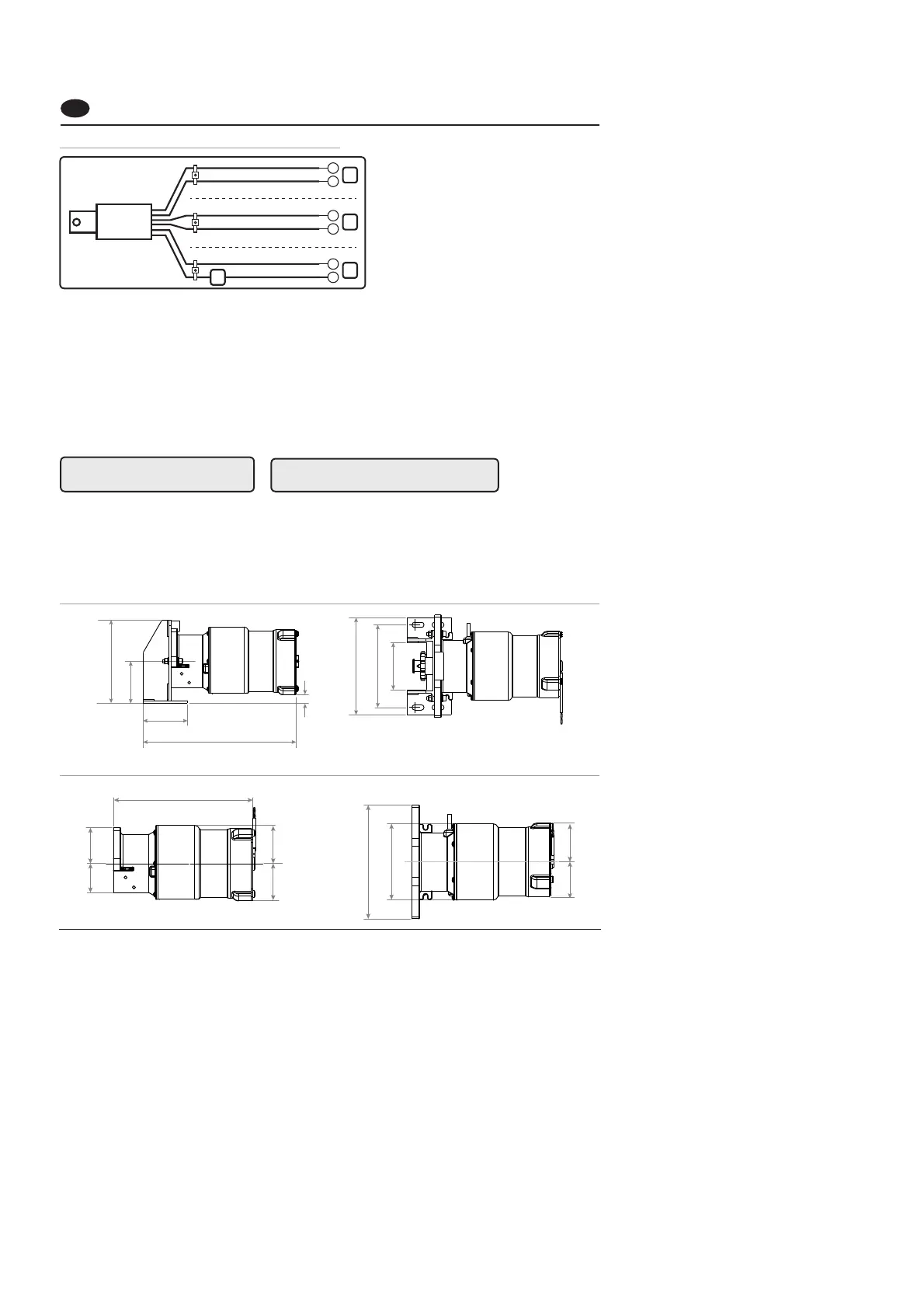

89300148 - Relay and loom assembly for connection to Raymarine SPX10 course computer:
Install in suitable dry location close to the course computer and power supply.
Connect as per above figure extending wires as necessary matching size and grade where appropriate.
A. Connect to course computer clutch control output. (1) BLUE -VE (2) RED +VE.
B. Connect to Lewmar autopilot drive clutch. (3) BLACK -VE (4) BROWN +VE.
C. Connect to battery power 12VDC 5A. (5) BLACK -VE (6) ORANGE +VE.
D. In-line fuse ATO Blade 5A (tan)
NOTE: Refere to installation manuals of all equipment involved and perform work to meet all relevant standards.
4.4 Electrical wiring for Raymarine SPX10
5- Servicing
On a regular basis
! Check all connections and mountings are secure.
! Check chain and sprockets are correctly aligned and
tensioned.
! Lightly grease chain and sprockets.
! Check cables for signs of wear or damage.
GB
# WARNING! Isolate using circuit
breaker/isolator when not in use.
# WARNING! Electric motors become hot
during and for some time after use.
5.1 Integra Bavaria & Constellation dimensions
5.2 Integra Mamba dimensions
