Audio Controls Lexicon
4-2

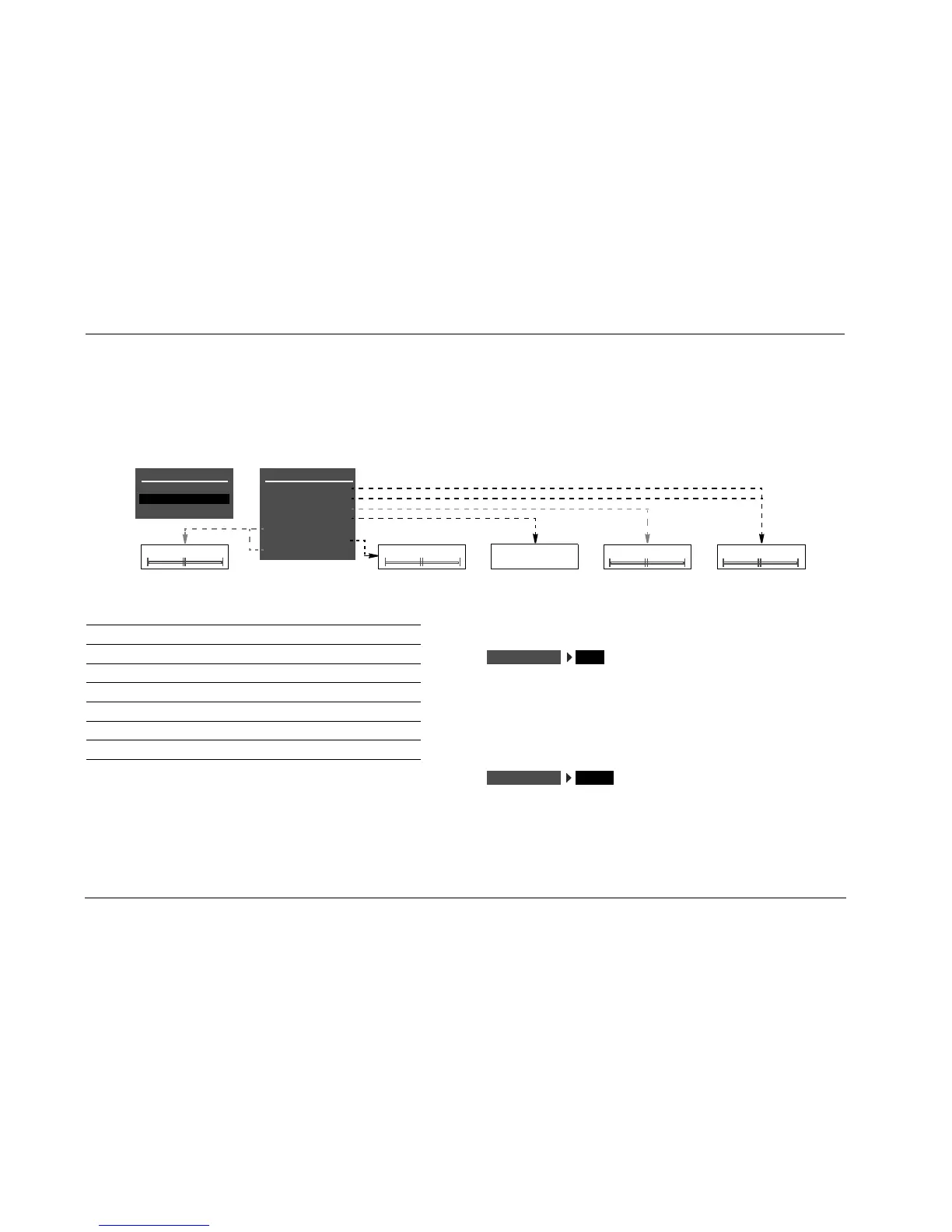

AUDIO CONTROLS
Selecting the MAIN MENU AUDIO CONTROLS option opens the AUDIO CONTROLS menu, which is used to customize the Main Zone audio
output connectors and to control the balance of the Zone 2 audio output connectors. The BASS, TREBLE, TILT EQ, LOUDNESS, BALANCE and
FADER parameters affect the Main Zone audio output connectors, including all Main Zone inputs and listening modes, except the 5.1a BYPASS and
2CH BYPASS listening modes. The ZONE2 BALANCE parameter affects the Zone 2 audio output connectors, including all Zone 2 inputs.
Notes:
When the Zone 2 command bank is activated, pressing the remote control
Blue button sets the BASS, TREBLE and TILT EQ parameters to +0.0dB.
When LIVE! is active, the BASS, TREBLE, TILT EQ, and LOUDNESS
controls do not function and the corresponding parameters are shown
in the AUDIO CONTROLS menu as set to +0.0dB. The LOUDNESS
parameter is shown as set to OFF.
BASS –6.0dB to +6.0dB
Controls the amount of low-frequency boost or cut applied to the
Main Zone audio output connectors labeled Front L/R, Center, and
Subwoofer. The graph shown on the near right indicates the
frequency response of all BASS parameter settings.
TREBLE –6.0dB to +6.0dB
Controls the amount of high-frequency boost or cut applied to the
Main Zone audio output connectors labeled Front L/R and Center.
The graph shown on the far right indicates the frequency response
of all TREBLE parameter settings.
MAIN MENU
MODE ADJUST
AUDIO CONTROLS
SETUP
AUDIO CONTROLS
BASS
TREBLE
TILT EQ
LOUDNESS
BALANCE
FADER
+0.0dB
+0.0dB
+0.0dB
OFF
<I>
<I>
ZONE2 BALANCE
<I>
ON
OFF
B< FADER >F
-6.0 to +6.0dB
-3.0 to +3.0dB
L< BALANCE >B
Parameter
Default Setting
Possible Settings
BASS +0.0dB –6.0 to +6.0dB
TREBLE +0.0dB –6.0 to +6.0dB
TILT EQ +0.0dB –3.0 to +3.0dB
LOUDNESS OFF ON, OFF
BALANCE <|> L< to <|> to >R
FADER <|> B< to <|> to >F
ZONE2 BALANCE <|> L< to <|> to >R
AUDIO CONTROLS
BASS
AUDIO CONTROLS
TREBLE
To Next Page
