MC-8 Setup
3-7
ASSIGNING AUDIO and VIDEO INPUT CONNECTORS
The MC-8 has eight configurable inputs, each of which can be assigned to its eight digital audio, eight analog audio, five composite video, five
S-Video or three component video input connectors.
The table below indicates the INPUT SETUP menu parameters that
can be used to assign audio and video input connectors. The ANLG
IN LVL parameter can be used to adjust 2-channel analog audio input
levels for the selected input.
Note:
The digital audio input connectors are compatible with PCM (44.1, 48,
88.2 and 96kHz), Dolby Digital and DTS-ES sources. The digital audio
input connectors are not compatible with MPEG or MP3 sources.
DIGITAL IN COAX-1 TO 4, OPTICAL-1 TO 4, NONE
Opens the DIGITAL IN menu, which is used to assign a digital audio
input connector for the selected input. The MC-8 has eight config-
urable inputs, each of which can be assigned to any of its eight digital
audio input connectors.
Please note the following:
• When no digital audio input connector is assigned, the MC-8
will automatically set the MAIN ADV menu INPUT SELECT
parameter to ANALOG (3-17).
• A digital audio input connector must be assigned when no
analog audio input connector is assigned. Refer to the next page
for information about assigning an analog audio input
connector.
DVD1 DIGITAL IN
COAX-1
COAX-2
COAX-3
COAX-4
OPTICAL-1
OPTICAL-2
OPTICAL-3
OPTICAL-4
NONE

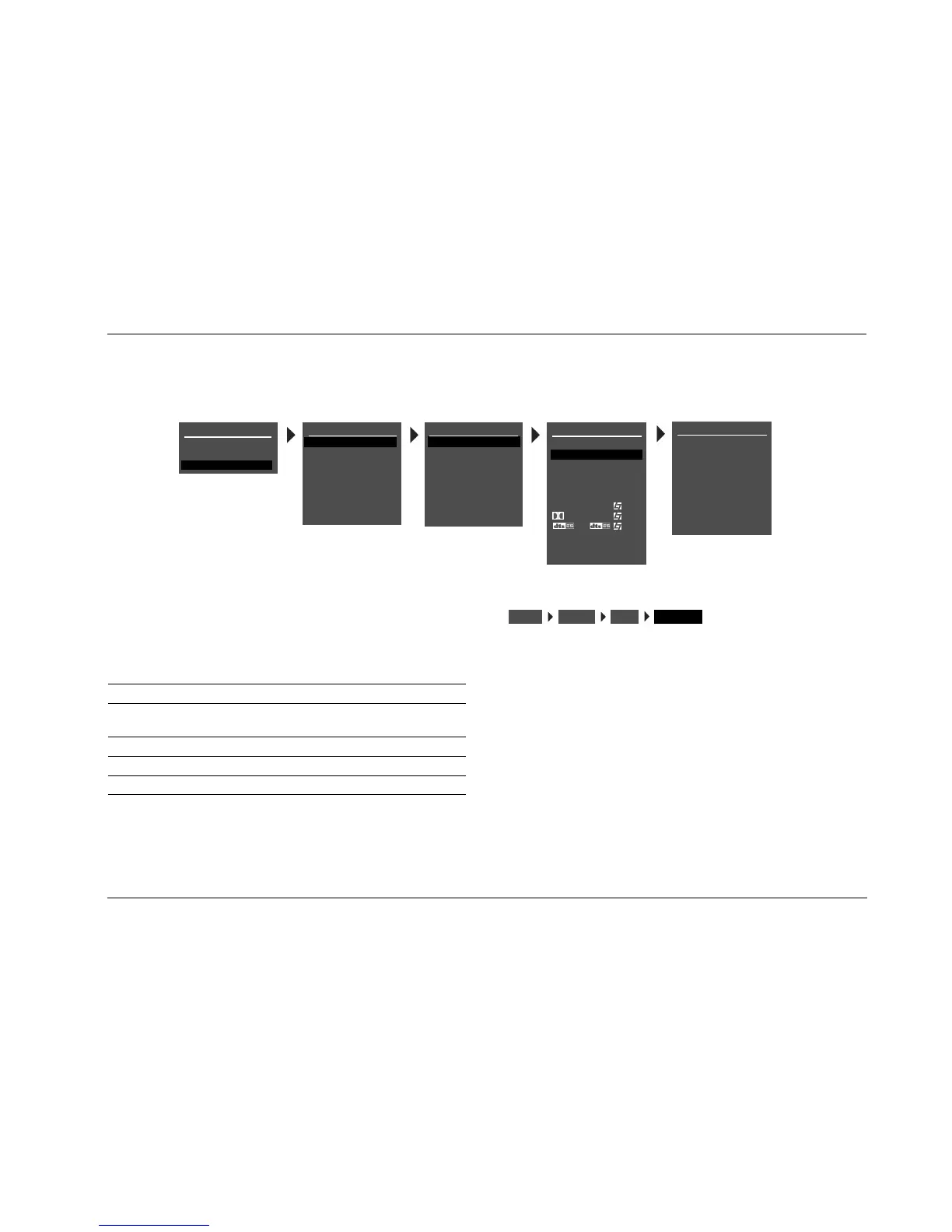

MAIN MENU
MODE ADJUST
AUDIO CONTROLS
SETUP
SETUP
INPUTS
SPEAKERS
REAR PANEL CONFIG
DISPLAYS
VOLUME CONTROLS
TRIGGER
LOCK OPTIONS
INPUT SETUP
DVD2
TV
SAT
VCR
CD
TUNER
AUX
DVD1
LIVE! CALIBRATION
DVD1 INPUT SETUP
NAME
DIGITAL IN
ANALOG IN
VIDEO IN
COMPONENT IN
2-CH
MIC
D
DVD1
COAX-1
NONE
AUTO
S-Video-1
1
FILM
5.1 FILM
FILM
ANLG IN LVL
LIVE! MED
MAIN ADVANCED
ZONE2 IN DIGITAL
Parameter Possible Settings
DIGITAL IN COAX-1 to 4, OPTICAL-1 to 4, NONE
ANALOG IN ANALOG-1 to 8, 5.1 ANLG (3-5) or (6-8), LIVE!,
NONE
ANLG IN LVL AUTO, –18dB to +12dB
VIDEO IN COMPOSITE-1 to 5, S-VIDEO-1 to 5, NONE
COMPONENT IN COMPONENT-1 to 3, NONE
INPUTSSETUP
DVD1
DIGITAL IN
To Next Page
