ASSIGNING AUDIO and VIDEO INPUT CONNECTORS (continued)
ANALOG IN ANALOG-1 to 8, 5.1 ANLG (3-5) or (6-8), LIVE!, NONE
Opens the ANALOG IN menu, which is used to assign an analog
audio input connector for the selected input. The MC-8 has eight
configurable inputs, each of which can be assigned to any of its eight
analog audio input connectors.
The appearance of the ANALOG IN menu depends on the configu-
ration of the analog audio input connectors.

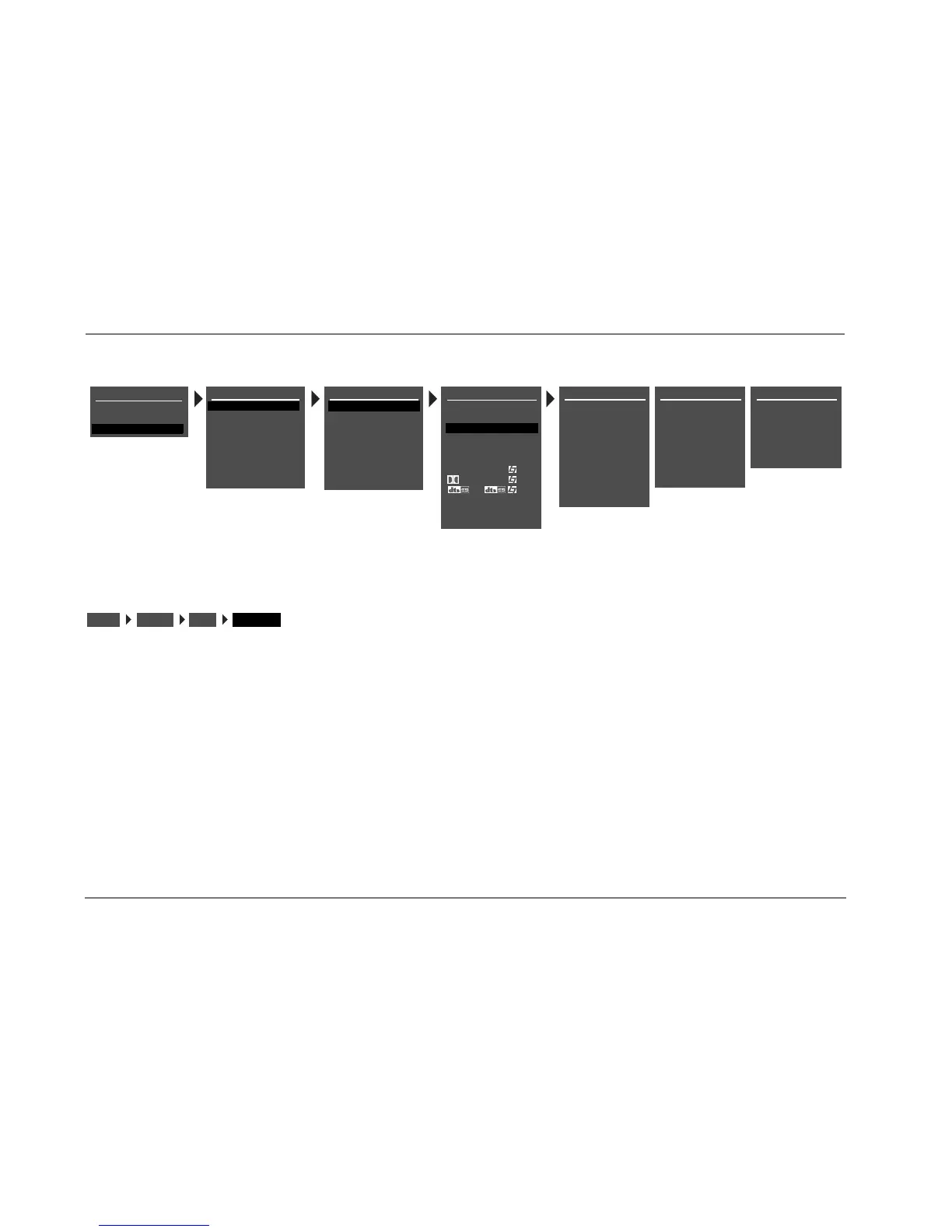

• The ANALOG IN menu (A above) appears when the REAR PANEL
CONFIG menu 8 STEREO INPUTS option is selected (3-59).
• The ANALOG IN menu (B above) appears when the REAR PANEL
CONFIG menu 5 ST. & 5.1 ANLG option is selected (3-60).
• The ANALOG IN menu labeled (C above) appears when the
REAR PANEL CONFIG menu 2 ST. & (2) 5.1 ANLG option is
selected (3-60).
Please note the following:
• When no analog audio input connector is assigned, the MC-8
will automatically set the MAIN ADV menu INPUT SELECT
parameter to DIGITAL (3-17).
• An analog audio input connector must be assigned when no
digital audio input connector is assigned. Refer to the previous
page for information about assigning a digital audio input
connector.
• LIVE! cannot be selected until LIVE! CALIBRATION is run. When
the ANALOG IN selection is LIVE!, no other analog inputs (1-8)
or digital inputs can be selected for that input.
