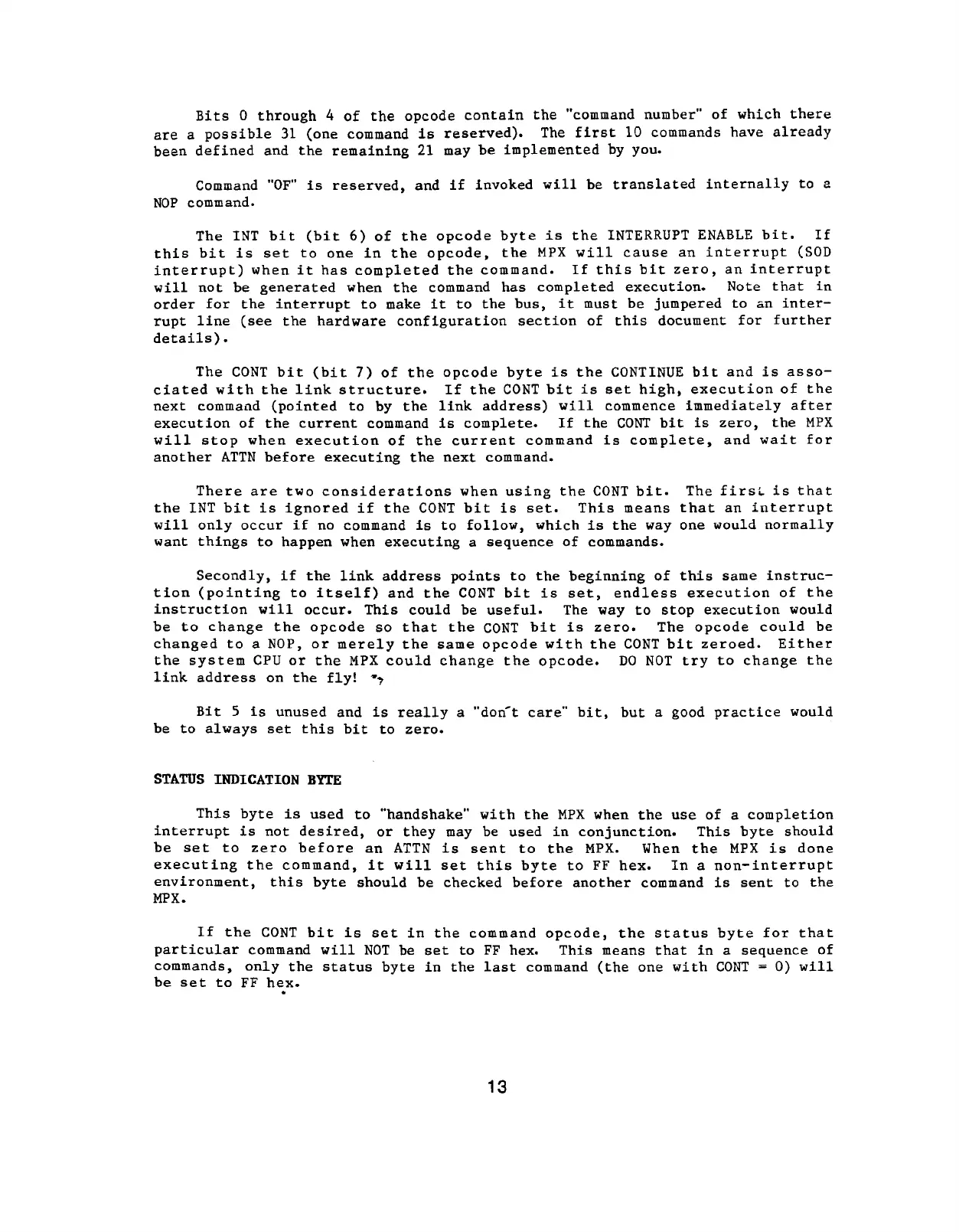

Bits
0
through
4
of
the
opcode
contain
the
"command number"
of
which
there
are
a
possible
31
(one
command
is
reserved).
The
first
10 commands
have
already
been
defined
and
the
remaining
21
may
be
implemented
by you.
Command
"OF"
is
reserved,
and
if
invoked
will
be
translated
internally
to
a
NOP
command.
The INT
bit
(bit
6)
of
the
opcode
byte
is
the
INTERRUPT
ENABLE
bit.
If
this
bit
is
set
to
one
in
the
opcode,
the
MPX
will
cause
an
interrupt
(SOD
interrupt)
when
it
has
completed
the
command.
If
this
bit
zero,
an
interrupt
will
not
be
generated
when
the
command
has
completed
execution.
Note
that
in
order
for
the
interrupt
to
make
it
to
the
bus,
it
must
be
jumpered
to
an
inter-
rupt
line
(see
the
hardware
configuration
section
of
this
document
for
further
details)
The
CONT
bit
(bit
7)
of
the
opcode
byte
is
the
CONTINUE
bit
and
is
asso-
ciated
with
the
link
structure.
If
the
CONT
bit
is
set
high,
execution
of
the
next
command
(pointed
to
by
the
link
address)
will
commence
immediately
after
execution
of
the
current
command
is
complete.
If
the
CONT
bit
is
zero,
the
MPX
will
stop
when
execution
of
the
current
command
is
complete,
and
wait
for
another
ATTN
before
executing
the
next
command.
There
are
two
considerations
when
using
the
CONT
bit.
the
INT
bit
is
ignored
if
the
CONT
bit
is
set.
This
means
will
only
occur
if
no command
is
to
follow,
which
is
the
way
want
things
to
happen
when
executing
a
sequence
of
commands.
The
firs!..
is
that
that
an
interrupt
one
would
normally
Secondly,
if
the
link
address
points
to
the
beginning
of
this
same
instruc-
tion
(pointing
to
itself)
and
the
CONT
bit
is
set,
endless
execution
of
the
instruction
will
occur.
This
could
be
useful.
The way
to
stop
execution
would
be
to
change
the
opcode
so
that
the
CONT
bit
is
zero.
The
opcode
could
be
changed
to
a
NOP,
or
merely
the
same
opcode
wi
th
the
CONT
bi
t
zeroed.
Ei
ther
the
system
CPU
or
the
MPX
could
change
the
opcode.
DO
NOT
try
to
change
the
link
address
on
the
fly!
.,
Bit
5
is
unused
and
is
really
a
"don't
care"
bit,
but
a good
practice
would
be
to
always
set
this
bit
to
zero.
STATUS
INDICATION
BYTE
This
byte
is
used
to
"handshake"
with
the
MPX
when
the
use
of
a
completion
interrupt
is
not
desired,
or
they
may
be
used
in
conjunction.
This
byte
should
be
set
to
zero
before
an
ATTN
is
sent
to
the
MPX.
When
the
MPX
is
done
executing
the
command,
it
will
set
this
byte
to
FF
hex.
In
a
non-interrupt
environment,
this
byte
should
be
checked
before
another
command
is
sent
to
the
MPX.
If
the
CONT
bit
is
set
in
the
command
opcode,
the
status
byte
for
that
particular
command
will
NOT
be
set
to
FF
hex.
This
means
that
in
a
sequence
of
commands,
only
the
status
byte
in
the
last
command
(the
one
with
CONT
=
0)
will
be
set
to
FF
hex
.
13
