44

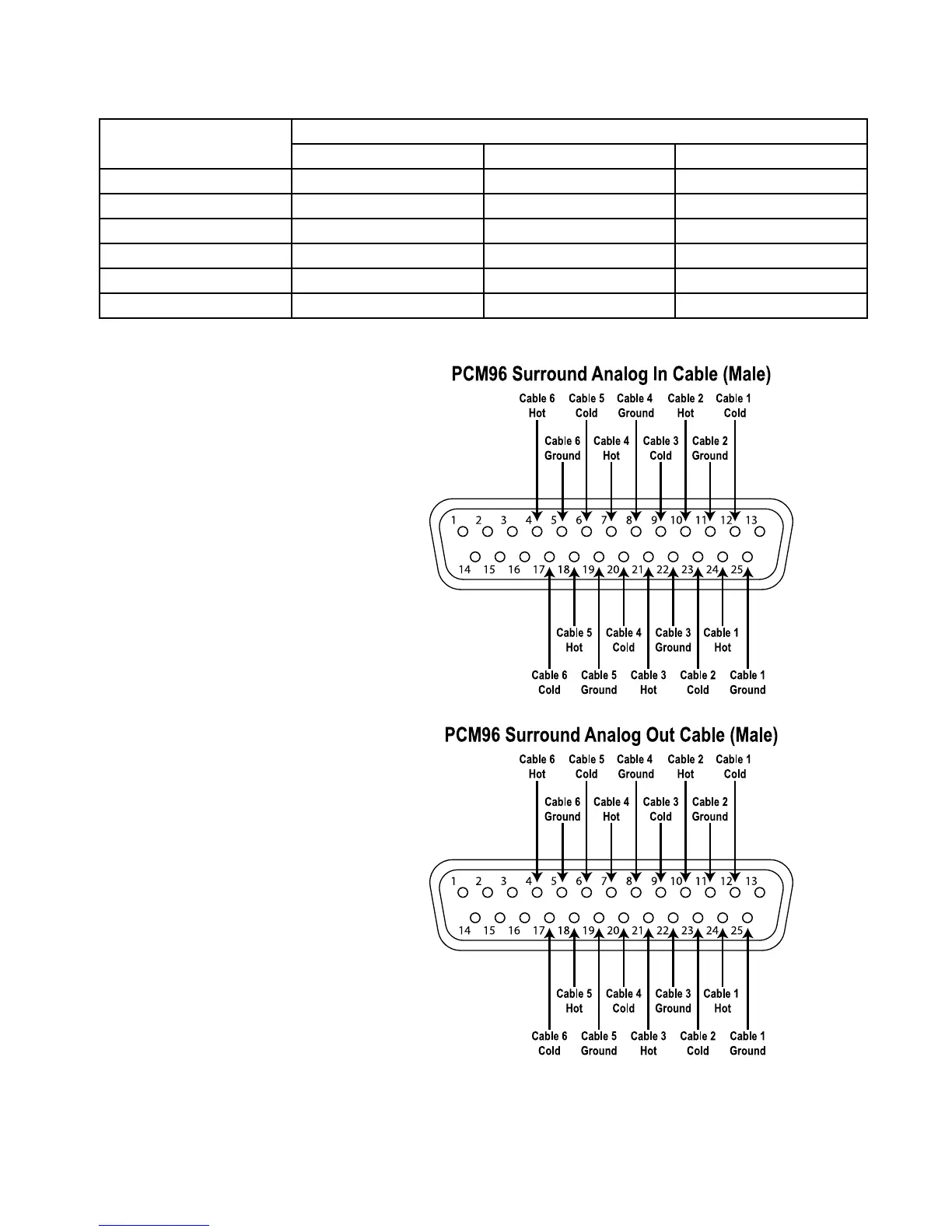

ANALOG DB25 CABLE DIAGRAMS
(INPUT/OUTPUT)
Cable/Channel Number
DB25 Pin Number
Hot Cold Ground
1 24 12 25
2 10 23 11
3 21 9 22
4 7 20 8
5 18 6 19
6 4 17 5
