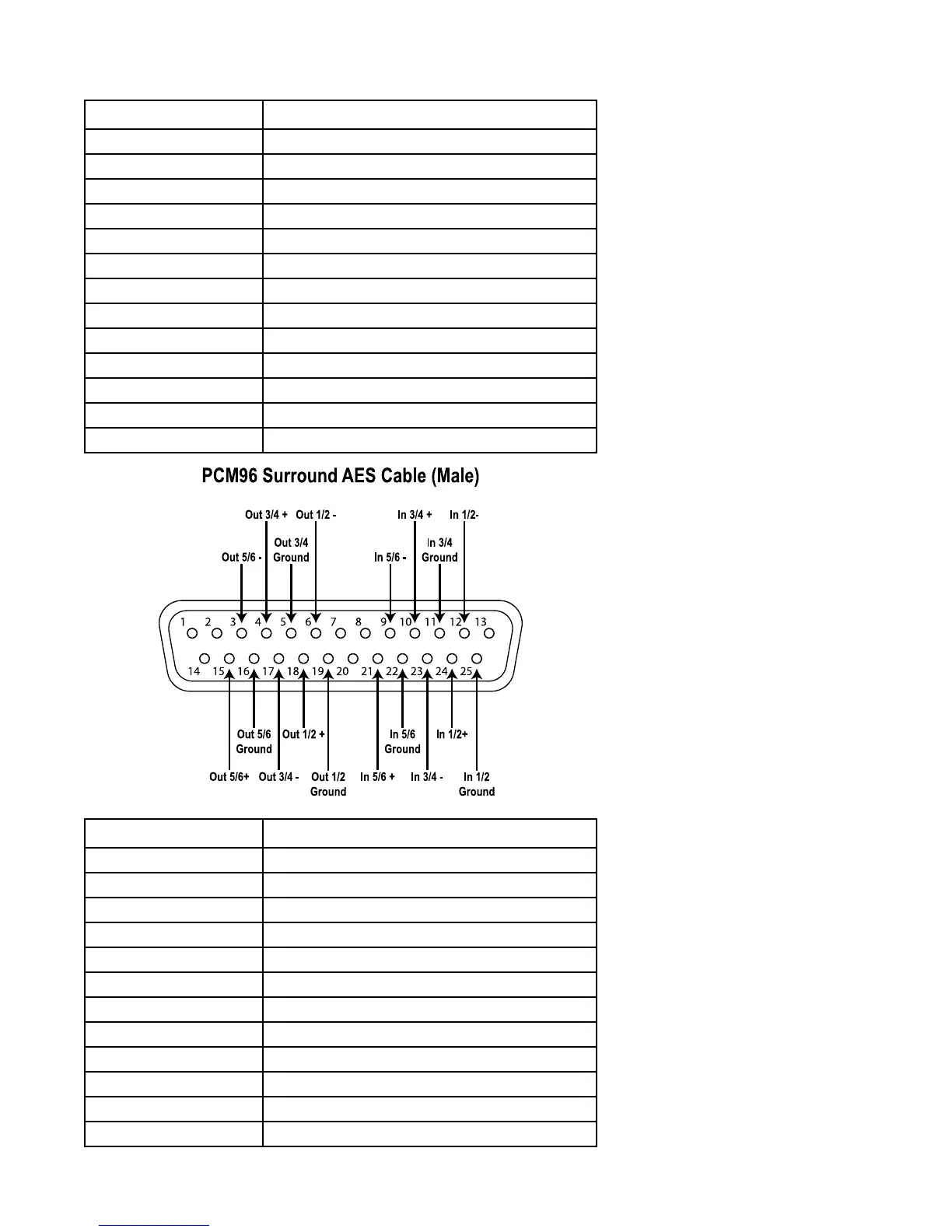

DIGITAL DB25 CABLE DIAGRAM
DB25 Pin PCM96 Surround Channel
1 Not Used
2 Not Used
3 Digital Out 5/6-
4 Digital Out 3/4+
5 Digital Out 3/4 Ground
6 Digital Out 1/2-
7 Not Used
8 Not Used
9 Digital In 5/6-
10 Digital In 3/4+
11 Digital In 3/4 Ground
12 Digital In 1/2-
13 Not Used
DB25 Pin PCM96 Surround Channel
14 Not Used
15 Digital Out 5/6+
16 Digital Out 5/6 Ground
17 Digital Out 3/4-
18 Digital Out 1/2+
19 Digital Out 1/2 Ground
20 Not Used
21 Digital In 5/6+
22 Digital In 5/6 Ground
23 Digital In 3/4-
24 Digital In 1/2+
25 Digital In 1/2 Ground
