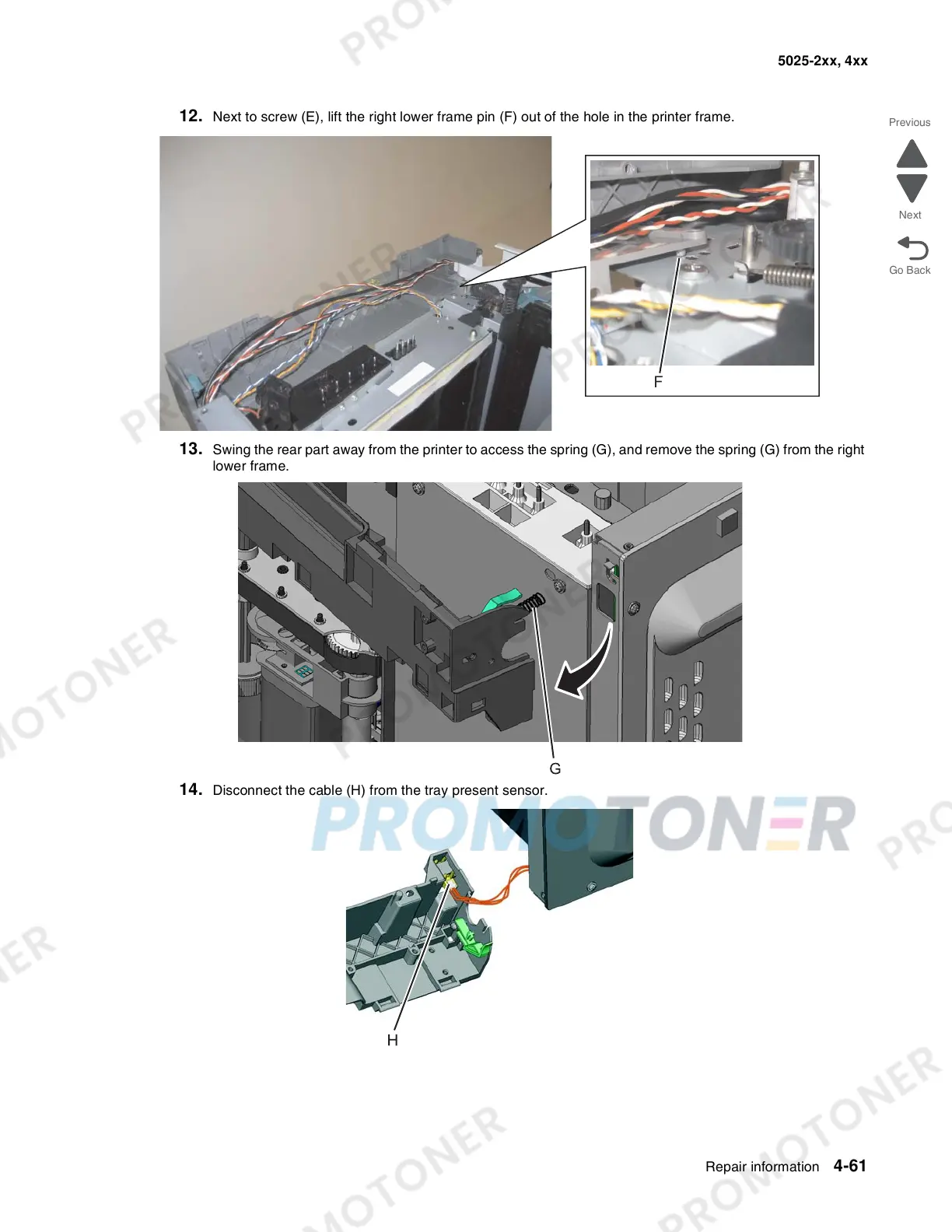

12. Next to screw (E), lift the right lower frame pin (F) out of the hole in the printer frame.
13. Swing the rear part away from the printer to access the spring (G), and remove the spring (G) from the right
lower frame.
14. Disconnect the cable (H) from the tray present sensor.
F
