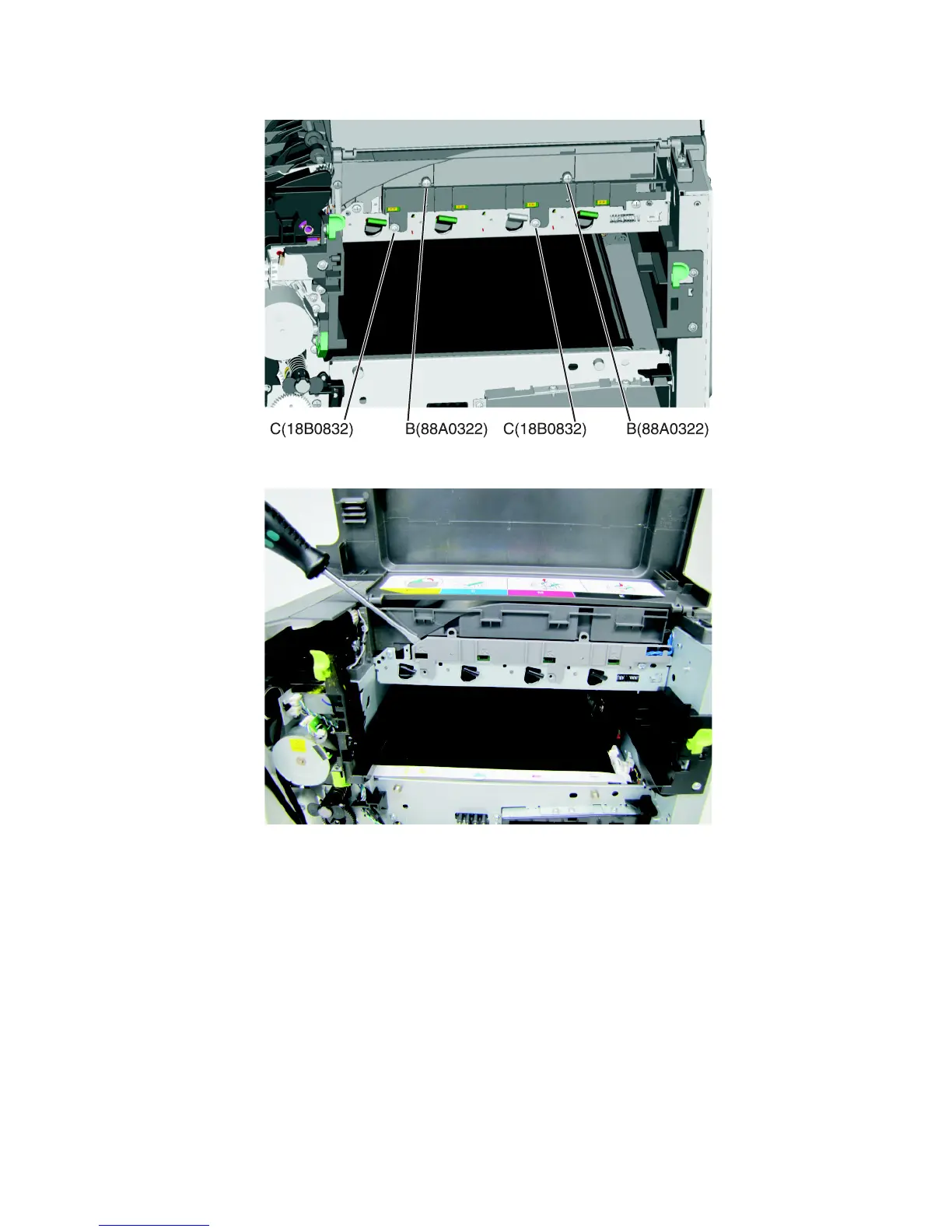

4 Remove the two plastic screws (B), and the two metal screws (C).

5 Slide a flat‑blade screwdriver into the left side of the frame, and pry the card loose to remove.

7527

Repair information

299
