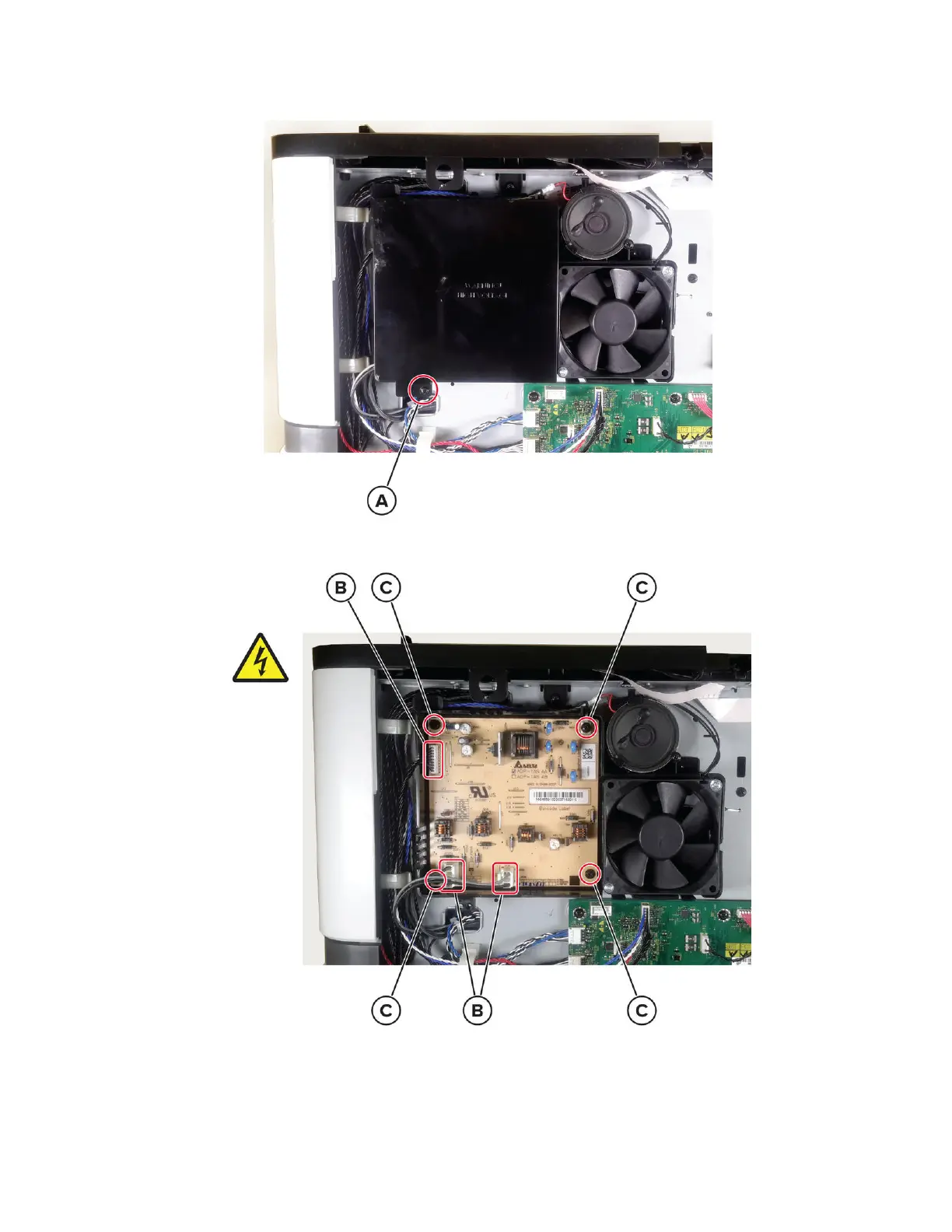

4 Remove the screw (A), and then remove the HVPS shield.
5 Disconnect the three cables (B), remove the four screws (C), and then remove the HVPS.
4064
Parts removal
422
