Lexmark MS610de Service Manual

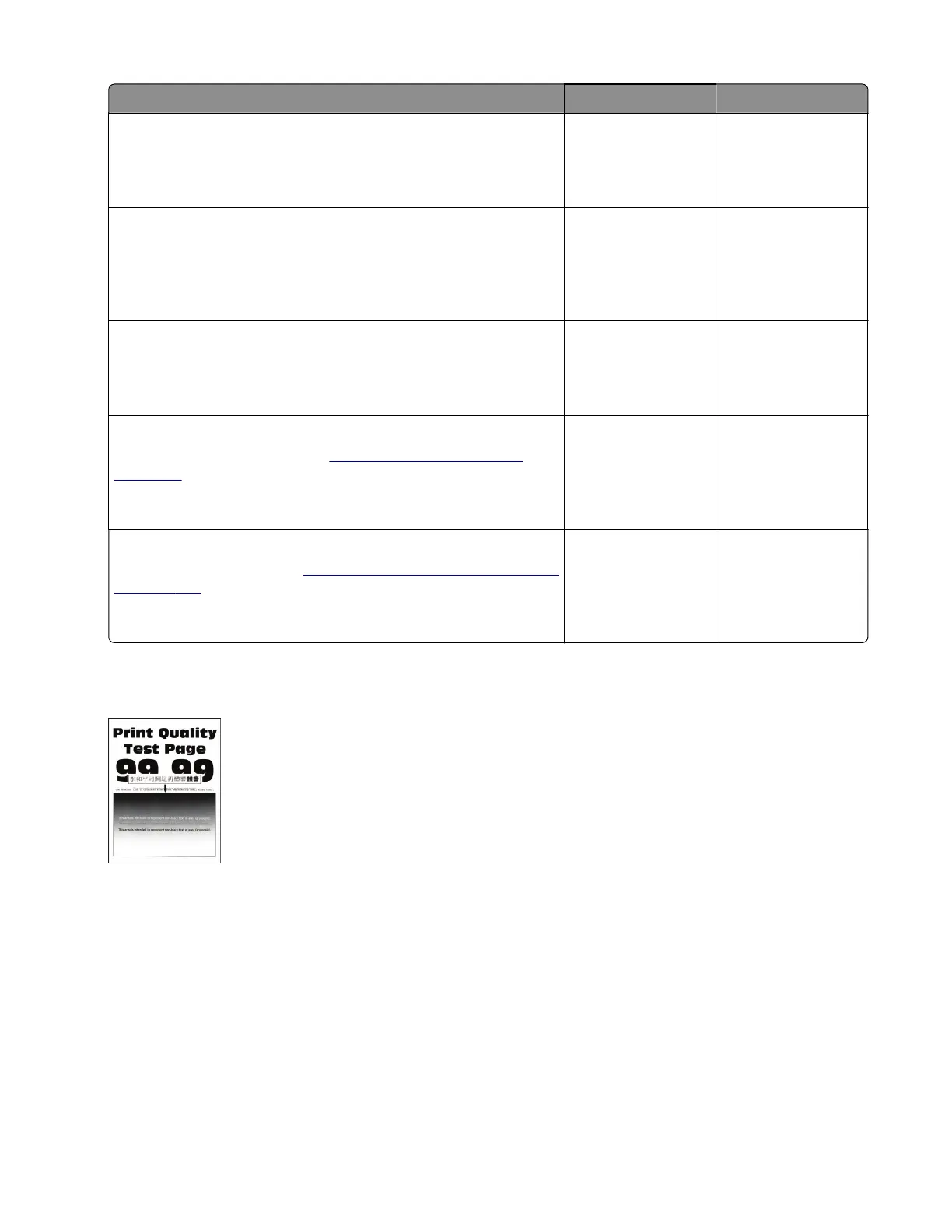

Actions Yes No
Step 9
Clean or repair the imaging unit contacts.
Does the problem remain?
Contact the next
level of support.
The problem is
solved.
Step 10
Check connection JPS1 on the controller board and all the
connections on the power supply.
Are the connections properly connected?
Go to step 12. Go to step 11.
Step 11
Replace the connections.
Does the problem remain?
Go to step 12. The problem is
solved.
Step 12
Replace the power supply. See
“Power supply removal” on
page 289.
Does the problem remain?
Go to step 13. The problem is
solved.
Step 13
Replace the printhead. See
“Laser scanning unit (LSU) removal”
on page 316.
Does the problem remain?
Contact the next
level of support.
The problem is
solved.
Fine lines are not printed correctly
(specifically
Chinese characters) check
4514-6xx
Diagnostics and troubleshooting
71

Lexmark MS610de Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	6.5 s
Print speed (black, normal quality, A4/US Letter)	47 ppm
Duplex print speed (black, normal quality, A4/US Letter)	20 ppm
Security algorithms	802.1x RADIUS, EAP-TLS, EAP-TTLS, LEAP, MD5, PEAP
Printing colors	Black
Country of origin	China
Maximum duty cycle	150000 pages per month
Recommended duty cycle	3000 - 16000 pages per month
Number of print cartridges	1
Page description languages	Microsoft XPS, PCL 5e, PCL 6, PDF 1.7, PostScript 3, PPDS
Internal memory	512 MB
Processor frequency	800 MHz
Maximum internal memory	2560 MB
Sound power level (standby)	15 dB
Sound pressure level (printing)	55 dB
Sound pressure level (quiet mode)	51 dB
Total input capacity	650 sheets
Total output capacity	250 sheets
Maximum input capacity	2300 sheets
Multi-Purpose tray input capacity	100 sheets
Envelopes sizes	7 3/4, 9, 10, DL
Maximum print size	210 x 297 mm
Paper tray media types	Card stock, Envelopes, Labels, Plain paper, Transparencies
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Oficio (media size), Statement (140 x 216mm), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Parallel, Serial (RS-232), Wireless LAN
USB 2.0 ports quantity	3
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion
Linux operating systems supported	Fedora 14, Fedora 15
Other operating systems supported	Novell NetWare 5.x, Novell NetWare 6.x, Novell Open Enterprise Server
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64
Windows operating systems supported	Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Power consumption (off)	0.5 W
Power consumption (standby)	12 W
Power consumption (printing)	640 W
Package weight	18400 g
Networking features	Gigabit Ethernet
Compatible operating systems	SUSE Linux Enterprise Server 10, 11\\r SUSE Linux Enterprise Desktop 10, 11\\r Red Flag Linux Desktop 6.0\\r Linpus Linux Desktop 9.6\\r Debian GNU/Linux 5.0, 6.0\\r Red Hat Enterprise Linux WS 4.0, 5.0, 6.0\\r Ubuntu 11.04, 11.10, 12.04\\r openSUSE 11.3, 11.4, 12.1\\r PCLinuxOS 2011.9\\r Mint 9, 10, 11, 12\\r Sun Solaris SPARC 9, 10\\r HP-UX 11.11, 11.23, 11.31\\r Sun Solaris x86 10, 11\\r IBM AIX 5.3, 6.1, 7.1
Sustainability certificates	ENERGY STAR
Display	LCD
Certification	FCC, CE, SEMKO, UL AR, CS
Non-operating altitude	0 - 2896 m
Storage temperature (T-T)	16 - 32 °C
Operating relative humidity (H-H)	8 - 80 %

Weight and Dimensions

Weight	16200 g
Dimensions (WxDxH)	399 x 396.5 x 306 mm
