Lexmark MS610de Service Manual

# Area Printer control panel
message
What to do
5 Multipurpose
feeder
[x]‑page jam, clear manual
feeder. [250.xx]
Remove all paper from the multipurpose feeder, and
then remove the jammed paper.
6 Front door [x]‑page jam, open front door.
[20y.xx]
Open the front door, then remove the toner cartridge,
imaging unit, and jammed paper.
[x]‑page jam, open front door. [20y.xx]
CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot
component, allow the surface to cool before touching it.

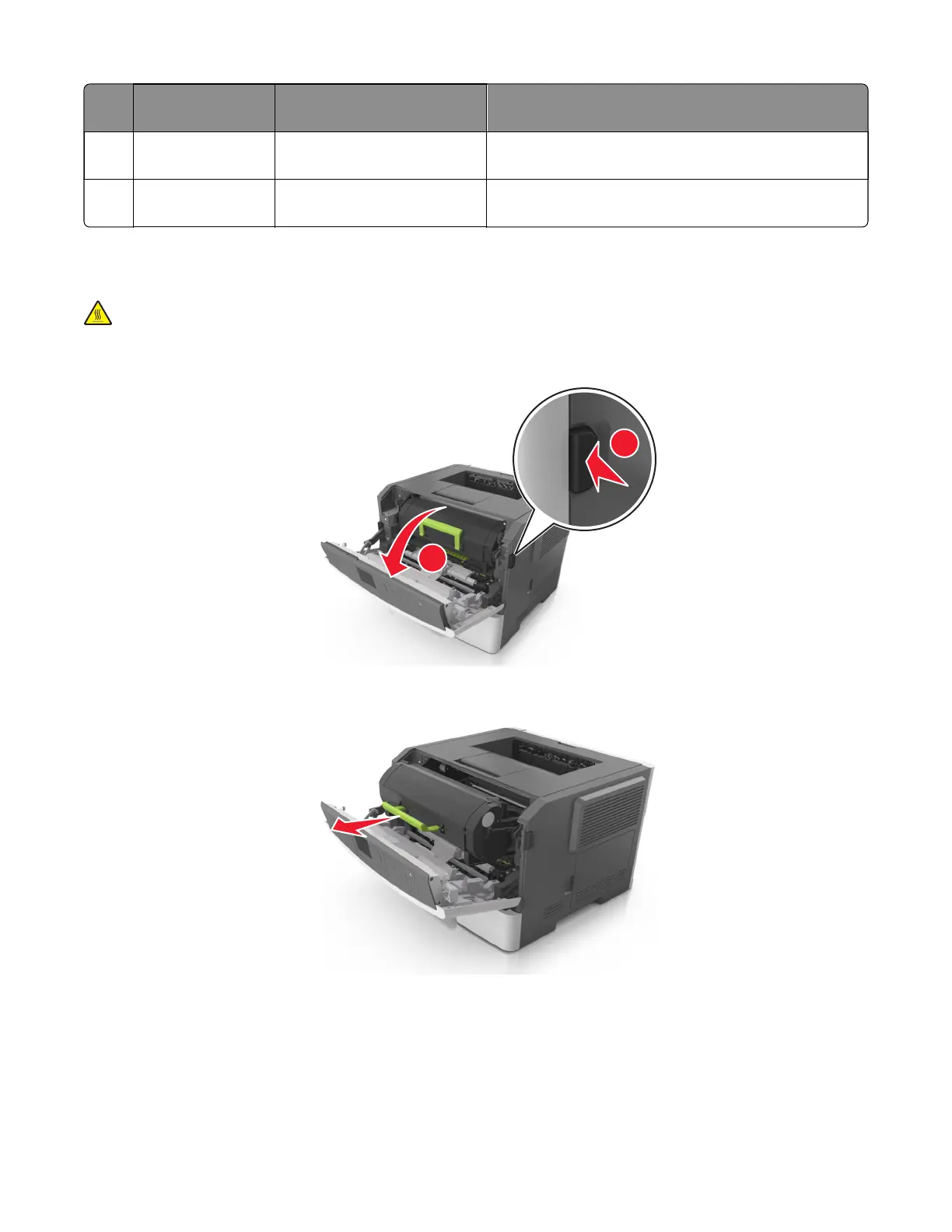

1 Press the button on the right side of the printer, and then open the front door.
2
1
2 Pull the toner cartridge out using the handle.
4514-6xx
Diagnostics and troubleshooting
81

Lexmark MS610de Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	6.5 s
Print speed (black, normal quality, A4/US Letter)	47 ppm
Duplex print speed (black, normal quality, A4/US Letter)	20 ppm
Security algorithms	802.1x RADIUS, EAP-TLS, EAP-TTLS, LEAP, MD5, PEAP
Printing colors	Black
Country of origin	China
Maximum duty cycle	150000 pages per month
Recommended duty cycle	3000 - 16000 pages per month
Number of print cartridges	1
Page description languages	Microsoft XPS, PCL 5e, PCL 6, PDF 1.7, PostScript 3, PPDS
Internal memory	512 MB
Processor frequency	800 MHz
Maximum internal memory	2560 MB
Sound power level (standby)	15 dB
Sound pressure level (printing)	55 dB
Sound pressure level (quiet mode)	51 dB
Total input capacity	650 sheets
Total output capacity	250 sheets
Maximum input capacity	2300 sheets
Multi-Purpose tray input capacity	100 sheets
Envelopes sizes	7 3/4, 9, 10, DL
Maximum print size	210 x 297 mm
Paper tray media types	Card stock, Envelopes, Labels, Plain paper, Transparencies
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Oficio (media size), Statement (140 x 216mm), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Parallel, Serial (RS-232), Wireless LAN
USB 2.0 ports quantity	3
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion
Linux operating systems supported	Fedora 14, Fedora 15
Other operating systems supported	Novell NetWare 5.x, Novell NetWare 6.x, Novell Open Enterprise Server
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64
Windows operating systems supported	Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Power consumption (off)	0.5 W
Power consumption (standby)	12 W
Power consumption (printing)	640 W
Package weight	18400 g
Networking features	Gigabit Ethernet
Compatible operating systems	SUSE Linux Enterprise Server 10, 11\\r SUSE Linux Enterprise Desktop 10, 11\\r Red Flag Linux Desktop 6.0\\r Linpus Linux Desktop 9.6\\r Debian GNU/Linux 5.0, 6.0\\r Red Hat Enterprise Linux WS 4.0, 5.0, 6.0\\r Ubuntu 11.04, 11.10, 12.04\\r openSUSE 11.3, 11.4, 12.1\\r PCLinuxOS 2011.9\\r Mint 9, 10, 11, 12\\r Sun Solaris SPARC 9, 10\\r HP-UX 11.11, 11.23, 11.31\\r Sun Solaris x86 10, 11\\r IBM AIX 5.3, 6.1, 7.1
Sustainability certificates	ENERGY STAR
Display	LCD
Certification	FCC, CE, SEMKO, UL AR, CS
Non-operating altitude	0 - 2896 m
Storage temperature (T-T)	16 - 32 °C
Operating relative humidity (H-H)	8 - 80 %

Weight and Dimensions

Weight	16200 g
Dimensions (WxDxH)	399 x 396.5 x 306 mm
