Lexmark MS812dn User Manual

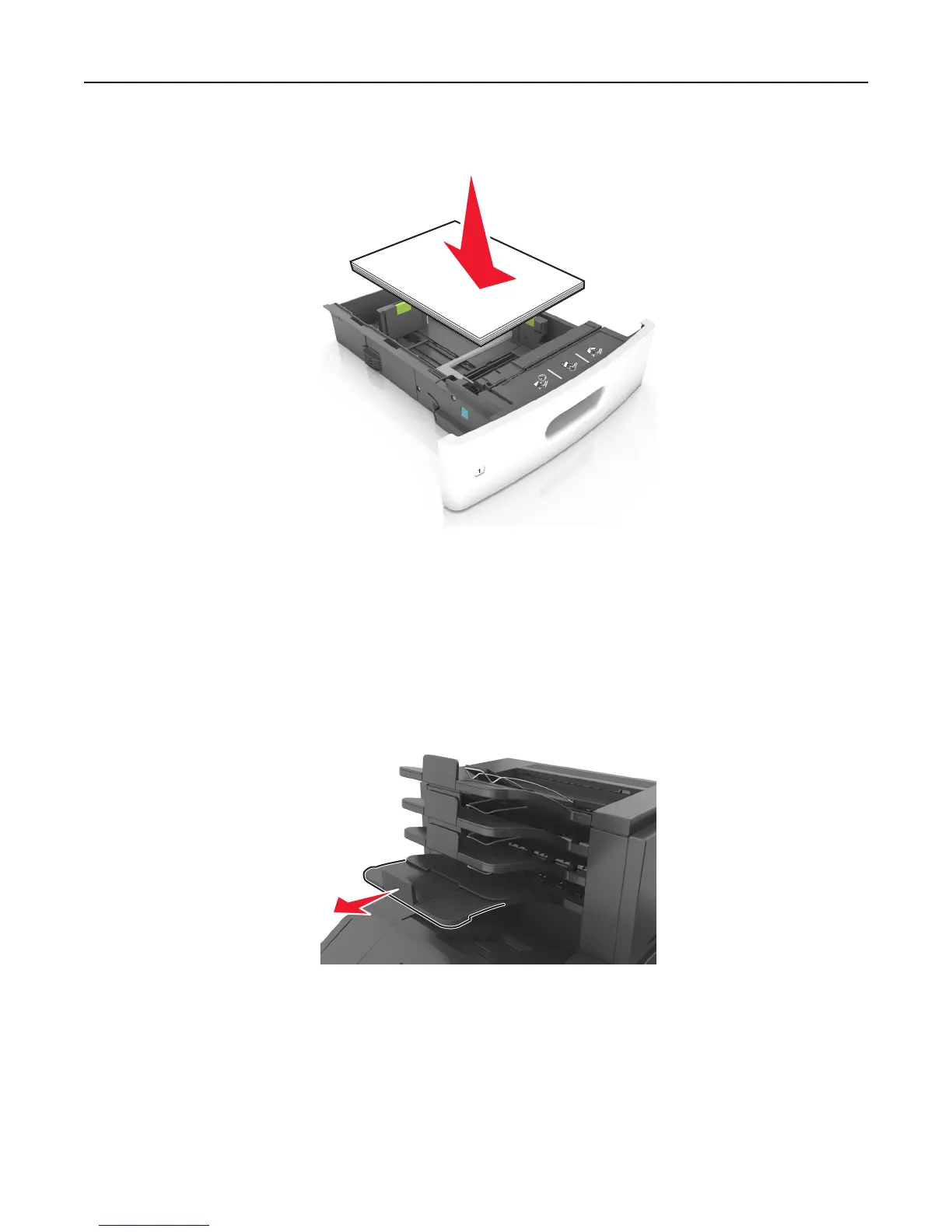

• Do not slide the paper into the tray. Load paper as shown in the illustration.
• Make sure the guides in the tray or the multipurpose feeder are properly positioned and are not pressing tightly
against the paper or envelopes.
• Push the tray firmly into the printer after loading paper.
• If you are loading prepunched paper for use with the staple finisher, then make sure the holes on the long edge of
the paper are on the right side of the tray. For more information, see the “Loading paper and specialty media”
section of the User’s Guide.
Allow the paper to enter the optional mailbox bins properly
• Make sure to adjust the bin extender so that the paper size indicators match the size of the paper used.
Notes:
– If the bin extender is shorter than the size of the paper you are printing on, then the paper causes a jam in
the mailbox bin. For example, if you are printing on a legal-size paper and the bin extender is set to letter-
size, then a jam occurs.
– If the bin extender is longer than the size of the paper you are printing on, then the edges become uneven
and the paper is not stacked properly. For example, if you are printing on a letter-size paper and the bin
extender is set to legal-size, then the paper does not stack properly.
Clearing jams 266

Lexmark MS812dn Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	4 s
Print margins (top, bottom, right, left)	4.2 mm
Print speed (black, normal quality, A4/US Letter)	66 ppm
Duplex print speed (black, normal quality, A4/US Letter)	40 ppm
Security algorithms	802.1x RADIUS, EAP-TLS, EAP-TTLS, LEAP, MD5, PEAP
Supported network protocols (IPv4)	TCP, UDP, AppleTalk, LPR/LPD, Direct IP, FTP, TFTP, ThinPrint, IPP
Printing colors	Black
Country of origin	China
Maximum duty cycle	300000 pages per month
Recommended duty cycle	5000 - 50000 pages per month
Number of print cartridges	1
Page description languages	Microsoft XPS, PCL 5e, PCL 6, PDF 1.7, PostScript 3, PPDS, XHTML
Maximum internal memory	2560 MB
Sound power level (standby)	32 dB
Sound pressure level (printing)	58 dB
Sound pressure level (quiet mode)	53 dB
Total input capacity	550 sheets
Maximum input capacity	4400 sheets
Total number of input trays	2
Maximum number of input trays	6
Multi-Purpose tray input capacity	100 sheets
Envelopes sizes	7 3/4, 9, 10, B5, C5, DL
Maximum print size	216 x 356 mm
Paper tray media types	Card stock, Envelopes, Labels, Plain paper
Paper tray media weight	60 - 176 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Oficio (media size), Statement (140 x 216mm), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Standard interfaces	USB 2.0
Optional connectivity	Parallel, Serial (RS-232), Wireless LAN
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Other operating systems supported	Novell NetWare 5.x, Novell NetWare 6.x, Novell Open Enterprise Server
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64
Power consumption (off)	0.5 W
Power consumption (standby)	4.1 W
Power consumption (printing)	830 W
Package weight	27430 g
Networking features	Gigabit Ethernet
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Compatible operating systems	Windows XP (32/64bit)\\r Windows Vista (32/64bit)\\r Windows 7 (32/64bit)\\r Mac OS X 10.5, 10.6, 10.7, 10.8\\r SUSE Linux Enterprise Server 10, 11\\r SUSE Linux Enterprise Desktop 10, 11\\r Red Flag Linux Desktop 6.0\\r Linpus Linux Desktop 9.6\\r Debian GNU/Linux 5.0, 6.0\\r Red Hat Enterprise Linux WS 4.0, 5.0, 6.0\\r Ubuntu Linux 11.04, 11.10, 12.04\\r openSUSE Linux 11.3, 11.4, 12.1\\r PCLinuxOS 2011.9\\r Mint Linux 9, 10, 11, 12\\r Fedora Linux 14, 15\\r Unix Sun Solaris SPARC 9, 10\\r Unix HP-UX 11.11, 11.23, 11.31\\r Unix Sun Solaris x86 10, 11\\r Unix IBM AIX 5.3, 6.1, 7.1
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Sustainability certificates	ENERGY STAR
Display	LCD
Certification	RAL-UZ, CAN/CSA, ICES, BSMI, CNS, VCCI, FCC, UL, IEC, CE, CB, GS (TÜV), SEMKO, C-tick, CCC, CISPIR, EK, ECMA, TED
Product color	Grey, White
Operating altitude	0 - 2896 m
Operating temperature (T-T)	16 - 32 °C
Operating relative humidity (H-H)	8 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	425 x 510 x 419 mm
