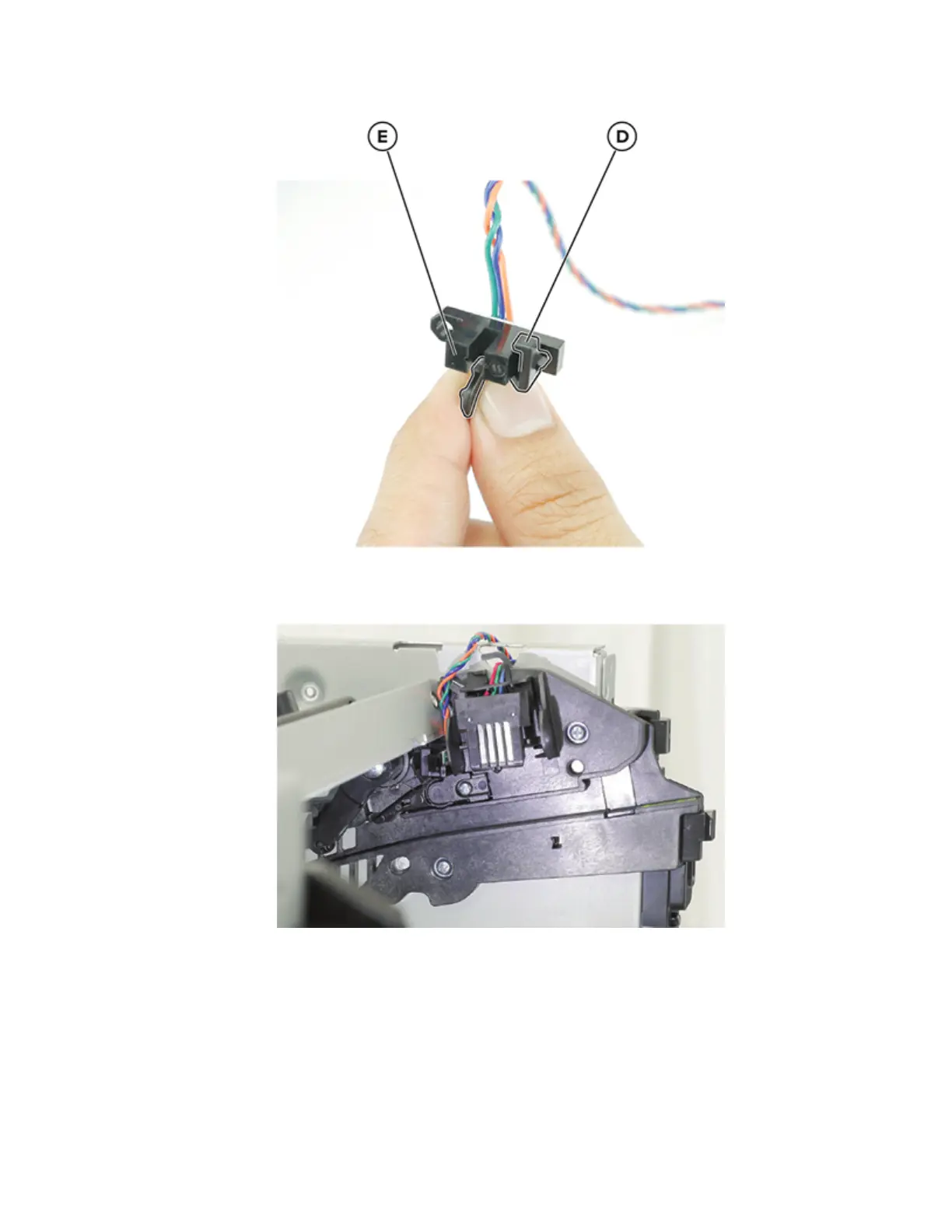

b Install the bracket (D) to the sensor (E) as shown.
c Install the sensor and bracket as shown.
Note: Make sure that sensor is aligned with the actuator.
