Lexmark MX522adhe - Bezel (MX321) Removal; Numeric Keypad Cover (MX321) Removal

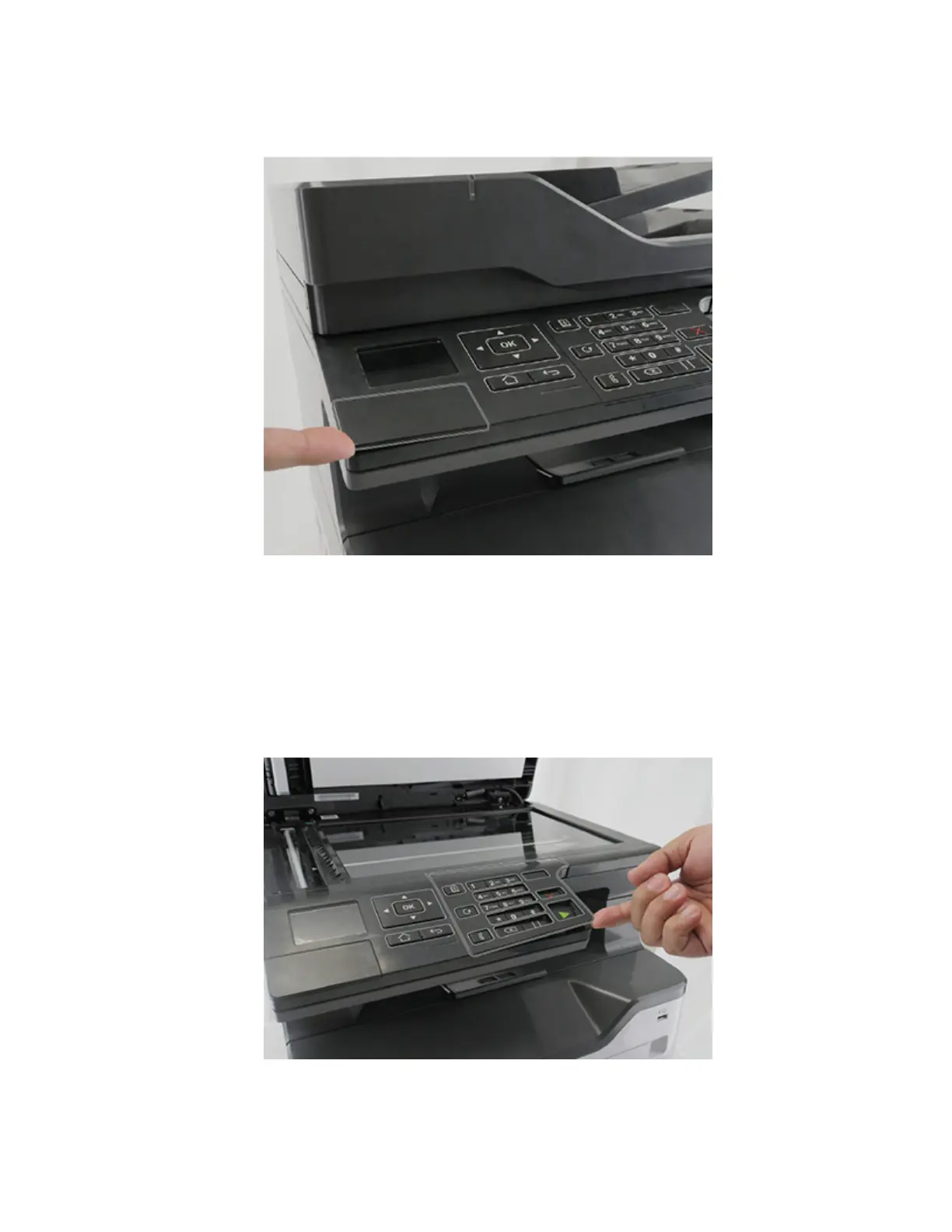

Bezel (MX321) removal
1 Pry the bezel to release.
2 Remove the bezel.
Numeric keypad cover (MX321) removal
1 Open the ADF.
2 Remove the cover.
Note: Detach the lower right corner of the cover
first.
Installation note: When installing the cover, put in place the two latches (A) first.
7017-2xx, -4xx, -6xx
Parts removal
241
