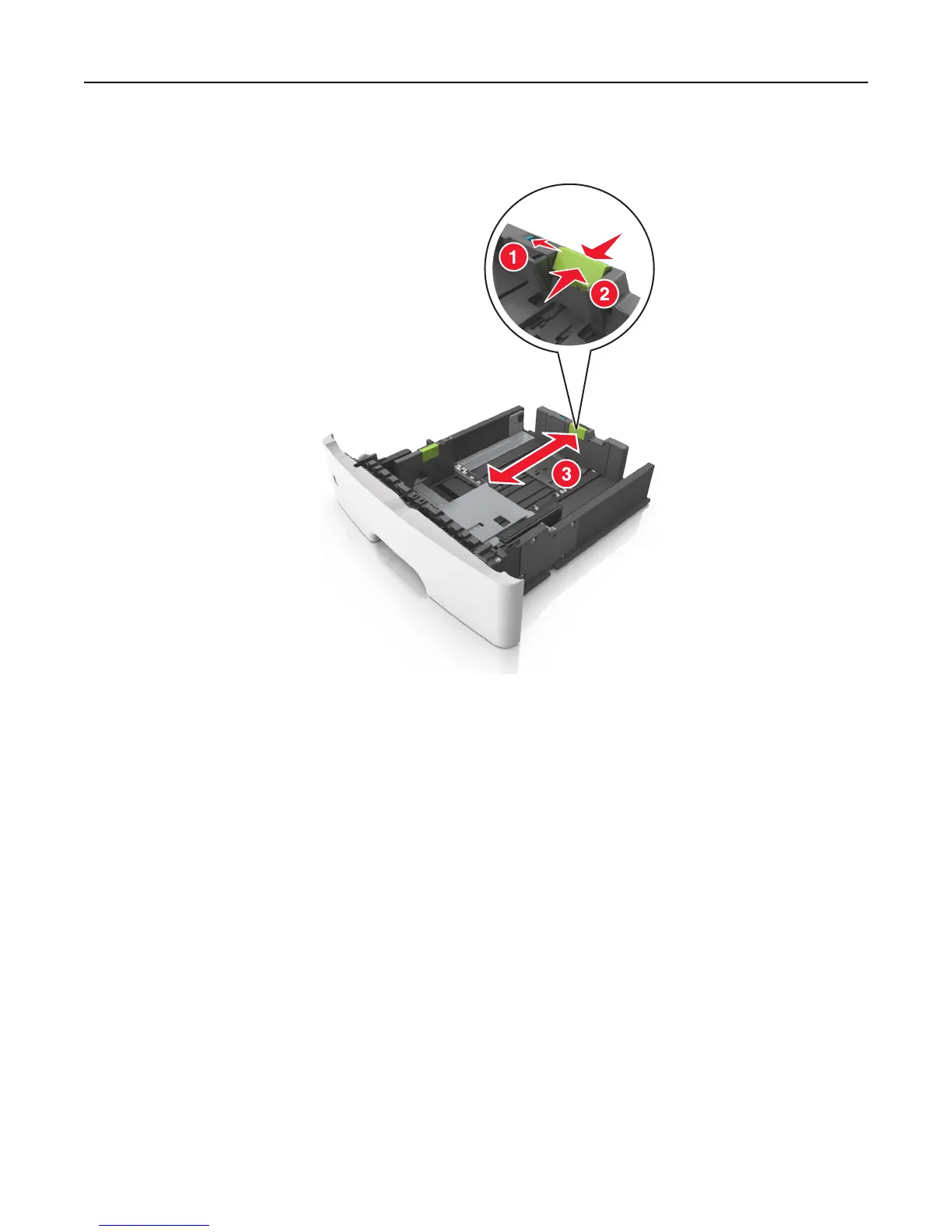

3 Unlock the length guide. Squeeze, and then slide the length guide tab to the correct position for the size of the
paper you are loading.
Notes:
• For some paper sizes like letter, legal, and A4, squeeze, and then slide the length guide tab backward to
accommodate their length.
• When loading legal‑size paper, the length guide extends beyond the base leaving the paper exposed to dust.
To protect the paper from dust, you can purchase a dust cover separately. For more information, contact
customer support.
• If you are loading A6-size paper in the standard tray, squeeze, and then slide the length guide tab toward the
center of the tray to the A6‑size position.
• Make sure the width and length guides are aligned with the paper size indicators on the bottom of the tray.
Loading paper and specialty media 62
