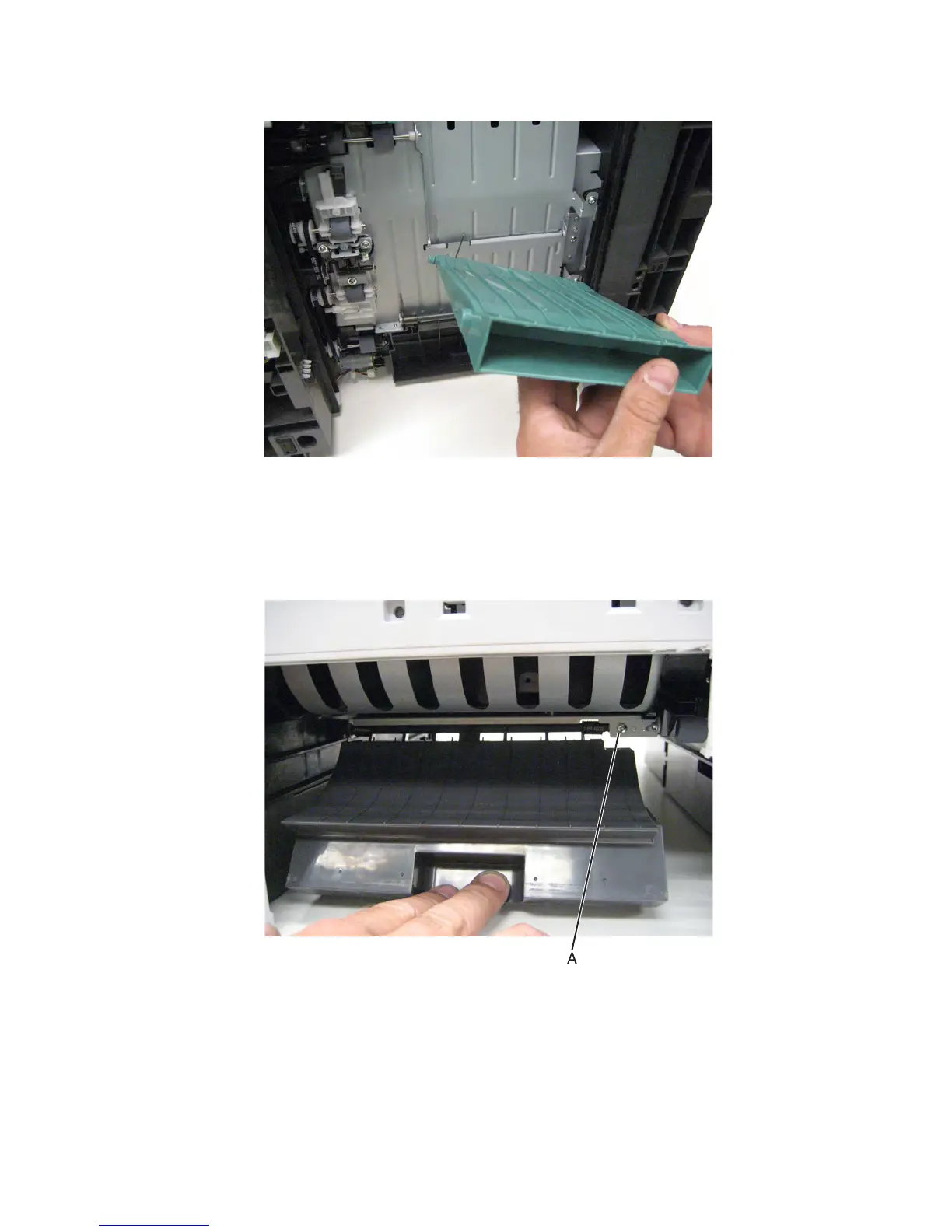

3 Lower the duplex front flap to the angle shown in the following image, and gently detach it from the machine.
Duplex rear flap removal
Warning—Potential Damage: When removing the duplex rear flap, ensure that you retain the attached springs.
1 Press down on the duplex rear flap, and remove the screw (A) securing the bracket to the machine.
7463
Repair information
533
