Lexmark MX71 Series - Page 169

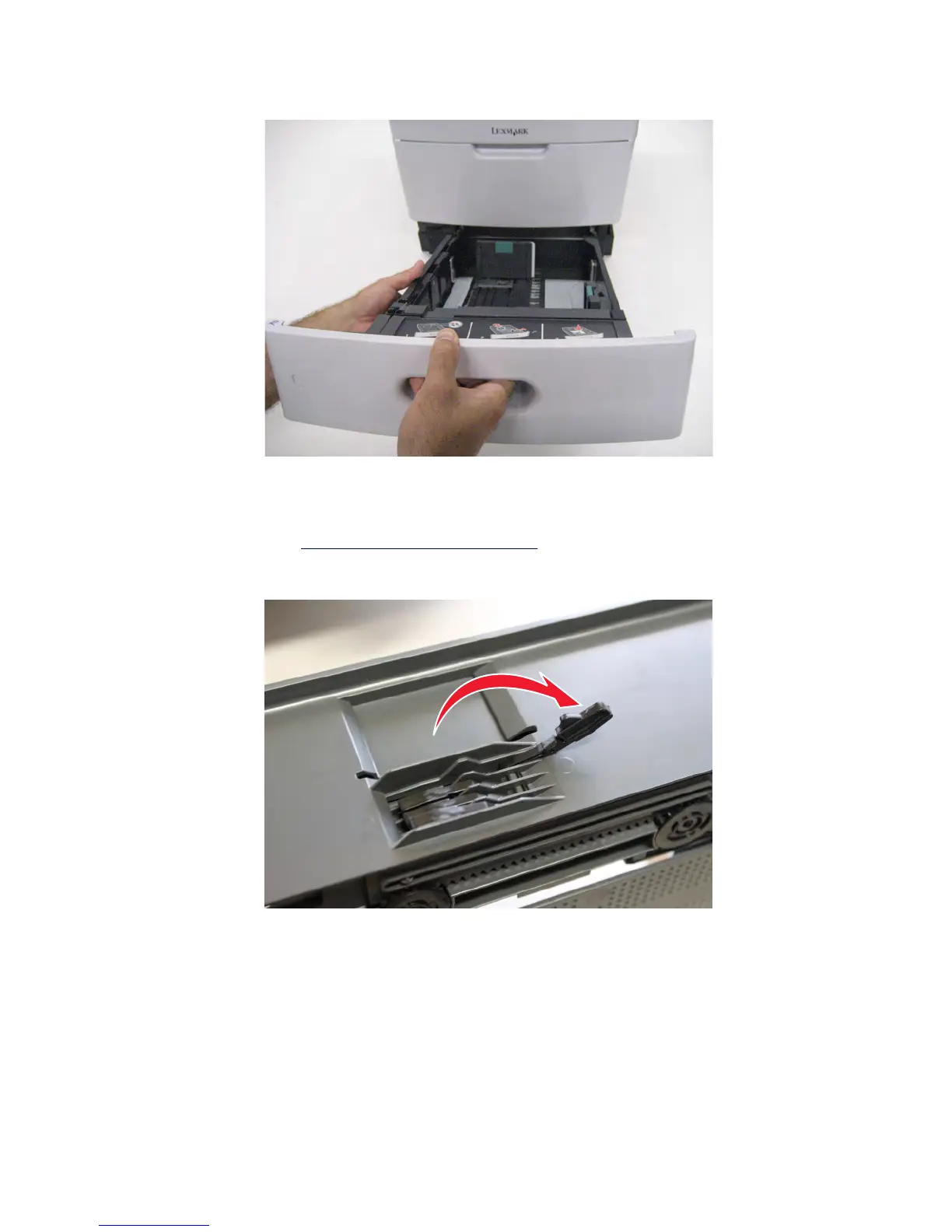

2 Lift the media tray, as shown in the following image, and remove it from the machine.
Media size actuator removal
1 Remove the media tray. See “Media tray removal” on page 538.
2 Pry the free end, and then swing the actuator.
7463
Repair information
539
